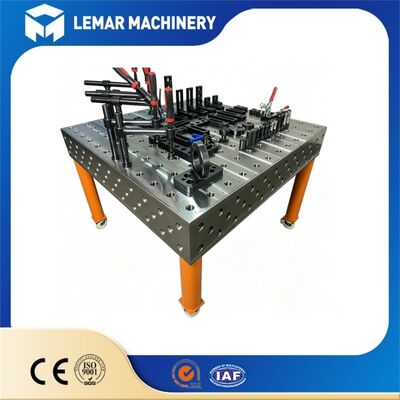

D28 Modular Welding Table with Wheels for Heavy Duty Welding
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25work days |
| Payment Method: | L/C,D/P,D/A,T/T,Western Union |
| Supply Capacity: | 500 units/month |
The D28 Modular Welding Table with Wheels is a heavy-duty industrial work platform designed for large-scale welding and fabrication projects. Built with a 28mm hole system on a 100mm grid pattern, this table delivers exceptional precision, strength, and flexibility for demanding workshop environments.
Equipped with four heavy-duty locking casters, the table can be easily moved around your facility and locked securely in place during operation. The nitrided surface treatment ensures outstanding hardness, wear resistance, and anti-spatter performance, making it ideal for continuous heavy-duty welding work.
| Parameter | Specification |
|---|---|
| Model | D28 Large 3D Welding Fixture Table |
| Table Top Material | Q355 Steel |
| Surface Treatment | Nitrided (Hardness ≥ 60 HRC) |
| Hole Diameter | 28 mm (D28 System) |
| Hole Grid Spacing | 100 mm * 100 mm |
| Flatness Tolerance | ±0.1 mm / m |
| Load Capacity | Up to 5,000 kg (depending on size) |
| Table Thickness | 25 mm |
| Available Sizes | 1500*1000 / 2000*1000 / 2400*1200 / 3000*1500 mm (custom sizes available) |
| Compatible Accessories | D28 clamping bolts, angle brackets, stop blocks, V-blocks, clamping pliers, riser blocks |
| Application | Welding, assembly, positioning, jigging, inspection |
Engineered for heavy steel construction and mechanical engineering, the D28 system supports up to 15 tons of load with minimal deflection. Thick plate construction and reinforced ribbing ensure structural stability even under extreme welding conditions.
The 28mm hole system on a 100mm grid is the global industry standard for heavy-duty welding. It is fully compatible with a wide range of D28 accessories including locking pins, angle brackets, clamps, and positioning blocks, allowing rapid setup changes for different projects.
Four heavy-duty locking casters enable easy relocation of the table anywhere in your workshop. Lock all four wheels to secure the table during precision welding work. No more heavy lifting or crane assistance for repositioning.
The nitrided surface achieves hardness of HV550 to HV650, providing excellent resistance to welding spatter, scratches, and corrosion. This treatment significantly extends table life and reduces maintenance costs.
With flatness tolerance below 0.05mm per meter and positioning accuracy within 0.05mm, this table ensures consistent, high-quality welds across batch production. Repeatable setups save valuable setup time and reduce errors.
The modular design allows fixturing on the top surface as well as all four side edges, giving you five working surfaces in one table. This multi-directional clamping capability supports complex 3D assemblies and vertical welding setups that would be impossible on a standard flat table.
- Heavy Steel Construction – Large structural frames, building components, bridge sections
- Mechanical Engineering – Machine bases, equipment frames, industrial machinery
- Automotive and Transportation – Truck frames, trailer chassis, vehicle components
- Shipbuilding and Marine – Ship hull sections, marine structures, offshore equipment
- Pressure Vessels – Tank fabrication, boiler components, pressure pipe systems
- Heavy Equipment Manufacturing – Construction machinery, mining equipment, agricultural machinery
- Railway and Rail – Rail car components, track structures, bogie frames
A: D28 tables are designed for heavy-duty applications with higher load capacity up to 15 tons and stronger clamping forces. D16 tables are intended for lighter precision work. Choose D28 if you work with thick steel plates, large structures, or heavy components.
A: Yes. Our D28 system follows the industry standard 28mm hole size and 100mm grid spacing, making it fully compatible with all major brand D28 accessories including Siegmund, BuildPro, and other leading manufacturers.
A: Each caster is rated for heavy-duty use. The total load capacity with four casters matches the table rating of 2 to 5 tons for standard models. All casters have locking brakes to secure the table firmly during work.
A: Yes. We can manufacture custom table sizes to fit your specific workshop requirements. Common custom sizes include 1200 by 2400mm, 1500 by 3000mm, and 2000 by 4000mm. Contact us with your specifications for a personalized quote.
A: The nitrided surface is highly resistant to welding spatter and scratches. Simply brush off spatter residue after use. Apply a light coat of rust-preventive oil if the table will be stored for extended periods. No special maintenance is required for daily operation.
A: We offer a 2-year warranty on the welding table structure and accessories. Our technical support team is available to assist with any questions during and after the warranty period.
Stop wasting hours on makeshift fixtures and rework. The D28 Modular Welding Table with Wheels pays for itself through faster setup times, higher precision, and reduced labor costs.
