D16 3D Flexible Welding System with Standard 16mm Fixture Components
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200 |
| Delivery Period: | 15-25 work days |
| Payment Method: | Western Union,T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |

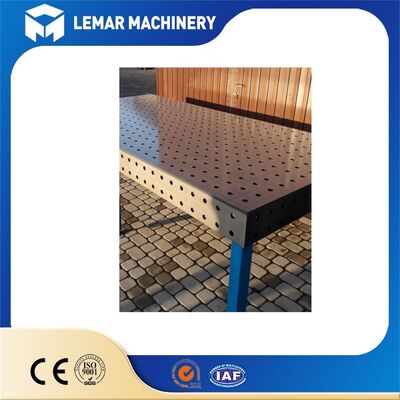

The D16 3D Flexible Welding Table with Standard 16mm Fixture Components is a modular precision fixturing solution built on a 50×50mm φ16mm hole grid. Designed for flexible 3-dimensional assembly and welding, this five-sided welding platform supports fixture installation on the top surface and four vertical sides.
Matched with complete interchangeable standard 16mm fixture components, it enables rapid reconfiguration to clamp diverse small and medium-sized workpieces, eliminating the need for costly custom jigs. Ideal for multi-variety, small-batch metal fabrication, robotic welding cells and prototype manufacturing.
| Item | Parameters |
|---|---|
| Product Name | D16 3D Flexible Welding System with Standard 16mm Fixture Components |
| Hole Diameter | Φ16 mm |
| Grid Pitch | 50 × 50 mm |
| Working Surface Flatness | ≤0.1 mm / 1000 mm |
| Uniform Load Capacity | 2 Ton / ㎡ |
| Standard Available Sizes (mm) | 1000×1000/1200×800/1500×1000/1200×1000/2000×1200/2400×1200/1500×3000mm |
All accessories adopt standard D16 welding table, fully interchangeable with international D16 systems:
- Quick ball lock bolts (main fasteners)
- Positioning squares, right-angle brackets & adjustable angle blocks
- Flat stops, V-blocks, support blocks & extension spacers
- Vertical & horizontal welding clamps, cantilever clamps
- Connection blocks for multi-table expansion
- Height adjustment pads & leveling supports
- Five-sided 3D structure: The top surface and four sides are all machined with D16 mesh holes for seamless clamping.
- Bottom reinforcing rib structure: Finite element optimized design ensures stable bending performance under uniformly distributed loads.
- Laser-engraved metric scale: Around the tabletop for easy on-site layout mapping.
- Countersunk hole design: Protects locking pins and prevents impact damage; smooth inner walls ensure smooth clamp insertion and removal.
Two Material Options Available:
Q355 steel welding table: Lightweight and cost-effective, suitable for general precision welding applications.
HT300 cast iron table: Better shock absorption and less heat deformation, suitable for long-term continuous welding and robotic welding stations.
- Daily: Cleanup of welding slag and spatter; avoid placing hot workpieces directly on the worktable.
- Weekly: Clean debris from positioning holes, inspect moving parts of fixtures, and apply anti-rust grease.
- Monthly: Wipe the worktable and apply a thin layer of anti-rust oil; shorten the anti-rust cycle in humid environments.
- Annual: For long-term high-precision batch production, re-measure the flatness of the welding worktable.
Maximize production flexibility and eliminate repeated investment in custom jigs with the D16 3D Flexible Welding System with Standard 16mm Fixture Components.
Share your processing needs, workpiece sizes and expected fixture configuration with us. We are ready to offer competitive pricing and comprehensive technical support.
Submit your inquiry today!
