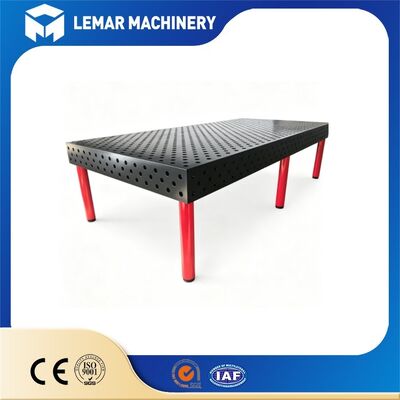

D28 100x100mm Grid Holes Welding Table for Accurate Fixture Setup
Our D28 100x100mm Grid Holes Welding Table is built on the global standard D28 modular system, engineered for fast and accurate fixture setup in metal fabrication and welding workshops. Equipped with Φ28mm precision locating holes arranged on a 100×100mm orthogonal grid, this 3D welding table supports full 5-sided clamping, enabling flexible assembly of custom jigs without costly one-off tooling. Manufactured with strict stress relief and CNC precision machining, the table maintains reliable flatness and positioning consistency for manual welding and robotic welding stations. Choose Q355 steel or HT300 cast iron structure with optional nitrided surface to resist welding spatter, abrasion and corrosion, ideal for heavy structural parts, vehicle frames and large metal assemblies.
Standard Dimensions - D28 100x100mm Grid Holes Welding Table
| No. | Size (Length × Width) | Worktop Material | Standard Working Height |
|---|---|---|---|
| 1 | 1000 mm × 800 mm | Q355B steel / HT300 cast iron | 750mm (equipped with adjustable leveling feet) |
| 2 | 1200 mm × 800 mm | Q355B steel / HT300 cast iron | 750mm (equipped with adjustable leveling feet) |
| 3 | 1000 mm × 1000 mm | Q355B steel / HT300 cast iron | 750mm (equipped with adjustable leveling feet) |
| 4 | 1500 mm × 1000 mm | Q355B steel / HT300 cast iron | 750mm (equipped with adjustable leveling feet) |
| 5 | 2000 mm × 1000 mm | Q355B steel / HT300 cast iron | 750mm (equipped with adjustable leveling feet) |
| 6 | 2400 mm × 1200 mm | Q355B steel / HT300 cast iron | 750mm (equipped with adjustable leveling feet) |
| 7 | 3000 mm × 1500 mm | Q355B steel / HT300 cast iron | 750mm (equipped with adjustable leveling feet) |
| 8 | 4000 mm × 2000 mm | Q355B steel / HT300 cast iron | 750mm (equipped with adjustable leveling feet) |
