Multi-sided Fixturing D28 3D Modular Nitrided Steel Welding Table
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Thickness:
25mm
Diameter:
28mm
Exporting Country:
The Whole World
Countertop Material:
Q355 Steel/ Ht300 Cast Iron/Stainless Steel
Model NO:
D28
Payment Currency:
Dollar
Flatness:
≤0.1mm/1000mm
Verticality:
≤0.1mm/200mm
Customization Capabilities:
Supports Customization/MultipleUnits Splicing
Product Description

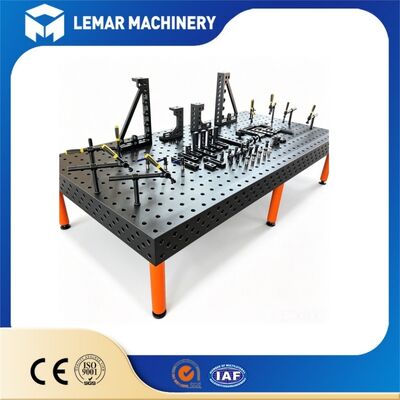

Multi-sided Fixturing D28 3D Modular Nitrided Steel Welding Table
This D28 3D Modular Welding Table features precision-machined holes on all five working surfaces — the top tabletop plus four vertical side edges — enabling true multi-directional fixturing. Set up clamps, stops, and angle brackets from any side without flipping or repositioning heavy workpieces. The nitrided steel surface delivers long-lasting durability, while the D28 hole system provides the heavy clamping force needed for large structural weldments.
Product Parameters
| Parameter | Specification |
|---|---|
| Grid System | D28 - 28mm holes on 100mm centers |
| Hole Tolerance | H7 precision |
| Tabletop Material | HT300 gray cast iron / Q355 steel |
| Tabletop Thickness | 100mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 5,000 kg per table |
| Standard Sizes | 1500×1000, 2000×1000, 3000×1500mm |
| Leg Height | 850mm (custom heights available) |
| Leg Construction | 80×80mm square tube, 5mm wall |
| Leveling Feet | M24 threaded, 50mm pad |
Product Sizes
| System | Material | Size(mm) | Weight(kg) |
|---|---|---|---|
| D28/D16 | HT300 cast iron/Q355 steel | 1000*1000*200/150 | 300 |
| D28/D16 | HT300 cast iron/Q355 steel | 1000*2000*200/150 | 520 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*1200*200/150 | 400 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*2400*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1000*200/150 | 420 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1500*200/150 | 600 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*2000*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*3000*200/150 | 1150 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*3000*200/150 | 1500 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*4000*200/150 | 2100 |
Product Advantages
- Five-Sided Multi-directional Fixturing
CNC machined holes on the tabletop and four vertical edges allow clamping from all angles. Frequent workpiece flipping and crane relocation are avoided, significantly cutting fixture setup time for complex structural weldments. - Heavy-Duty D28 Standard Hole System
The D28 hole grid works with a complete range of heavy-duty accessories. Larger positioning assemblies provide strong clamping force, ideal for thick plates, heavy machine frames and large steel structure welding. - Durable Deep Nitrided Tabletop
The surface undergoes integral nitriding treatment and reaches hardness HRC 58-62. It effectively resists welding spatter, friction abrasion and thermal deformation, sustaining flatness and machining precision during long-term intensive operation. - Modular and Freely Splicable Design
Individual tables can be connected to build oversized working stations. Flexible layout accommodates workpieces of various dimensions, supporting workshop capacity expansion and diversified production requirements.
Product Applications
- Complex structural frames requiring multi-angle welding
- Box beam and tubular structure fabrication
- Heavy equipment chassis and base frames
- Shipyard and offshore component welding
- Precision jig and fixture building
- Prototype and low-volume production with frequent changeovers
Customer Feedback
Shipping and Delivery
Frequently Asked Questions
1. What's the difference between D28 and D16/D22?
D28 uses 28mm holes with 100×100mm grid. Designed for heavy-duty welding - higher load capacity (5 tons/m²) and better rigidity for thick plates and large workpieces.
2. Can you customize non-standard sizes or hole patterns?
Yes. Custom table sizes, hole layouts, and surface treatments are available. Send your drawings or specs, and our engineering team will design accordingly.
3. What accessories are compatible?
Full range of D28-standard accessories: clamps, V-blocks, supports, locating pins, angle plates, and adjustable brackets. All interchangeable with no special tools required.
4. How to maintain flatness over long-term use?
Stress-relieved ductile iron with HB 180-220 hardness. Keep clean, avoid local overloading. Re-machining service is available to restore precision if needed.
5. What is lead time and packaging?
Standard lead time: 15-30 working days. Packed in heavy wooden crates with anti-rust oil, VCI paper, and foam padding. Sea/air/courier shipping with full customs documentation.
6. Do you provide installation and after-sales support?
Yes - remote video guidance, online technical support, and on-site service (on request). 12-month warranty and fast reordering based on purchase history.
