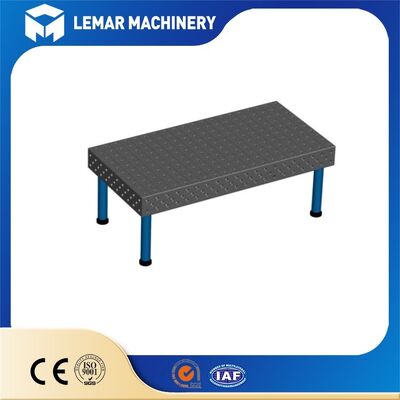

High Performance D28 3D Welding Table for Multi-Shift Factory Production
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,Western Union,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Diameter:
Φ28mm
Grid Pitch:
100mm × 100mm
Machining Surface:
5-sided Fully Machined
Material Option:
S355J2+N High Strength Steel / HT300 Grey Cast Iron
Surface Treatment:
Nitriding
Plate Thickness:
25mm (Standard); 28mm / 30mm Optional
Flatness Accuracy:
≤0.1mm/1000mm
Customization:
Custom Size / Height Available
Grid Diagonal Tolerance:
≤0.05mm/m
Product Description
High Performance D28 3D Welding Table for Multi-Shift Factory Production
Our High Performance D28 3D Welding Table for Multi-Shift Factory Production delivers reliable high rigidity and long-lasting precision dedicated to multi-shift industrial fabrication. With five-sided machining and standardized D28 hole system, the nitrided work surface resists weld spatter adhesion and impact. Ideal for chassis, construction machinery and heavy steel part production, this 3D welding table enables fast fixture rearrangement, supports unlimited splicing and works well with automated robotic welding cells. Maximize workshop efficiency and reduce batch production rework for your continuous operation.
D28 3D Welding Table Specifications
| Item | Specification Details |
|---|---|
| Hole System | D28, Φ28 mm hole, 100 mm × 100 mm grid pitch |
| Machining Surface | 5-sided fully machined (Top + Four Vertical Sides) |
| Standard Working Height | 800 mm (Custom 700/750/900 mm available) |
| Available Standard Sizes (L × W, mm) | 1000×1000 / 1200×1200 / 1500×1000 / 2000×1000 / 2000×1500 / 3000×1500 / 4000×2000 Custom dimensions supported |
| Worktop Material | Option 1: S355J2+N High Strength Steel Option 2: HT300 Grey Cast Iron |
| Plate Thickness | 25 mm (Standard); 28 mm / 30 mm Heavy-duty optional |
| Flatness Tolerance | ≤0.1 mm / 1000 mm |
| Hole Position Tolerance | ±0.03 mm |
| Verticality of Side Face | ≤0.1 mm / 200 mm |
| Standard Leg Accessory | Heavy-duty support legs + adjustable leveling feet |
Core Advantages
- Long-term precision retention: Resistant to deformation over time. The raw casting undergoes a dual stress-relief process—annealing followed by natural aging—enabling it to withstand 16-24 hours of continuous heat exposure and repeated clamping impacts daily. The table surface remains flat during long-term batch production, ensuring consistent product dimensions.
- Wear-resistant nitrided surface: Significantly reduced grinding and maintenance. The nitrided hardened surface prevents welding spatter from adhering firmly, reducing the cleanup workload for workers. Unlike standard painted tables, this system supports years of continuous production without the need for frequent surface refinishing.
- Modular, flexible tooling: Rapid production changeovers. Compatible with a full range of standard accessories: locating pins, L-shaped supports, angle blocks, quick-acting clamps, and support blocks. No need to weld custom fixtures for new products; tooling can be reconfigured in 15-40 minutes, making it ideal for factories handling high-mix, rotating production schedules.
- 3D, five-sided clamping: Single-setup positioning for complex workpieces. Chassis, frames, heavy machinery structural components, and box-type parts can be secured both laterally and vertically simultaneously. This minimizes the need to flip the workpiece and boosts output on multi-shift production lines.
- Universal system: Globally interchangeable accessories. The D28 welding table adheres to mainstream European and American standards for heavy-duty welding tooling. Fixtures are interchangeable with major international brands, simplifying spare part procurement for overseas factories.
- High-rigidity structure: Minimizes welding deformation. Featuring a heavy-duty table surface and closely spaced reinforcing ribs, the system ensures minimal workpiece displacement during welding after clamping. This reduces rework rates and meets stringent quality control requirements for mass production.
Customer Reviews
After-Sales Policy
Warranty Coverage
We provide 2 years warranty for the main body of the High Performance D28 3D Welding Table under standard operating conditions. The warranty covers manufacturing defects on table structure, machining accuracy and raw materials.
Items NOT Covered by Warranty
- Damage caused by improper installation, unlevel placement and overloading
- Deformation, pits or abrasion from heavy impact, hammer striking, free-falling heavy goods
- Surface nitriding layer damage due to direct plasma cutting / flame cutting on the tabletop
- Normal wear of clamping accessories, locating pins and adjustable feet
- Damage from unauthorized modification, disassembly or poor daily maintenance
The High Performance D28 3D Welding Table for Multi-Shift Factory Production delivers consistent precision and long service life for multi-shift heavy-duty fabrication.
Whether you need a single table or a whole robotic welding workstation setup, we are ready to offer tailored solutions.
Please contact us for catalog, pricing and further technical details. We look forward to your inquiry.
