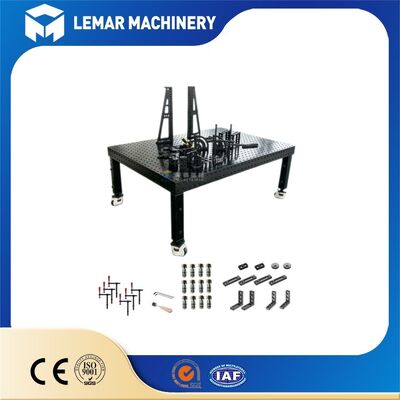

D16 Precision Welding Table for Small to Medium Workpieces
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole System:
D16 (Φ16mm)
Grid Pitch:
50×50 Mm
Hole Tolerance:
D10 (Φ16.065~16.149 Mm)
Structure:
Five-sided Drilled, Integral Reinforced Frame
Standard Table Height:
150 Mm
Tabletop Thickness:
12mm
Standard Material:
Stress-relieved Q355J2+N Steel
Optional Material:
HT300 Cast Iron
Flatness:
≤0.1 Mm / 1000 Mm
Product Description
D16 Precision Welding Table for Small to Medium Workpieces
Tired of slow fixture setup and inconsistent dimensional accuracy when fabricating light and medium workpieces? The D16 Precision Welding Table for Small to Medium Workpieces offers a complete modular 3D welding solution optimised for precision metal fabrication.
Featuring a φ16mm hole pattern on a tight 50×50mm grid, the table supplies far more mounting positions compared with D28 systems, perfect for delicate thin plates, aluminum frames and tubular components. All five working faces are precisely milled to support multi-angle clamping. With high flatness and durable nitrided surface finish, it maintains stable accuracy for years. Replace costly dedicated jigs, slash changeover time and boost welding repeatability for your small-to-medium workpiece projects.
Standard Dimensions
We supply multiple standard sizes of D16 3D flexible welding tables. All tables adopt 50×50mm dense grid and Φ16mm hole system. 3D five-sided precision machining ensures reliable 3-dimensional clamping. Custom dimensions, different table heights and cast iron versions are acceptable.
| Working Size (L×W mm) | Table Height (mm) | Approx. Net Weight (kg) | Evenly Distributed Static Load |
|---|---|---|---|
| 1000 × 500 | 150 | 95 | 1500 kg |
| 1000 × 1000 | 150 | 175 | 2000 kg |
| 1200 × 800 | 150 | 182 | 2200 kg |
| 1500 × 1000 | 150 | 265 | 2800 kg |
| 2000 × 1000 | 150 | 340 | 3500 kg |
| 2400 × 1200 | 150 | 465 | 4000 kg |
Product Core Features
- Dense Grid = Excellent Adjustment Capability: The dense 50mm grid provides more clamping points for small and irregularly shaped parts, solving the problem of deformation during thin-plate welding.
- High Capital Utilization: Compared to custom-made welding fixtures, a one-time investment allows for long-term reuse, significantly reducing fixture manufacturing costs for multi-variety production.
- Fast Changeover: New product fixture setup typically takes 10-30 minutes, while traditional fixture processing cycles often reach 7-15 days.
- Lands-Friendly Design: For the same workspace, the D16 welding table is lighter than the D28 welding table, making it easier to arrange in small workshops and robot workstations with limited space.
- Lower Component Procurement Costs: The price of a complete D16 fixture set is generally lower than that of D28 components of the same specifications.
Typical Applicable Workpieces
- Sheet metal chassis, cabinets, medical device frames
- Stainless steel pipe fittings, aluminum alloy structures, door and window frames
- Small racks for automated equipment, new energy vehicle components
- Small parts for construction machinery, motorcycle/electric vehicle components
- Non-standard equipment prototypes, maker space, customized metal crafts
- Precision tooling bases for automated robot welding
Not recommended for: thick steel plates, heavy-duty vehicle frames, ultra-large steel structures, and situations requiring huge single-point clamping forces (D28 welding station is preferred)
FAQ
Are support legs, casters and fixture kits optional?
Yes. Adjustable support feet, mobile brake casters and complete D16 fixture sets can be purchased together with the table. We can provide matched package solution.
What is the evenly distributed static load capacity?
Load capacity varies according to table size. Please refer to our dimension specification table. Avoid long-term concentrated point load to protect table precision.
Can multiple D16 tables be spliced together for a larger working area?
Definitely. The 50×50mm grid is unified, so several tables can be seamlessly combined. Fixtures can cross the joint position freely.
Is CE certification available for EU market?
CE certification can be supplied upon request. Material certificates and heat treatment reports are also available.
How should I maintain the welding table to keep long-term accuracy?
Clean welding slag and metal chips after daily use. Avoid continuous local high-temperature burning on the tabletop. Keep holes unobstructed to ensure smooth installation of locking pins.
What is your production lead time?
Standard sizes: 7-10 working days. Customized sizes: 15-25 working days. We can arrange consolidated shipment for tables and fixtures.
Should you have any further questions about our D16 Precision Welding Table for Small to Medium Workpieces, feel free to send us an inquiry.
We offer professional technical support and competitive factory direct price.
