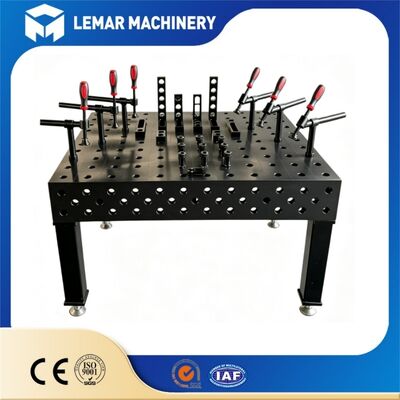

3D Flexible Modular D28 Welding Table For Industrial Metal Fabrication
| MOQ: | 1 |
| Price: | 500USD-1000USD |
| Standard Packaging: | 4000mm*2000mm*200mm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
China
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Model:
D28 3D Flexible Welding Table
Material:
HT300 Cast Iron And Q355 Steel
Hole Diameter:
28mm Standard D28 Hole
Surface Treatment:
Integral Nitriding
Matching Accessories:
Positioning Square, T-Clamp, Quick Lock
Optional Parts:
Mobile Casters, Height Adjustable Legs
Flatness:
Tight Precision Flatness Tolerance
Application:
Steel Structure, Metal Frame, Auto Parts Welding
Feature:
Anti-Deformation, Fast Positioning, Wear Resistant
Product Description
3D Flexible Modular D28 Welding Table For Industrial Metal Fabrication
D28 Flexible Welding Table Eliminates Repeated Calibration and Deformation
Product Overview
Our 3D Flexible Modular D28 Welding Table is a professional-grade fixturing solution engineered for industrial metal fabrication. Built from high-strength Q355 steel plate with a precision-nitrided surface, this table delivers exceptional flatness, wear resistance, and long-term accuracy for demanding workshop environments.
The D28 hole system — 28mm diameter holes spaced on a 100mm grid across all five working faces (top + four sides) — enables true 3D fixturing capability. Clamps, stops, angle brackets, and positioning pins can be mounted on any surface, allowing you to build complex jigs for square, rectangular, tubular, and irregular workpieces in minutes.
Ideal for heavy fabrication, chassis manufacturing, pipe spooling, and high-volume production where setup speed, repeatability, and structural rigidity are critical.
Core Features
True 3D Five-Sided Fixturing
Unlike flat tables with only a top working surface, our D28 table features precision holes on all five faces. Build vertical, horizontal, and angled fixtures from any direction — perfect for complex frames, box structures, and multi-angle weldments.
D28 Heavy-Duty Hole System
The 28mm diameter bore and 100mm grid pitch deliver superior rigidity and clamping force vs. smaller D16 systems. Designed for industrial-grade loads, thick steel sections, and high-stress welding operations.
Nitrided Surface for Extreme Durability
Deep nitriding treatment creates a hard, wear-resistant layer (≥HV600) that repels welding spatter, resists scratches, and prevents corrosion. Table accuracy stays consistent for years — 3-5 times longer service life than untreated steel tables.
CNC Precision Flatness
Every table is finish-machined on large CNC gantry mills to guarantee ±0.1mm/m² flatness. This ensures perfect 90° squareness, consistent weld gaps, and repeatable part quality across every production run.
Unlimited Modular Flexibility
Over 200 compatible D28 fixturing accessories — clamps, stops, V-blocks, angle brackets, locating pins, and more. Reconfigure the entire setup for a new project in minutes instead of hours. One table replaces dozens of custom jigs.
Cost-Effective Production Solution
Reduce fixture design and manufacturing costs by up to 70%. Cut setup time by 80% vs. traditional custom fixtures. Lower total cost of ownership while improving production throughput and part quality.
Product Specifications
| Item | Specification |
|---|---|
| Model | D28 3D Flexible Welding Table |
| Surface Treatment | Nitriding |
| Hole Diameter | 28mm |
| Material | HT300 Cast Iron / Q355 Steel |
| Standard Accessories | Positioning square, T-clamp, support block, quick lock |
| Optional Accessories | Mobile caster set, height adjustable legs |
Product Applications
Heavy Metal Fabrication — Structural steel, heavy plate welding, large frame assembly
Automotive and Truck Manufacturing — Chassis welding, frame fabrication, suspension components
Pipe and Pipeline Fabrication — Pipe spooling, flange welding, tubular structure assembly
Agricultural Machinery — Equipment frames, implement manufacturing, repair work
Railway and Locomotive — Car body fabrication, bogie welding, structural components
Shipbuilding and Offshore — Structural welding, pipe racks, platform fabrication
Aerospace and Defense — Precision structural assembly, fixture building
Job Shops and Contract Manufacturing — High-mix, low-to-medium volume production
Frequently Asked Questions
Q1:What's the difference between D16 and D28 welding tables?
D28 (28mm holes) is designed for heavy industrial work — thicker plates, larger workpieces, and higher clamping forces. D16 (16mm holes) is for lighter, precision assembly work. D28 accessories are NOT compatible with D16 tables and vice versa.
Q2:What does "3D five-sided" mean?
It means the table has precision-machined D28 holes on the top surface AND all four vertical sides. You can mount clamps and fixtures horizontally, vertically, or at angles — enabling true 3D fixturing for complex weldments.
Q3:How flat is the table, and how is it measured?
Our D28 tables guarantee ±0.1mm flatness per square meter. Each table is measured with a precision electronic level and laser tracker across multiple grid points before shipment. A flatness inspection report can be provided upon request.
Q4:What is nitriding, and why is it important?
Nitriding is a heat treatment that infuses nitrogen into the steel surface, creating a hard, wear-resistant layer (≥HV600). It protects against welding spatter, scratches, and corrosion — extending table life by 3-5 times compared to untreated steel.
Q5:Can I use my existing D28 accessories from other brands?
Yes, as long as they use the standard 28mm pin diameter and 100mm grid spacing. Our D28 system follows industry-standard dimensions, so most third-party D28 fixturing components will be compatible.
Q6:Do you offer custom sizes and configurations?
Absolutely. Send us your specifications for a custom quote.
Q7:How is the table shipped? Does it need assembly?
Standard models ship fully assembled — just unbox and place on your shop floor. Larger tables may have legs packed separately for transport safety, but assembly takes about 30 minutes with basic tools. Full instructions are included.
Q8:What's the warranty on the D28 welding table?
We offer a 1-year warranty against manufacturing defects. Normal wear from welding spatter and everyday use is not covered, but the nitrided surface is designed to last for years of heavy industrial use.
