Industrial 600kg Tilting Welding Positioner VFD Stepless Speed Welding Rotator With Chuck
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 55.00cm * 59.00cm * 65.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-60
Document
Type:
Welding Positioner
Structure:
Platform
Model NO.:
BWJ-60
Rotaion Speed:
0.15-1.5rpm
Max Eccentricity Distance:
150mm
Tilting Angle:
0-135°
Voltage:
110V/220V
Welding Tilter Type:
Flexible Combination
Tilt Speed:
0.4rpm
Product Description

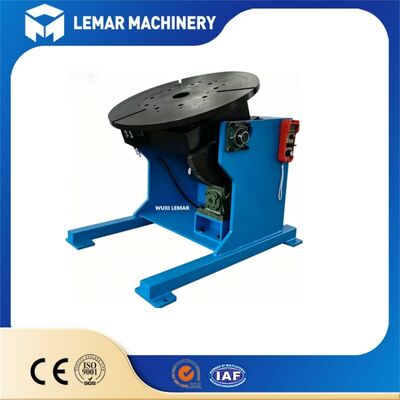

Industrial 600kg Tilting Welding Positioner VFD Stepless Speed Welding Rotator With Chuck
Product Overview
The 600kg welding positioner is heavy-duty welding auxiliary equipment designed for industrial applications. Equipped with VFD frequency speed regulation and an electric tilting mechanism, it efficiently rotates and tilts workpieces to optimal welding positions. Widely used for circular seam welding of medium-sized pipes, cylinders, tanks, and flanges. Compatible with TIG, MIG, and MAG welding machines, this positioner significantly improves circular weld quality and enhances workshop production efficiency.
Main Features
- Thickened integral steel frame with high rigidity for stable operation under full load
- VFD stepless rotation speed for uniform and smooth rotation without jitter
- 0°-120° electric tilting with self-locking transmission for safe positioning
- Large T-slot turntable for convenient installation of chucks and fixtures
- Dual control system: local panel + wired remote for flexible field operation
- Complete overload and emergency stop safety protection system
Technical Specifications
| Item | Specification |
|---|---|
| Rated Load Capacity | 600kg |
| Tilting Angle Range | 0° ~ 120° |
| Rotation Control | VFD Stepless Adjustable Speed |
| Rotation Motor | 1.1 kW |
| Tilting Motor | 0.75 kW |
| Turntable Diameter | 800mm |
| Optional Chuck | 500mm / 600mm |
| Control Mode | Panel + Wired Remote Control |
| Working Voltage | 380V 50Hz 3 Phase |
Product Advantages
- Stable circular weld forming reduces post-weld grinding workload
- Minimizes repeated workpiece flipping and lowers labor intensity
- Wide compatibility with all conventional arc welding power sources
- Compact layout with reasonable base structure for easy workshop placement
- Reliable transmission parts with low failure rate and convenient maintenance
- Accepts custom chuck size, turntable, and voltage specifications
Application Scope
- Applicable Workpieces: Medium metal cylinders, pipes, small pressure vessels, flanges, and circular seam parts
- Applicable Industries: Metal fabrication, environmental protection equipment, pipeline manufacturing, pressure vessel processing
- Matching Equipment: Works with TIG, MIG, MAG welding machines
Packaging & After-sales Service
- Export Packaging: Shockproof fumigation-free plywood case
- Warranty: 12 months whole machine warranty
- Technical Support: Remote video installation & commissioning guidance
- Spare Parts: Long-term supply of original spare parts
- Custom Service: Support non-standard parameter customization
Frequently Asked Questions
Q1: What is the rated load of this positioner?
Rated load capacity is 600kg, suitable for medium-weight workpieces. Do not exceed the rated load.
Q2: Is rotation speed adjustable?
Adopt VFD frequency converter, realize stepless adjustable rotation speed.
Q3: What is the tilting angle range?
Electric tilting from 0° to 120°, with self-locking to prevent accidental tilt.
Q4: Can I install different welding chucks?
500mm and 600mm self-centering chucks are optional.
Q5: Which welding machines can it match?
Compatible with TIG, MIG, MAG and most standard arc welding equipment.
Q6: Can you customize this machine?
We support customized turntable size, chuck, working voltage and control functions.
Q7: What after-sales support do you provide?
1-year warranty, lifelong technical consultation and remote operation guidance.
