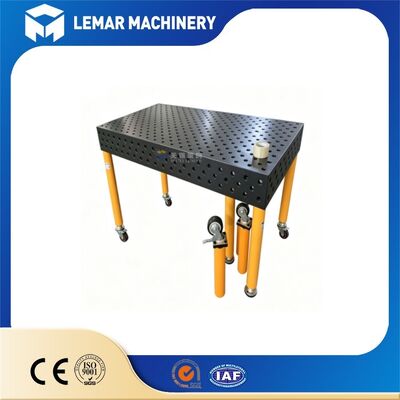

Professional D28 Welding Table with High Precision Fixture for Metalworking
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,Western Union,T/T,D/P |
| Supply Capacity: | 500 units/month |
The Professional D28 Welding Table with High Precision Fixture for Metalworking represents a high-performance modular 3D flexible welding solution dedicated to metalworking industries. The tabletop adopts precision machined D28 standard hole layout, paired with high-precision positioning and clamping fixtures to achieve stable 3D multi-dimensional fixation. After strict stress relief and surface nitriding treatment, the platform effectively resists deformation, welding spatter and abrasion. Whether for prototype trial production, batch structural parts welding or automated robot welding stations, this D28 welding table delivers consistent machining precision and remarkable operational flexibility.
| Item | Specification |
|---|---|
| Hole System | D28 standard (φ28 mm bore, D10 tolerance) |
| Grid Pitch | 100 × 100 mm, ±0.05 mm positional tolerance |
| Working Surfaces | 5-sided machined (top + 4 vertical sides) |
| Tabletop Flatness | ≤ 0.1 mm / 1000 mm |
| Side Perpendicularity | ≤ 0.1 mm / 200 mm |
| Repeat Positioning Accuracy | ± 0.03 - 0.05 mm |
| Tabletop Material - Steel Version | Q355 / S355J2+N alloy steel, 25 mm thickness |
| Tabletop Material - Cast Iron Version | HT250 / HT300 gray cast iron |
| Surface Treatment | Gas nitriding, hardened layer 0.25-0.35 mm, HV 550-800 |
| Stress Relief | Vibration stress relief (steel) / annealing + natural aging (cast iron) |
Traditional welding requires dedicated welding jigs; the D28 welding table allows for rapid fixture reconfiguration, eliminating the need to fabricate new tooling for new products and significantly shortening R&D and changeover times.
High repeatability ensures stable workpiece dimensions during mass production, reducing welding deformation and the need for rework.
Clamping is possible on the top surface and all four sides, enabling multi-angle workpiece positioning (horizontal, vertical, and inclined); ideal for complex weldments such as frames, racks, and housings.
Features a nitrided or black-oxide surface finish; weld spatter is easily removed, and the table surface resists pitting and scratching.
Platforms can be joined together to accommodate large steel structures and can be integrated with robotic welding workstations.
Solution: Our Professional D28 Welding Table with High Precision Fixture for Metalworking adopts modular flexible fixture system. Assemble fixtures freely according to different workpieces. No need to repeatedly manufacture dedicated jigs, shorten trial production cycle and greatly reduce jig investment cost.
Solution: Standard D28 hole system with strict tolerance; table flatness ≤0.1mm/1000mm, matched high-precision 42CrMo fixtures. Stable repeat positioning ensures unified size of batch products and lowers correction & rework workload.
Solution: Tabletop treated with gas nitriding. Hardened surface prevents welding spatter adhesion, abrasion resistant and anti-corrosion. Easy to clean and maintain, extending service life of the welding table.
Solution: Five-sided machined working surfaces (top + four vertical sides). Realize 360° multi-angle clamping in X/Y/Z directions, suitable for frames, cabinets and irregular metal structures.
CE compliant - Our Professional D28 Welding Table with High Precision Fixture for Metalworking meets EU Machinery Directive 2006/42/EC. Full risk assessment implemented in line with EN ISO 12100. We provide official Declaration of Conformity to support smooth customs clearance and market access in EU countries.
A: Optional stands: fixed legs, height adjustable legs, mobile frame with brake casters.
A: We do NOT recommend striking arc directly on the tabletop. Continuous local high temperature will cause local deformation and damage the nitrided layer.
A: Regular sizes: 1000×800, 1200×1000, 1500×1000, 2000×1000, 2400×1200, 3000×1500, 4000×2000mm. Custom dimensions are negotiable.
A: Definitely. With dedicated connecting blocks and locking pins, multiple D28 welding tables can be seamlessly combined to handle oversized workpieces in heavy metalworking fabrication.
A: Available. We support flexible packages. You can buy only the table body first, and add high precision fixture kits later according to your metalworking production demands.
Built for long-term heavy-duty fabrication, the Professional D28 Welding Table with High Precision Fixture for Metalworking provides stable 3D clamping and consistent machining accuracy.
Whether for prototype development or mass production, it is your ideal flexible welding solution. Feel free to reach out for technical data and latest offers.
