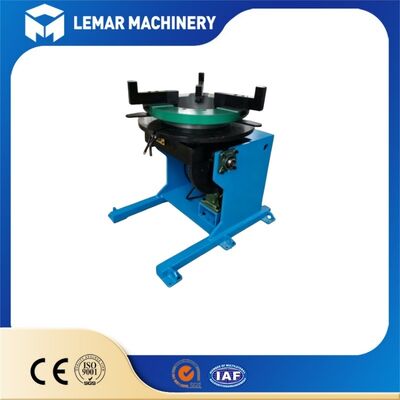

300kg Welding Positioner Rotary Welding Turntable for Circular Seam Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 73.00cm * 76.00cm * 80.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
The 300kg welding positioner is a common and practical welding auxiliary equipment designed for industrial applications. It features VFD stepless speed regulation and an electric tilting structure that automatically rotates and tilts workpieces to optimal welding angles.
This equipment is widely used for circular seam welding of pipes, cylinders, small tanks, and flanges. When matched with TIG, MIG, or MAG welding machines, it significantly improves welding flatness and production efficiency, making it ideal for small and medium welding processing factories.
- Heavy-duty integral steel frame with stable structure and no shaking during operation
- VFD stepless speed regulation for uniform and stable rotation speed
- 0°-120° electric tilting for flexible angle adjustment
- Equipped with self-centering chuck for fast and firm workpiece clamping
- Dual control of panel and wired remote for simple and convenient operation
- Multiple safety protection features including overload protection for stable operation
| Item | Specification |
|---|---|
| Rated Load Capacity | 300kg |
| Tilting Angle Range | 0°-120° |
| Rotation Control | VFD Stepless Adjustable |
| Rotation Motor Power | 0.75kW |
| Tilting Motor Power | 0.55kW |
| Optional Chuck Size | 300mm / 400mm |
| Control Mode | Panel + Wired Remote Control |
| Working Voltage | 380V 50Hz 3 Phase |
Applicable Workpieces: Metal pipes, cylindrical shells, small pressure tanks, flanges and other circular seam workpieces
Applicable Industries: Metal fabrication, environmental protection equipment, pipeline industry, hardware processing, pressure vessel manufacturing
Matching Equipment: Compatible with TIG, MIG, MAG and other ordinary welding machines
- Improve welding quality: uniform circular weld, reduce grinding process
- Save labor cost: reduce manual flipping and positioning work
- High compatibility: match all conventional arc welding equipment
- Small floor space, compact and reasonable overall structure
- Low failure rate, easy maintenance and long service life
- Support customized chuck size and special parameters
