Heavy Duty D28 Five Sided Modular Welding Table With Precise Flat Surface
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25work days |
| Payment Method: | L/C,D/P,D/A,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Thickness:
25mm
HS Code:
732690
Condition:
New
Verticality:
≤0.1mm/200mm
Working Face:
5-Sided Precision Machining
Model NO:
D28
Flatness:
≤0.1mm/1000mm
Diameter:
28mm
Trademark:
Lemar
Product Description

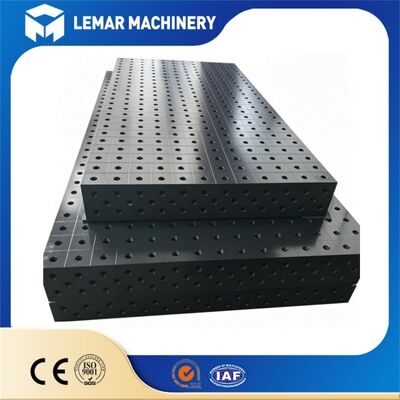

Heavy Duty D28 Five Sided Modular Welding Table With Precise Flat Surface
Product Overview
Our Heavy Duty D28 Five Sided Modular Welding Table is a professional-grade 3D fixturing system designed for high-demand metal fabrication workshops. Built from premium Q355 structural steel with advanced gas nitriding treatment, this five-sided welding platform features precision-machined D28 holes across all five working surfaces -- the top table and all four vertical sides -- enabling unlimited fixturing possibilities for complex welding projects.
Unlike traditional flat tables that only allow top-down clamping, our five-sided design lets you build fixtures horizontally, vertically, and at compound angles from every direction. Whether you're working on intricate tubular frames, industrial enclosures, automotive chassis, or custom structural assemblies, this modular system adapts to your workpiece, not the other way around.
Engineered for heavy industrial use with a 5,000 kg evenly distributed load capacity and ±0.1mm/m flatness tolerance, it delivers the precision and durability professional fabricators demand.
Tel: +86 510 88886966
Phone: +8615995269947
Email: evasummer@lemarmetal.com
Product Parameters
| Parameter | Specification |
|---|---|
| Model | D28 Large 3D Welding Fixture Table |
| Table Top Material | Q355 Structural Steel |
| Surface Treatment | Nitrided (Hardness ≥ 60 HRC) |
| Hole Diameter | 28 mm (D28 System) |
| Hole Grid Spacing | 100 mm × 100 mm |
| Flatness Tolerance | ±0.1 mm / m |
| Load Capacity | Up to 5,000 kg (depending on size) |
| Table Thickness | 25 mm |
| Available Sizes | 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 mm (custom sizes available) |
| Compatible Accessories | D28 clamping bolts, angle brackets, stop blocks, V-blocks, clamping pliers, riser blocks |
| Application | Welding, assembly, positioning, jigging, inspection |
Product Advantages
01 -- Five-Sided Full Access Fixturing
Work from every angle. With precision D28 holes on the top surface and all four vertical sides, you can clamp, position, and reference workpieces from any direction -- ideal for complex 3D assemblies, tubular frames, and multi-angle weldments that would be impossible on a standard flat table.
02 -- Industrial-Grade Nitrided Surface
Gas nitriding creates an ultra-hard surface layer (60-65 HRC) that resists weld spatter, abrasion, and corrosion. Spatter chips off cleanly with a simple tap -- no grinding, no scraping, no surface damage. Your table stays flat and accurate year after year.
03 -- Micron-Level Precision Flatness
Each table is precision-machined and CMM-verified to ensure ±0.1mm/m flatness across the entire working surface. D28 holes are CNC-bored to ±0.05mm positional tolerance for repeatable setups you can count on, job after job.
04 -- Heavy-Duty Construction for Real Workshops
100mm thick solid steel tabletop, reinforced rib structure underneath, and heavy-duty legs with adjustable leveling feet. Rated for 5,000 kg evenly distributed load -- built to handle large structural fabrications, heavy equipment frames, and high-volume production environments.
- Structural Steel Fabrication -- Frame welding, beam assembly, bracket fabrication
- Pipe and Tube Welding -- Square tube, round pipe, angle iron positioning
- Automotive and Chassis Work -- Frame jigging, suspension brackets, roll cages
- Machine Manufacturing -- Equipment frames, base structures, enclosures
- Agricultural Equipment -- Implement frames, brackets, structural components
- General Job Shop -- High-mix low-volume production, prototype development
- Training and Education -- Welding training centers, vocational schools
Customer Feedback
Shipping and Delivery
Why Choose Us
- 🏭 Direct Factory Pricing -- No middlemen, no markup. You get industrial-grade quality at factory-direct prices.
- 🎯 20+ Years of Expertise -- We specialize in welding and fixturing solutions. Our team understands what fabricators actually need on the shop floor.
- 📦 Global Shipping -- We export to 50+ countries. Whether you need one table or a full workshop setup, we handle the logistics.
- 🔧 Custom Solutions -- Standard sizes in stock, custom sizes on demand. We build tables to fit your specific production requirements.
- 💬 Responsive Support -- Questions about sizing, accessories, or custom configurations? Get a reply within 24 hours from our technical sales team.
Contact Information
Ready to upgrade your workshop with a welding table that delivers accuracy, speed, and years of reliable service? Contact us today for a free quote -- tell us your size and accessory requirements, and we'll put together a package that fits your budget and your production needs.
