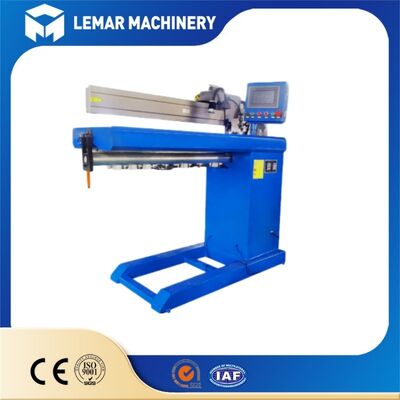

1200mm Longitudinal Straight Seam Welding Machine Supporting TIG, MIG, MAG & Plasma
| MOQ: | 1 |
| Price: | 500-1000USD |
| Delivery Period: | 10-20 work days |
| Payment Method: | Western Union,T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
ZFH-1200
Model NO.:
ZTH-1200
Product Name:
Automatic Longitudinal Seam Welding Machine
Product Type:
Cantilever Pneumatic Clamping Type
Control Mode:
Relay Control / Optional PLC Touch Screen
Workpiece Diameter Range:
75-850mm
Control System:
PLC + 10-Inch Touch Screen
Input Voltage:
380V/50Hz 3 Phase (Custom 220V/415V)
Frequency Range:
High Frequency
Max Effective Welding Length:
1200mm
Product Description
1200mm Longitudinal Straight Seam Welding Machine Supporting TIG, MIG, MAG & Plasma
Product Brief
This automatic longitudinal straight seam welding machine is specially designed for straight seam welding of cylindrical shells and metal plates. Equipped with pneumatic key clamping structure to firmly fix workpieces, it achieves stable single-side welding and double-side forming. Widely applied to stainless steel tanks, ventilation ducts, filter barrels and cylindrical metal components. Compatible with TIG, MIG, MAG and Plasma welding processes. A variety of optional configurations can be equipped to meet diverse production requirements.
Manufacturing Specifications
We adopt unified manufacturing standards for all seam welding equipment:
- Main beam and frame are processed via CNC cutting and precision machining
- Linear guides and rack & pinion driving components are purchased from certified suppliers
- Each machine passes continuous running test before delivery
- Electrical wiring complies with international industrial safety standards
- Assembly clearance is strictly controlled to ensure consistent welding travelling speed
Technical Data
| Item | Specification |
|---|---|
| Model | LSM-1200 Longitudinal Straight Seam Welder |
| Max Welding Length | 1200mm |
| Applicable Material | Stainless steel, carbon steel, aluminum alloy |
| Workpiece Thickness | 0.5-6mm |
| Welding Travel Speed | 0.1-2 m/min stepless adjustable |
| Clamping Mode | Pneumatic key-type clamping |
| Compatible Welding Source | TIG / MIG / MAG / Plasma Welder |
| Input Voltage | 380V 3-phase (customizable) |
| Warranty | 12 months |
| Optional Parts | Laser seam tracker, automatic wire feeder, water cooling unit |
Main Features
- Pneumatic copper key clamping device, even compression, low workpiece deformation
- Precision rack and pinion drive, stepless adjustable welding travelling speed
- Built-in backing copper fixture, optimizing weld formation effect
- PLC touchscreen control, supports storage of multiple sets of welding parameters
- Adjustable welding torch holder, easy for position fine-tuning during operation
Application Range
- Suitable for batch straight seam welding and forming of cylindrical metal workpieces and sheet metal parts
- Widely used for stainless steel water tanks, air duct cylinders, filter housings and pressure vessel shells
- Applicable to environmental protection equipment, food machinery, pipeline fittings and new energy industry parts processing
- Ideal for standardized mass production in metal fabrication and precision welding workshops
Frequently Asked Questions
Q1: Which welding processes does this machine support?
A1: It supports TIG, MIG, MAG and Plasma welding. Customers can match corresponding welding power sources locally.
Q2: Can I add laser seam tracking system?
A2: Yes, laser tracking device is available as optional upgrade to correct weld deviation automatically.
Q3: Is it possible to customize longer welding stroke?
A3: We support customized welding length such as 1500mm, 1800mm and 2000mm.
Q4: What is the minimum diameter of cylindrical workpiece?
A4: Minimum inner diameter depends on mandrel design, please inform workpiece drawing for confirmation.
