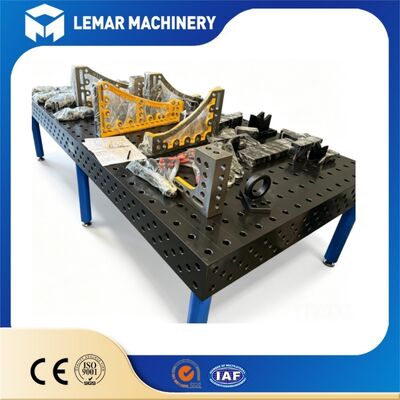

Durable Heavy Duty D28 Modular Industrial Precision Metal Welding Fixture Table
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25work days |
| Payment Method: | L/C,D/P,D/A,T/T,Western Union |
| Supply Capacity: | 500 units/month |
The D28 Modular Industrial Precision Metal Welding Fixture Table is a heavy-duty positioning platform engineered from high-strength Q355 structural steel —the material of choice for demanding fabrication environments where impact resistance, weldability, and structural integrity are paramount.
Unlike cast iron tables that can crack under severe impact or thermal shock, the Q355 steel construction delivers exceptional toughness and ductility, absorbing the violent stresses of heavy welding without fracturing. This makes the D28 steel series the ideal solution for job shops and production floors where workpieces are routinely tack-welded directly to the table, fixtures are repositioned with heavy hammer blows, and the table itself must withstand the rigors of daily heavy fabrication.
| Parameter | Specification |
|---|---|
| Model | D28 Large 3D Welding Fixture Table |
| Table Top Material | Q355 Steel |
| Surface Treatment | Nitrided (Hardness ≥ 60 HRC) |
| Hole Diameter | 28 mm (D28 System) |
| Hole Grid Spacing | 100 mm × 100 mm |
| Flatness Tolerance | ±0.1 mm / m |
| Load Capacity | Up to 5,000 kg (depending on size) |
| Table Thickness | 25 mm |
| Available Sizes | 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 mm (custom sizes available) |
| Compatible Accessories | D28 clamping bolts, angle brackets, stop blocks, V-blocks, clamping pliers, riser blocks |
| Application | Welding, assembly, positioning, jigging, inspection |
1. High-Strength Q355 Steel Construction
Engineered from structural-grade Q355 steel – tougher and more impact-resistant than cast iron, with no risk of brittle fracture under heavy loads or hammering.
2. Precision-Machined to ±0.02mm/m
CNC-machined flatness and H7-bore accuracy ensure repeatable positioning – no shimming, no guesswork.
3. Induction-Hardened Wear Surface (HRC 35–45)
Resists gouging, abrasion, and spatter adhesion – maintains hole integrity through years of daily use.
4. 100% Modular D28 Ecosystem
Φ28mm holes on 100mm grid – fully compatible with all industry-standard clamps, stops, and accessories.
5. Stress-Relieved & Dimensionally Stable
Post-weld annealing eliminates distortion – flatness stays true even after heavy fabrication cycles.
6. Expandable & Customizable
Bolt multiple tables together for larger workstations, or order custom hole patterns and sizes to fit your specific needs.
| Industry Segment | Typical Workpieces |
|---|---|
| Structural Steel Fabrication | Building columns, roof trusses, bridge girders, transmission towers |
| Heavy Machinery Manufacturing | Excavator arms, bulldozer frames, press machine beds, crane components |
| Shipbuilding & Offshore | Deck frames, pipe supports, hatch coamings, subsea structures |
| Mining & Earthmoving Equipment | Crusher frames, conveyor sections, bucket components, drill rig bases |
| Railway & Transportation | Bogie frames, coupler pockets, railcar structural assemblies |
| Robotics & Automation | Robot base plates, end-of-arm tooling fixtures, test stands |
| Energy & Power Generation | Wind turbine tower sections, generator bases, transformer tanks |
| Agricultural Machinery | Tractor chassis, harvester frames, implement hitches |
| General Job Shops & Repair Facilities | Custom fabrications, equipment repairs, prototype frames |
- 🏭 Direct Factory Pricing — No middlemen, no markup. You get industrial-grade quality at factory-direct prices.
- 🎯 20+ Years of Expertise — We specialize in welding and fixturing solutions. Our team understands what fabricators actually need on the shop floor.
- 📦 Global Shipping — We export to 50+ countries. Whether you need one table or a full workshop setup, we handle the logistics.
- 🔧 Custom Solutions — Standard sizes in stock, custom sizes on demand. We build tables to fit your specific production requirements.
- 💬 Responsive Support — Questions about sizing, accessories, or custom configurations? Get a reply within 24 hours from our technical sales team.
Ready to upgrade your workshop with a welding table that delivers accuracy, speed, and years of reliable service? Contact us today for a free quote — tell us your size and accessory requirements, and we'll put together a package that fits your budget and your production needs.
