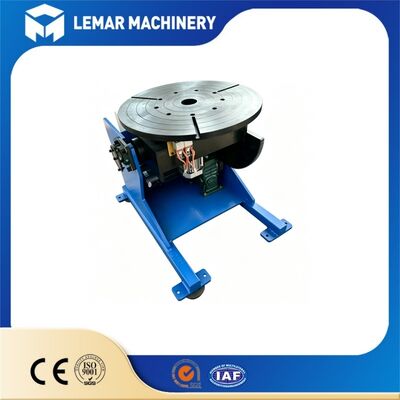

Circular Welding 100kg Positioner, 0-90° Tilting Turntable with 300mm Three-jaw Chuck
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 55.00cm * 59.00cm * 65.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | Western Union,T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
This medium-heavy rotary positioning machine is engineered for medium-load circular welding jobs in metalworking workshops. The machine rotates and tilts workpieces flexibly, enabling welders to operate at ergonomic angles and improve welding consistency. It is widely used for valve bodies, medium flanges and tubular components. Various optional accessories can be equipped to satisfy diversified production requirements.
We implement unified processing standards for all welding positioners:
- All steel structural parts are cut, machined and deburred with CNC equipment
- Key transmission components are sourced from certified suppliers for stable long-term operation
- Each machine undergoes continuous running and tilting ageing test before leaving the workshop
- Electrical circuits are wired in accordance with international safety norms
- We strictly control dimensional tolerance and assembly clearance to reduce vibration during low-speed welding
- Thickened welded base frame, strong rigidity to resist vibration under rated load
- Large T-slot turntable, flexible for installing various fixtures and chucks
- Self-locking worm gear reducer, ensuring no slipping at any tilt position
- Variable frequency stepless speed regulation, stable low-speed rotation for high-quality welds
- Built-in limit protection to avoid over-tilting and improve operational safety
| Item | Specification |
|---|---|
| Model | HD-100 Welding Positioner |
| Rated Horizontal Load | 100kg |
| Max Table Diameter | 400mm |
| Rotation Speed | 0.1-3 rpm stepless adjustable |
| Tilting Angle | 0-90° electric tilt |
| Standard Chuck | 300mm three-jaw self-centering chuck |
| Optional Parts | Through-hole turntable, torch holder, digital controller, foot pedal |
| Input Voltage | 220V single phase (110V/380V customizable) |
| Net Weight | Approx. 115kg |
| Warranty | 12 months |
Fit for batch welding and assembly of medium-sized workpieces in machinery workshops. Typical products include valve housings, hydraulic cylinder components, pipeline connectors, small pressure vessel parts, gear housings and stainless steel pipe fittings. Suitable for machinery manufacturing, environmental protection equipment, hydraulic parts factories and pipeline engineering workshops.
We provide clear operation manuals, wiring diagrams and operation videos along with each unit. Remote online technical guidance is available for installation, commissioning and daily troubleshooting. We maintain continuous supply of original spare parts after sales. For quality problems caused by manufacturing within warranty period, we offer corresponding solution support. We keep long-term communication to track machine running status after delivery.
