50kg Welding Positioner with 200mm Chuck, 0-90° Tilt Table for Rotary Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 55.00cm * 55.00cm * 60.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | Western Union,T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-05
Document
Model NO.:
BWJ-05
Tilting Angle:
0-90°
Welding Tilter Type:
Flexible Combination
Worktop Diameter:
350mm
Tilting Speed:
0-10 Rpm
Rotation Speed:
0.8-12rpm Variable Speed
Warranty:
12 Months
After-Sales Service:
Video Technical Support
Color:
Customized
Product Description

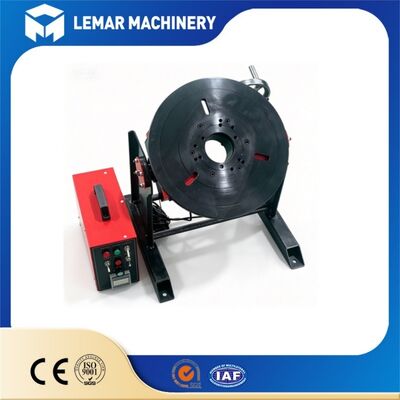

50kg Welding Positioner with 200mm Chuck, 0-90° Tilt Table for Rotary Welding
Product Overview
This 50kg welding positioner is a medium-duty rotary positioning equipment designed for small and medium workpieces requiring circumferential welding, assembly and positioning. It is widely used for flanges, pipe fittings, valves, circular hardware parts and cylindrical components. With VFD speed control, stable rotation and tiltable worktable, it helps reduce manual handling and improves welding consistency.
Core Advantages
- 50kg Medium-Duty Load Capacity: Stronger bearing capacity than small 30kg positioners, suitable for heavier flanges, valve parts, short pipes and cylindrical workpieces. The reinforced frame and rotary table provide stable support during continuous welding.
- VFD Stepless Speed Control: Equipped with variable frequency drive speed regulation, the rotation speed can be adjusted smoothly according to different workpiece materials and welding processes. It helps achieve uniform weld beads and reduces rotation vibration.
- 0-90° Tilting Worktable: The rotary table can be tilted from 0° to 90°, allowing flexible adjustment of horizontal, inclined and vertical welding positions. It is suitable for multi-angle assembly and circumferential welding.
- Widely Equipped with Chuck for Circular Workpieces: Standard configuration includes a 200mm three-jaw self-centering chuck, which is convenient for clamping round workpieces such as flanges, pipes and circular hardware. It can improve clamping efficiency and centering accuracy.
- Compact Structure and Easy Operation: Small footprint, suitable for limited workshop space. The control panel supports forward/reverse rotation, speed adjustment and emergency stop. One operator can complete most positioning and welding preparation work.
Technical Specifications
| Item | Specification |
|---|---|
| Model | HD-50 Welding Positioner |
| Rated Load | 50kg |
| Max Workpiece Diameter | 400mm |
| Rotation Speed | 0.1-1.5 rpm stepless adjustment |
| Table Tilt Angle | 0-90° |
| Standard Chuck | 200mm three-jaw self-centering chuck |
| Motor Power | 0.18kW |
| Input Voltage | 220V single phase (customizable) |
| Control Mode | VFD speed control, forward/reverse rotation, emergency stop |
| Net Weight | Around 75kg |
| Whole Machine Warranty | 12 months |
Application Industries & Workpieces
Applicable Industries: Hardware processing, pipeline fabrication, small metal fabrication, stainless steel product manufacturing, valve component processing, auto parts production, welding workshop equipment supply.
Matching Workpieces: Medium flanges, valve bodies, short pipe fittings, circular hardware parts, small cylindrical workpieces, welding rings, shaft sleeves, small pressure vessel components.
Technical Support & Service System
- We provide one-stop technical solutions for welding auxiliary equipment according to customers' actual working conditions.
- Our technical team can carry out structural optimization and parameter adjustment for non-standard customized equipment.
- Operation manuals, wiring diagrams and operation guidance videos will be provided together with each machine.
- We maintain long-term supply of spare parts to guarantee continuous equipment operation.
- Online remote guidance is available for installation, commissioning and daily troubleshooting.
- We keep continuous communication to follow up equipment operating status after delivery.
Frequently Asked Questions
What is the rated load of this 50kg positioner?
The rated load is 50kg. Please select the appropriate model according to the actual workpiece weight.
What size chuck is equipped as standard?
Standard configuration includes a 200mm three-jaw self-centering chuck.
Can the table be tilted for different welding positions?
Yes, the worktable can be tilted from 0° to 90°.
What is the rotation speed range?
Rotation speed is 0.1-1.5 rpm with VFD stepless adjustment.
Can you customize voltage for different countries?
Yes, we can customize voltage according to local power grid requirements.
What is the warranty period?
We provide 12-month whole machine warranty.
