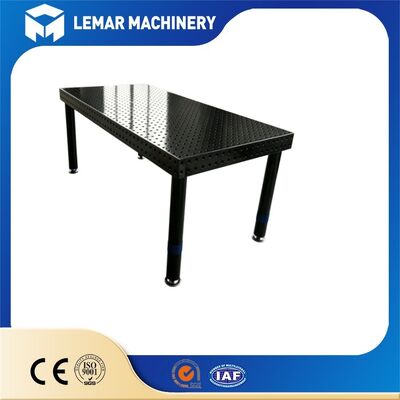

High Quality D16 Steel Welding Jig and Fixture Table Set

High Quality D16 Steel Welding Jig and Fixture Table Set

MOQ: 1 PCS
Price: 500-1500 USD
Standard Packaging: 4000*2000*200mm
Delivery Period: 15-25 work days
Payment Method: D/A,L/C,D/P,T/T,Western Union
Supply Capacity: 500 units/month
Detail Information
Place of Origin
WUXI ,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
CE certificate.pdf
System Standard:
D16
Perpendicularity:
≤0.1mm / 200mm
Flatness:
≤0.1mm / 1000mm
Surface Treatment:
Nitriding
Hole Diameter:
Φ16mm
Grid Pitch:
50×50mm
Working Surfaces:
5-sided (Top + Four Side Faces)
Positioning Type:
3D X/Y/Z Flexible Positioning
Shipping Port:
Shanghai
Product Description
High Quality D16 Steel Welding Jig and Fixture Table Set

Cut down your fixture production cycle and improve welding dimensional stability with the High Quality D16 Steel Welding Jig and Fixture Table Set. This industrial-grade 3D flexible welding table adopts international D16 standard hole system, featuring excellent flatness and long-term positioning accuracy. The nitrided steel surface resists welding spatter, scratches and oxidation.

 Welding table close-up view Welding table in use

Every complete set includes the main table body plus universal positioning blocks, locking pins, V-blocks and clamping assemblies. You can freely combine components to fix sheet metal, tubular parts and structural frames, making it an essential investment for metal workshops, frame manufacturers and new energy component processing factories.

Product Dimensions
System Material Size (mm)
D28/D16 HT300 cast iron/Q355 steel 1000*1000*200/150
D28/D16 HT300 cast iron/Q355 steel 1000*2000*200/150
D28/D16 HT300 cast iron/Q355 steel 1200*1200*200/150
D28/D16 HT300 cast iron/Q355 steel 1200*2400*200/150
D28/D16 HT300 cast iron/Q355 steel 1500*1000*200/150
D28/D16 HT300 cast iron/Q355 steel 1500*1500*200/150
D28/D16 HT300 cast iron/Q355 steel 1500*2000*200/150
D28/D16 HT300 cast iron/Q355 steel 1500*3000*200/150
D28/D16 HT300 cast iron/Q355 steel 2000*4000*200/150

Note: Custom sizes available upon request. Multiple tables can be joined together for larger workpieces.

Standard Kit Configuration
Standard kit components overview
Detailed kit components
  1. Quick-locking pins (concentric ball positioning pins): Quick locking and positioning between the welding table and the fixture, and between the fixtures.
  2. Various right-angle positioning parts, L-shaped angle irons, multi-angle support blocks: 90°/arbitrary angle positioning.
  3. Quick clamps, spiral clamping assemblies: Clamping and fixing workpieces.
  4. U-groove extension strips, square support boxes, leveling blocks: Space lifting and extended positioning.
  5. V-shaped positioning blocks: Positioning of round tubes and shafts.
  6. Limit stops, adjusting shims: Fine-tuning dimensions and batch repeat positioning.
Product Advantages
  • High versatility: One welding station can handle dozens of welding parts, reducing investment in dedicated tooling.
  • High positioning accuracy and good dimensional consistency reduce welding rework.
  • Long-lasting performance: The nitrided steel table surface is less prone to deformation and has a longer wear life compared to ordinary steel plates.
  • Multi-surface capability: It can be used on three-dimensional and five-sided surfaces, with side-extended clamping for easy positioning of complex structures.
  • Efficient changeover: Modular fixtures allow for quick assembly and disassembly, resulting in high changeover efficiency.
Why Choose Us?
Quality comparison - other suppliers Quality comparison - WUXI LEMAR
Other suppliers: The surface is rough, uneven, and the graduation lines are unclear. WUXI LEMAR: High-precision chamfering, smooth and flat desktop, laser engraving, durable.
FAQ
Q: Can D16 fixtures be used on D28 welding tables?
A: D16 and D28 are two independent standard systems. They cannot be directly interchanged. Transition adapters are available but not recommended for regular mass production due to reduced rigidity and accuracy.
Q: What is the load capacity of the D16 steel welding table?
A: Uniform distributed static load: 4-7 tons per square meter. Avoid long-time concentrated heavy load at a single point.
Q: Do you offer after-sales support and spare fixtures?
A: Yes. All D16 accessories are separately available for replenishment. We provide technical support for fixture layout suggestions.
Q: Could you supply all documents for customs clearance?
A: Sure. We can provide Commercial Invoice, Packing List, Bill of Lading, Test Report. Certificate of Origin (CO/FORM A/FORM E etc.) can be issued upon request. OEM marking documentation is also supported.
Q: Can you assist me to calculate estimated volume and weight for shipping?
A: Yes. Tell us the table size and fixture package grade (Basic / Standard / Premium), we will offer exact gross weight, net weight and package dimension for freight inquiry.

Still have questions about the High Quality D16 Steel Welding Jig and Fixture Table Set? Do not hesitate to reach out to us.

Our team can share test reports, package dimensions and loading plans.

Send your inquiry and let's discuss your welding production solution together.
