Precision 3D Modular Welding Fixture Table D16 For Small Metal Fabrication
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
3D welding table D16
,modular welding fixture table
,small metal fabrication table

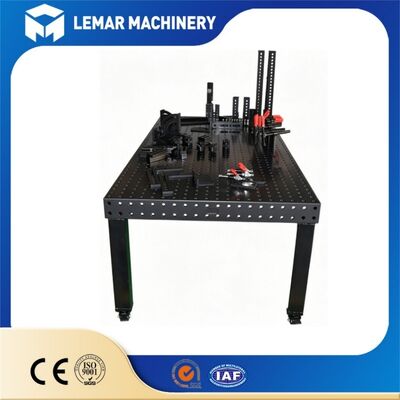

The Precision 3D Modular Welding Fixture Table D16 is engineered specifically for small metal fabrication and precision assembly work. Built with high-strength Q355 steel and finished with professional nitriding treatment, this table delivers micron-level accuracy, exceptional durability, and unmatched versatility for delicate welding projects.
Using the standard 16mm hole system and a dense 50×50mm grid layout, the fine grid spacing enables millimeter-level adjustment and complex clamping solutions - making it an ideal workbench for processing small metal parts, thin sheet metals, and precision components.
| Parameter | Specification |
|---|---|
| Model | D16 3D Welding Table |
| Tabletop Material | Q355 Steel / HT300 Cast iron |
| Surface Treatment | Nitrided (Gas Nitriding Process) |
| Hole Diameter | D16 (16mm) |
| Hole Grid Spacing | 50mm × 50mm (Standard) |
| Table Flatness Tolerance | ±0.1mm / m² |
| Standard Table Sizes | 1500×1000mm, 2000×1000mm, 2400×1200mm, 3000×1500mm (Custom sizes available) |
| Tabletop Height | The casting is 150mm in size, and the steel part is 100mm. |
| Load Capacity | Up to 5,000 kg (depending on model) |
| Working Height | 800mm-900mm (adjustable legs optional) |
| Surface Hardness After Nitriding | HV 600-800 |
| Compatible Accessories | Quick locking pins, clamping bolts, stop blocks, angle plates, V-blocks, clamping jaws |
| MOQ | 1 Set |
| Packaging | Plywood Case / Wooden Crate |
| Delivery Time | 15-25 Working Days |
-
Ultra-High Precision D16 Hole System
Industry-standard 16mm fixture holes on a dense 50×50mm grid with ± 0.05mm positioning accuracy. The fine pitch allows micron-level alignment for small and complex workpieces — no offset calculations, no guesswork, just precise clamping every time.
-
Premium Nitrided Surface Treatment
Professional nitriding creates a hard, protective layer with HV 550-650 hardness and 0.25-0.35mm depth. Benefits include:
- Excellent resistance to welding spatter adhesion
- Superior corrosion and scratch resistance
- 5-10× longer service life than untreated steel
- Easy cleanup and minimal maintenance
-
Five-Sided CNC Machined Flatness
Full CNC finishing on all 5 working surfaces (1 top + 4 sides) with ≤ 0.1mm/m flatness tolerance. Engraved grid lines and perimeter millimeter scales enable instant visual alignment — speeding up setup and eliminating measurement errors.
-
3D Modular Versatility
Supports horizontal, vertical, and angled fixturing for complete 3D build capability. Fully compatible with all major D16 fixturing accessories: clamps, stop blocks, angle brackets, locating pins, V-blocks, and riser blocks. Build any fixture configuration in minutes.
