D28 Industrial Welding Table for Large Scale Production Lines
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,D/P,T/T,Western Union,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Diameter:
Φ28mm
Grid Pitch:
100mm
Clamping Surface:
5-sided Full Hole Layout
Tabletop Material:
HT300 Cast Iron / Q355 Structural Steel
Surface Treatment:
Gas Nitriding
Surface Hardness:
HV550-800
Flatness:
≤0.1mm/㎡
Hole Position Tolerance:
±0.03mm
Tabletop Thickness:
25mm
Highlight:
D28 industrial welding table
,welding table for production lines
,large scale welding fixture table
Product Description
D28 Industrial Welding Table for Large Scale Production Lines

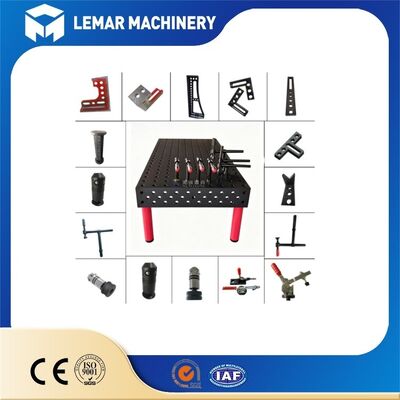

The D28 Industrial Welding Table for Large Scale Production Lines is our heavy-duty 3D modular fixturing platform exclusively engineered for continuous mass manufacturing and automated robotic welding lines. Built around the universal Φ28mm standard hole grid with 100mm uniform pitch and full 5-sided clamping surfaces, this D28 welding table delivers ultra-stable flatness, outstanding load-bearing performance and minimal thermal deformation during 24-hour non-stop batch production.Equipped with gas-nitrided wear-resistant tabletop, optional HT300 cast iron or Q355 structural steel body, it supports fast reconfiguration of modular clamps, positioning pins and support blocks without custom dedicated jigs. Ideal for large heavy structural workpieces including construction machinery frames, transit vehicle chassis, energy equipment housings and steel trusses, multiple D28 welding tables can be seamlessly spliced to form extended full-length production lines, drastically cutting workpiece changeover downtime, lowering rework rates and improving overall production efficiency for metal fabrication factories worldwide.
Size and Specification Table
| Table Dimension (L×W mm) | Table Thickness | Standard Base Type | Overall Flatness |
|---|---|---|---|
| 1000 × 800 | 25mm | Fixed Leveling Legs | ≤0.1mm/㎡ |
| 1500 × 1000 | 25mm | Fixed Leveling Legs | ≤0.1mm/㎡ |
| 2000 × 1000 | 25mm | Fixed / Mobile Caster Base | ≤0.1mm/㎡ |
| 2000 × 1500 | 25mm | Fixed / Hydraulic Lifting Base | ≤0.1mm/㎡ |
| 3000 × 1500 | 25mm | Hydraulic Lifting Base | ≤0.1mm/㎡ |
| 3000 × 2000 | 25mm | Heavy-duty Fixed Support | ≤0.1mm/㎡ |
| 4000 × 2000 | 25mm | Reinforced Integral Base | ≤0.1mm/㎡ |
Supplementary Specification Notes
- Precision Standard: Overall flatness ≤0.1mm/㎡, hole center tolerance ±0.03mm
- Surface Treatment: Gas nitriding, hardness HV450~500, nitrided layer 0.25-0.35mm
- Customization Support: Non-standard length/width, thicker tabletop, customized lifting stroke, integrated forklift slot base available
- Matching Accessories: Full set of D28 Φ28 locating pins, pneumatic/hydraulic clamps, angle supports, splicing connectors sold separately
- Splicing Function: Multiple welding tables can be locked together via splicing pins for unlimited extended production area
Core Advantages
- Rapid Changeover, Enhancing OEE (Overall Equipment Effectiveness): Equipped with complete modular fixtures, positioning blocks, and quick clamps for tooling changeover in less than 5 minutes. Perfect for multi-variety, high-volume mixed-production lines.
- Highly Uniform Batch Dimensions: Unified reference hole system ensures consistent positioning, controllable welding deformation, and stable dimensional tolerances. Compatible with automated welding robots.
- Five-Sided 3D Clamping: Adapts to complex and large structural components like vehicle frames, boxes, trusses, and engineering machinery booms without secondary tooling flipping.
- Extended Service Life: Nitrided hardened work surface and high-rigidity reinforced cabinet structure withstand 24-hour continuous operation, with 3-5 times longer lifespan than ordinary steel plate welding tables.
FAQ
Can multiple D28 welding tables be spliced into a full production line?
Yes. All D28 tables share unified Φ28 hole standard. With dedicated splicing locating pins, several units can be tightly connected together. After splicing, the overall flatness error is controlled within 0.15mm, forming an ultra-long working surface for carriage frames, bridge components and oversized structural parts mass welding lines.
Does it work with robotic welding stations?
Fully compatible with ABB, FANUC, KUKA, Yaskawa robots. The standard 100mm grid matches offline simulation coordinates to cut on-site debugging time.
What matching D28 fixtures do you supply?
Complete Φ28 standard accessories: locating pins, pneumatic/hydraulic clamps, V-blocks, angle brackets, splicing connectors and anti-spatter baffles.
Which industries use this D28 welding table?
Construction machinery, rail transit chassis, new energy cabinets, containers, steel trusses, agricultural & mining equipment mass production lines.
Whether you need a single standard D28 welding table or a complete spliced production line with full modular fixtures, our D28 Industrial Welding Table for Large Scale Production Lines can perfectly meet your heavy-duty mass fabrication needs.
