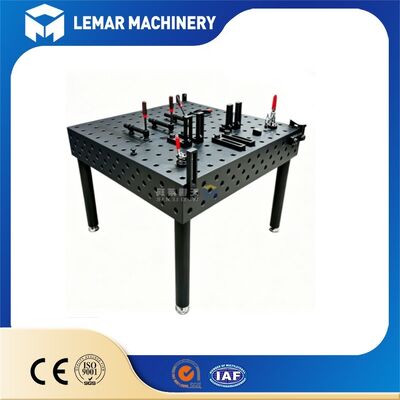

D28 Welding Table with High Strength Material for Deformation Resistance
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | Western Union,T/T,D/A,D/P,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Standard:
D28 (Φ28mm, 100×100mm Grid Pitch)
Main Raw Material:
Q355 High Strength Alloy Steel / HT300 High Grade Cast Iron
Tabletop Thickness:
25mm
Flatness Tolerance:
≤0.1mm / 1000mm
Structure:
Integral Box Reinforced Rib Base, 5-sided Full Hole Design
Matching Fixture Standard:
M16 Universal Clamping Accessories
Stress Treatment:
High Temperature Annealing + Natural Aging
Positioning Repeat Accuracy:
±0.05 Mm
Hole Tolerance:
+0.065 ~ +0.149 Mm
Highlight:
D28 welding table high strength
,welding fixture table deformation resistance
,welding table with high strength material
Product Description
D28 Welding Table with High Strength Material for Deformation Resistance
Product Introduction
D28 Welding Table with High Strength Material for Deformation Resistance delivers stable distortion-free working benchmarks for all heavy welding scenarios. Built with exclusive high-strength substrate and anti-deformation integral structure, this three-dimensional welding platform maintains consistent flatness even under continuous heavy industrial use. The universal D28 hole system supports all series modular fixtures, widely used in truck chassis, steel structure and agricultural machinery welding processing.
Size Specifications
| Table Size (L×W) mm | Hole System | Hole Pitch mm | Table Thickness mm |
|---|---|---|---|
| 1000 × 800 | Φ28mm D28 | 100 × 100 | 25 |
| 1000 × 1000 | Φ28mm D28 | 100 × 100 | 25 |
| 1200 × 1200 | Φ28mm D28 | 100 × 100 | 25 |
| 1500 × 1000 | Φ28mm D28 | 100 × 100 | 25 |
| 2000 × 1000 | Φ28mm D28 | 100 × 100 | 25 |
| 2400 × 1200 | Φ28mm D28 | 100 × 100 | 25 |
| 3000 × 1500 | Φ28mm D28 | 100 × 100 | 25 |
| 3000 × 2000 | Φ28mm D28 | 100 × 100 | 25 |
| 4000 × 2000 | Φ28mm D28 | 100 × 100 | 25 |
Custom sizes and multi-table splicing solutions available upon request
Surface Matching Process
- Nitriding treatment: Black nitrided surface, resistant to high temperatures and weld slag corrosion, high hardness and not easily scratched, preventing localized uneven deformation due to high-temperature welding slag burning
- Precision grinding Ra≤1.6μm, stress-free processing, preventing grinding warping
- No-paint design: Avoids peeling and uneven deformation caused by high-temperature welding paint burning
Core Functions
- Rapid 3D spatial positioning and modular clamping, eliminating the need for customized tooling
- High-rigidity platform ensures welding dimensional accuracy; stable workpiece welding dimensions are achieved without platform deformation
- Heavy-duty, high-temperature resistant, and impact-resistant, suitable for continuous 24-hour production line welding
- Can serve as a multi-functional reference platform for welding, assembly, inspection, and scribing
Applicable Industries
Heavy machinery, construction machinery, bus/freight vehicle frames, steel structure workshops, rail transportation, shipbuilding, pressure vessels, and agricultural machinery thick plate welding.
Core Advantages
Compared to Traditional Fixed Tooling
- Flexible and versatile: One D28 welding table adapts to dozens of workpieces. New product production eliminates the need for custom-made tooling and molds, reducing tooling costs by 60%
- Faster changeover: Tooling reconfiguration is completed in 10-30 minutes, compared to 7-15 days for traditional tooling manufacturing, adapting to multi-variety, small-batch production
- Smaller footprint: No need to store numerous specialized molds, reducing workshop storage space by 50%
- Stable precision: A unified reference surface eliminates manual scribing errors, reducing welding rework rates by over 30%
Comparison with D16 Lightweight Welding Table
- D28 welding table is designed for heavy-duty applications, with a load-bearing capacity more than twice that of D16. It is suitable for thick plates, heavy vehicle frames, and construction machinery; D16 welding table is only suitable for thin plates and small parts
- D28 modular welding table has larger hole diameters and stronger locking force, preventing slippage and table deformation when clamping large tooling
- D28 welding worktable has a 100mm hole spacing, providing more stable support for large spans. It is less likely to bend the table due to clamping force when welding large frames
FAQ
Can multiple D28 welding tables be spliced together for oversized workpieces like truck frames?
Yes. We provide special splicing connecting blocks and locking accessories. After splicing, the overall flatness remains consistent without height difference, which is ideal for large steel structure, chassis and engineering machinery welding.
How long is the service life of this deformation-resistant D28 welding table?
The table body has a 2-year warranty. With regular correct maintenance, the service life can reach 8-12 years for steel type and over 15 years for HT300 cast iron type.
Do you have CE certification for this welding table to sell to European markets?
All our D28 welding tables pass CE industrial safety certification, fully complying with EU workshop equipment standards, supporting customs clearance in European countries smoothly.
Does the table need to be fixed on the ground after arrival?
For light load processing, adjusting foot pads is enough to keep balance. For long-term heavy-load production, we suggest fixing the support legs to the concrete floor with foundation bolts to avoid uneven stress deformation.
What daily maintenance should we do to keep the table anti-deformation performance longer?
Clean welding slag and spatter every day; avoid long-term concentrated heavy pressure on a single area; regularly check if support legs and splicing bolts are loose; apply anti-rust oil on the tabletop for humid coastal workshops.
Seeking a distortion-free heavy-duty welding base for long-term mass production?
Our D28 Welding Table with High Strength Material for Deformation Resistance meets all heavy-load welding standards. Send your inquiry now, we will send complete technical catalog and favorable price within one working day.
