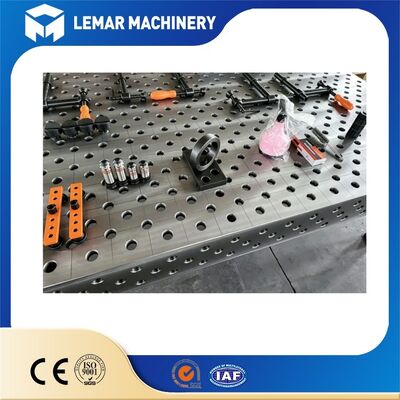

System 28 3D Flexible Welding Table for Versatile Metal Fabrication Operations
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,T/T,Western Union,D/P |
| Supply Capacity: | 500 units/month |
3D flexible welding table
,welding table for metal fabrication
,versatile welding fixture table
Searching for a robust, all-in-one work solution to streamline your metal fabrication, welding and assembly workflows? Our System 28 3D Flexible Welding Table is the industry-standard heavy-duty modular fixture engineered for versatile small-batch mass production, prototype development and automated robotic welding stations.
Built around the universal D28 hole system with full 5-sided 3D perforated surface, this welding bench abandons traditional single-purpose custom jigs. You can freely combine standard modular accessories to clamp frames, pipe parts, cabinet structures and heavy mechanical components at any X/Y/Z spatial angle. It integrates welding, positioning, dimension inspection, grinding and straightening on one single platform, drastically cutting fixture production costs and production line changeover time for all metalworking workshops.
| Comparison Items | System28 (D28) 3D Welding Table | System16 (D16) 3D Welding Table |
|---|---|---|
| Hole Diameter / Grid Pitch | Φ28mm, 100×100mm standard grid | Φ16mm, 50×50mm standard grid |
| Load Capacity | Heavy-duty, 3-8 tons total static load | Light-duty, maximum load ≤ 2 tons |
| Suitable Workpieces | Thick steel plates, large frames, construction machinery components, heavy steel structures | Thin sheet metal, small guardrails, precision small parts |
| Clamping Force Matching | Compatible with heavy-duty hydraulic & pneumatic clamping fixtures | Mainly matched with light manual clamps |
- 5-sided full Φ28 hole grid, 100×100mm standard pitch, positioning tolerance ±0.02mm for mass production consistency
- Double stress relief aging + nitrided tabletop, anti-spatter, anti-rust, service life over 10 years
- Max uniform load 6 ton/m², single locking pin shear resistance up to 25 tons for heavy structural fabrication
- Full modular interchangeable fixtures, reconfigurable within 1 hour, eliminate custom jig manufacturing cost
- Seamless multi-table splicing, compatible with robotic welding cells, positioners, inspection stations
- Low maintenance design, only daily slag cleaning required, spare parts globally available with fast delivery
- Heavy Construction Machinery: Excavator frames, hydraulic supports, large equipment bases, construction machinery booms
- Rail Transit/Vehicle Manufacturing: New energy battery brackets, bus frames, chassis supports, container frames
- Steel Structure Engineering: Equipment cabinets, guardrails, steel structure boxes, pipe supports, small bridge components
- General Machinery Non-standard Manufacturing: Automated machine frames, mold bases, sheet metal complete sets of components
- Sheet Metal/Doors Windows/Steel Structure Processing Plant: Batch production of irregular-shaped frames, guardrails, furniture metal structures
- R&D Sample Prototyping: New product prototyping, small-batch trial production, no need for mold opening and customized tooling
If you want stable high precision and flexible multi-product production, choose the System 28 3D Flexible Welding Table for Versatile Metal Fabrication Operations. Feel free to submit an inquiry with your order quantity and size needs. We will deliver detailed technical parameters, package solutions and favorable bulk pricing as soon as possible.
