600kg Bench Welding Positioner, Variable Speed Rotary Turning Table for Stainless Steel Workpiece Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 55.00cm * 59.00cm * 65.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-60
Document
Model NO.:
BWJ-60
Max Eccentricity Distance:
150mm
Voltage:
110V/220V
Function:
Positioner For Pipe Flange Welding
Applicable Chuck:
Kd200/300/400/500/600
Horizontal Loading Weight:
600kg
Colour:
Customized
Welding Material:
Stainless Steel,Carbon Steel
Rotating Motor:
1.1kw
Highlight:
600kg bench welding positioner
,variable speed rotary turning table
,stainless steel workpiece welding positioner
Product Description

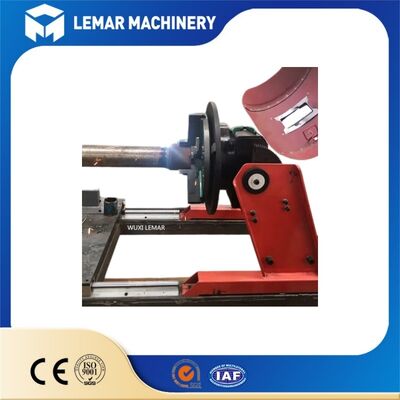

600kg Bench Welding Positioner
Variable Speed Rotary Turning Table for Stainless Steel Workpiece Welding
This 600kg welding positioner adopts frequency conversion driving motor matched with worm gear reducer to drive the rotary worktable. It converts vertical workpiece rotation into horizontal circumferential movement, turning overhead/vertical welding into flat position welding. The adjustable tilt angle eliminates welding dead angles; foot pedal control frees welders' hands to improve welding efficiency and weld seam uniformity, greatly reducing labor intensity and welding defect rate.
Standard Technical Parameters
| Item | Specification |
|---|---|
| Rated Loading Capacity | 600kg |
| Rotation Speed Range | 0.1-1.5 r/min (Stepless Frequency Control) |
| Worktable Diameter | 600mm (Customizable) |
| Rotation Mode | 360° Continuous Horizontal Rotation |
| Tilt Angle | 0-90° Electric Tilting (Standard Model) |
| Drive Type | Worm Gear Reducer + Variable Frequency Motor |
| Control Mode | Foot Pedal Switch + Cabinet Manual Control |
| Matching Chuck | 3-Jaw Self-Centering Welding Chuck |
| Power Supply | 380V/220V Customizable |
| Overall Weight | 480kg |
| Protection Grade | IP54 Dustproof & Waterproof |
Key Component Introduction
- Variable Frequency Control System: Stable output torque at low speed, no stalling during heavy load rotation; precise speed locking to guarantee consistent circular weld quality for thin stainless steel workpieces.
- High Precision Worm Gear Reducer: Low noise, strong bearing capacity, long service life, no shaking under full 600kg load.
- Integrated Tilting Mechanism: Electric hydraulic tilting structure, self-locking after angle adjustment, no sliding during welding operation.
- Emergency Safety Control Panel: Built-in overload protection, power-off brake, emergency stop button; automatically halt rotation when overloaded to protect machine and workpieces.
- Removable 3-Jaw Chuck: Quick disassembly, compatible with round pipes, flanges and irregular cylindrical workpieces, strong clamping force without slipping.
Application Industry Cases
- Food Machinery Manufacturing: Ideal for small stainless mixing tanks, sauce storage barrels, pipeline flange ring seam welding, meet food-grade welding smoothness requirements.
- Pressure Vessel Factory: Medium-sized cylindrical tank circumferential welding, reduce repeated workpiece flipping labor costs.
- Environmental Equipment Workshop: Small filter barrels, sewage treatment metal shells, round pipe connecting flanges mass welding production.
- Metal Fabrication & Automation Workshop: Batch processing of structural frames, round metal parts, support matching straight seam welding machines for full automatic welding lines.
Customization Support
- Structure Customization: Hollow through shaft for long pipe penetration welding, extended worktable for oversized workpieces
- Drive Upgrade: Replace ordinary frequency motor with servo motor for higher precision automatic linkage
- Control Upgrade: Add PLC system to connect with welding power source, realize automatic circular seam cycle welding
- Accessory Matching: Support matched welding turning rolls, positioner trolley for mobile operation
- Voltage & Certificate: Custom voltage for global markets, provide CE, ISO certification documents for import customs clearance
Frequently Asked Questions
Q1: Can this 600kg positioner weld thin stainless steel without burn-through?
A1: Yes. The stepless low-speed frequency control delivers ultra-smooth rotation, effectively avoid fast rotation causing uneven welding heat and thin plate burn-through.
Q2: Is it compatible with automatic welding machines?
A2: Standard model supports simple linkage; servo PLC customized version can perfectly match automatic straight seam/ring seam welders for unmanned production.
Q3: Can the machine be used for food stainless tank processing?
A3: Absolutely, many Latin America food machinery factories adopt this model for small storage barrel ring seam welding, fully meet sanitary welding standards.
Q4: Does it support customized parameters for different country power supply?
A4: We can adjust 220V single phase / 380V three phase power supply according to customer local grid.
Q5: Can the unit work with already offline/closed chain store processing workshop orders?
A5: The positioner fits all medium metal workpiece welding regardless of customer supplier status; all historical batch welding tasks are fully compatible.
