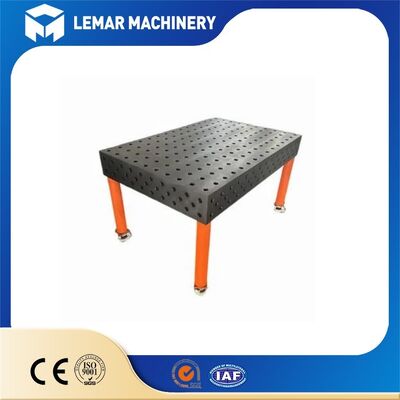

D28 Series Welding Fixture Table with 28mm Standard Hole Grid Layout
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,T/T,Western Union,D/P |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI ,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Spec:
Φ28mm, 100×100mm Standard Square Grid
Hole Design:
5-sided Full Hole Layout
Material Option:
Q355B Nitrided High Strength Steel/HT300 Quenched Cast Iron
Flatness Grade::
Grade 1 Standard / Grade 0 Precision
Trade Term:
EXW, FOB, CIF, DDP, DDU
Tabletop Thickness:
25mm
Table Body Height:
200mm
Nitriding Layer Thickness:
0.25–0.35mm
Adjacent Hole Center Tolerance:
±0.03mm
Highlight:
28mm standard hole welding table
,welding fixture table with grid layout
,D28 series welding workbench
Product Description
The D28 Series Welding Fixture Table with 28mm Standard Hole Grid Layout is an industrial heavy-duty 3D welding fixture platform built around the global universal 28mm hole grid standard. Featuring a full five-sided hole layout, it supports free combination of positioning blocks, quick locking pins and clamps to replace traditional single-purpose fixed jigs, greatly cutting jig production costs and shortening product changeover time. With strict precision inspection and two optional high-strength materials, this welding table delivers stable dimensional consistency for mass welding production and automated robot welding stations.
D28 Series Welding Fixture Table Specification Sheet
| Specification | Model 1 | Model 2 | Model 3 | Model 4 | Model 5 | Model 6 | Model 7 |
|---|---|---|---|---|---|---|---|
| Table Size (L × W) | 1000×800mm | 1200×1000mm | 1500×1000mm | 1500×2000mm | 2000×2000mm | 2000×3000mm | 2000×4000mm |
| Body Height | 200mm | 200mm | 200mm | 200mm | 200mm | 200mm | 200mm |
| Hole Diameter | Φ28mm | Φ28mm | Φ28mm | Φ28mm | Φ28mm | Φ28mm | Φ28mm |
| Grid Pitch | 100×100mm | 100×100mm | 100×100mm | 100×100mm | 100×100mm | 100×100mm | 100×100mm |
| Hole Layout | 5-sided full holes | 5-sided full holes | 5-sided full holes | 5-sided full holes | 5-sided full holes | 5-sided full holes | 5-sided full holes |
| Cast Iron Weight (approx.) | 190kg | 290kg | 360kg | 480kg | 720kg | 1080kg | 1650kg |
| Nitrided Steel Weight (approx.) | 130kg | 195kg | 240kg | 320kg | 480kg | 720kg | 1100kg |
| Uniform Load (Cast Iron) | 3t | 4t | 5t | 6t | 8t | 9t | 10t |
| Uniform Load (Steel) | 2t | 2.5t | 3t | 4t | 5t | 5.5t | 6t |
Mainstream Substrates and Processes
Option 1: HT250/HT300 Gray Cast Iron (Heavy-duty Preferred)
- Structure: One-piece box-type stiffener casting, 550℃ high-temperature annealing + vibration double aging, completely eliminating casting internal stress.
- Hardness: Working surface quenched HB180~220, weld slag does not easily adhere, vibration damping and stability.
- Advantages: Long-term high-temperature welding, heavy load, not easily deformed, long-term precision retention, suitable for large heavy industry and robotic welding workstations.
- Load capacity: Single table static load 5~10 tons.
Option 2: Q355B High-strength Steel Plate Nitrided (Lightweight and High-strength)
- Process: Steel plate integral CNC milling, plasma nitriding treatment, nitriding layer 0.25~0.35mm
- Surface Hardness: Nitriding layer HV450~630, wear-resistant, anti-spatter, rust-proof and corrosion-resistant.
- Advantages: Lightweight, easy to transport, good toughness, commonly used in shipbuilding and vehicle frame mass production lines.
Precision Specifications (Universal Standard)
- Flatness: 0.1mm/1000mm
- Perpendicularity of Tabletop and Side: 0.1mm/200mm
- Hole Center Positioning Accuracy: ±0.03mm
- Convenience Feature: 1mm precision scale etched on the tabletop edge, eliminating the need for scribing for alignment.
Product Advantages
- Universal 28mm standard hole grid layout - This heavy duty 3D welding table uses 100 by 100 mm grid holes, fully compatible with all D28 modular fixtures. Standard jig accessories can be shared to cut procurement costs.
- Five sided full hole three dimensional clamping - The D28 welding fixture table has holes on top and four vertical sides, supporting multi angle one time clamping for tubular frames and box parts to avoid repeated repositioning.
- Strict high precision for mass welding - Flatness is controlled within 0.1mm per meter and hole tolerance stays at ±0.03mm. Consistent machining accuracy of this modular welding platform largely lowers product rework rate.
- Superb load bearing for heavy structure processing - Reinforced box body greatly improves stability. Cast iron version holds 10 ton uniform load and steel version supports 6 ton load, suitable for engineering machinery and rail transit workpieces.
- Greatly save jig cost and shorten changeover time - Flexible D28 welding fixture table replaces traditional fixed custom jigs. New product fixture assembly only takes 10 to 30 minutes and saves storage space for idle tooling.
- Wear resistant surface with low maintenance cost - Paint free hard surface will not produce toxic fumes during welding and resist welding spatter. Simple daily cleaning can extend the service life of the 3D welding table.
International Industry Standard Certification
FAQ
Q: Are third-party D28 fixtures compatible with this platform?
A: Yes. Our D28 welding fixture table follows global unified industry standards. All standard locking pins, angle blocks and quick clamps of D28 specification from different brands can be matched seamlessly.
Q: Do I need special ground construction for installation?
A: No complicated foundation is necessary. Every heavy duty welding table is equipped with adjustable heavy support legs with leveling feet. Simply adjust the feet to keep the table horizontal after placement.
Q: How to maintain the table on a daily basis?
A: Clean welding slag and iron scraps inside all holes after daily work. Apply thin anti-rust oil to movable clamping parts every month. Never polish the table surface with an angle grinder or cut materials directly on the platform to protect the hardened surface layer.
Q: What delivery terms do you accept for overseas orders?
A: We support EXW, FOB, CIF, DDP and DDU. Each welding table is packed in fumigated solid wooden cases with waterproof inner wrapping to guarantee safe transportation by sea and land to all countries.
Q: Is customized service available?
A: We support various custom modifications for the D28 welding fixture table. You can adjust table sizes, add slag collection tanks, embed conductive copper strips or carve your brand LOGO on the edge. Complete fixture kits can also be delivered as a full set.
For more technical parameters, real case references and bulk order discounts of the D28 Series Welding Fixture Table with 28mm Standard Hole Grid Layout, submit your inquiry at once.
We will offer one-stop service including customized design, export packaging and global shipping scheme.
