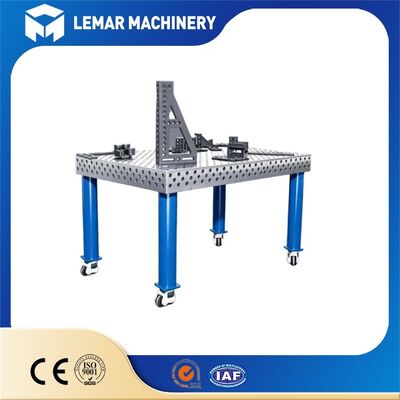

Modular D28 Welding Table with Custom Size Options
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/P,D/A,L/C,T/T,Western Union |
| Supply Capacity: | 500-1500 USD |
Detail Information
Place of Origin
WUXI ,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Standard:
D28, Φ28mm, 100×100mm Grid Pitch
Table Style:
2D Single-sided / 3D Five-sided Full Hole
HS Code:
85159000 / 73269090
Flatness Tolerance:
≤0.3mm / 1000mm
Side Verticality:
≤0.1mm / 200mm
Tabletop Thickness:
150mm / 200mm / 250mm (custom Thickened Available)
Matching Fitting Material:
42CrMo4 Alloy Steel, M16 Thread
Warranty:
2 Years For Tabletop, 1 Year For Clamping Fixtures
Surface Finish:
Full Gas Nitriding
Highlight:
Modular D28 welding table with warranty
,Custom size welding fixture table
,D28 modular welding table options
Product Description
Modular D28 Welding Table with Custom Size Options
Our Modular D28 Welding Table with Custom Size Options is a heavy-duty 3D modular flexible fixturing platform designed for all metal welding and assembly processes. Built on international standard Φ28mm hole grid system with 100×100mm pitch, this welding workbench breaks the limitation of fixed specifications and supports fully customized length, width, thickness, table height and special hole layout to match diverse production demands from small workshop batches to automated robotic welding stations.
Integrated complete interchangeable modular clamping accessories, high-precision nitrided tabletop and ultra-stable supporting frame, it drastically cuts jig manufacturing cost and workpiece setup time, becoming an essential universal tool for heavy metal fabrication worldwide.
Product Specifications
| Item | Detailed Parameter |
|---|---|
| Standard Hole System | Φ28mm D28 standard hole, 100×100mm grid pitch |
| Standard Table Size Range | 1000×800mm / 1200×1000mm / 2000×1000mm / 2400×1200mm / 3000×1500mm / 4000×2000mm Custom: Any length & width, L-shaped / U-shaped / cutout special shape supported |
| Table Flatness Tolerance | ≤0.3mm per 1000mm |
| Verticality of Side Surface | ≤0.1mm per 200mm |
| Matched Fixture Standard | All D28 modular accessories, M16 thread, 42CrMo4 alloy steel |
| Table Structure Type | 2D single-sided table / 3D 5-sided full hole table (main recommended) |
Hole Structure Details
- Countersunk Hole Step Design: Each D28 hole welding table features a 45° protective chamfer at the top, preventing scratches from workpieces and fixtures during lifting and ensuring smooth insertion and removal of the locking pin over time.
- Hole Internal Surface Finish: Precision boring ensures a burr-free inner wall, and the H7 locking pin achieves a precise fit with no play.
- Standard Hole Depth: A standard 40mm depth accommodates all D28 locking pins and bolts, preventing issues like loose locking or jamming of the worktable.
- Drainage and Slag Removal Angle: A slightly angled worktable design allows welding slag and cooling water to automatically flow to the side guide channels, preventing accumulation and jamming of components within the holes.
- Reference Scale Lines: Laser-etched millimeter graduations on both sides of the X/Y axes are permanent and fade-resistant, eliminating the need for additional measuring tapes.
Splicing System
- Dedicated D28 Splicing Connector: Double-sided locking structure, gap between two spliced platforms <0.03mm, no steps, unified positioning benchmark
- Overall Accuracy After Splicing: After multiple splices are completed, the overall flatness error within a total length of 10 meters does not exceed 0.5mm
- Splicing Positioning Pins: Double pin positioning locks the two platforms in both X/Y directions, preventing misalignment during welding vibration
- Flexible Expansion: Platforms can be added for capacity expansion at any time without the need to repurchase the entire equipment
- Suitable Scenarios: Large containers, engineering machinery frames, continuous welding stations on assembly lines
Value-Added Services
- Free Drawing Service: We can provide 2D CAD dimension drawings and 3D model files for customers' workshop layout planning
- Assembly Scheme Design: Based on the customer's workpiece drawings, we will provide a free fixture list and tooling assembly scheme
- OEM/ODM Customization: We can print the customer's own brand logo on the worktable, wooden box, and instruction manual, offering both neutral (unbranded) and OEM brand options
- Technical and After-Sales Support: English operation and maintenance manuals, installation videos, and online remote guidance for tooling assembly
- Tender Document Support: Material certificates, CE certificates, ISO certificates, scanned copies of company qualifications, and product parameter tender documents
- Old Workbench Repair Service: If the worktable of a customer's welding table has become inaccurate after many years of use, it can be returned to the factory for re-grinding and secondary nitriding refurbishment
Stop wasting money on non-adjustable single-function jigs!
Our Modular D28 Welding Table with Custom Size Options can perfectly fit all your welding production demands.
Whether you need small prototype tables, extra-long spliced workstations or anti-corrosion customized versions, drop us an inquiry with your dimension requirements and workpiece pictures.
Our Modular D28 Welding Table with Custom Size Options can perfectly fit all your welding production demands.
Whether you need small prototype tables, extra-long spliced workstations or anti-corrosion customized versions, drop us an inquiry with your dimension requirements and workpiece pictures.
We will design a cost-effective solution and send you the best factory quotation within 24 hours.
