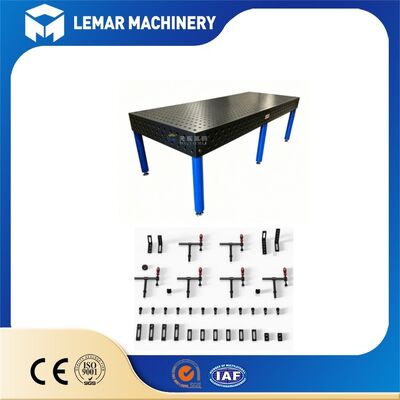

D28 Modular 3D Flexible Welding Table for Easy Repositioning and Repeated Use
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Standard:
Φ28mm, 100mm Grid Spacing
Matching Thread:
M16 Bolt / Locking Pin
Main Material Option:
Q355 Steel With Plasma Nitriding/ HT300 Cast Iron
Tabletop Thickness:
25mm
Applicable Load Type:
Heavy Workpiece Welding
Hole Position Tolerance:
±0.05mm
Table Flatness:
≤0.3mm Per 1000mm
Surface Hardness:
HV600+
Working Surface:
Five-sided Full Hole Layout (top + Four Side Faces)
Highlight:
modular welding table with 3D flexibility
,flexible welding table for repositioning
,D28 welding fixture table for reuse
Product Description
Tired of wasting budget on one-time custom welding jigs, long setup downtime and inconsistent workpiece precision during batch production? Our D28 Modular 3D Flexible Welding Table for Easy Repositioning and Repeated Use is your all-in-one heavy-duty fixturing solution for modern metal fabrication workshops.
Crafted with precision CNC-machined 5-surface hole layout (Φ28 standard holes with 100mm uniform grid spacing), this modular 3D welding platform abandons fixed dedicated tooling entirely. Every matched clamp, positioning block and support component is fully interchangeable: loosen locking pins to quickly reposition workpieces for angled, vertical or horizontal welding, then fully detach all accessories for storage and repeated use on your next batch of different parts.
Core Distinction of Welding Table
| Comparison Item | D28 Heavy-Duty Welding Table | D16 Light-Duty Welding Table |
|---|---|---|
| Hole Diameter | Φ28mm, matched with M16 bolts | Φ16mm, matched with M8 bolts |
| Max Load Capacity | Up to 10 tons, for heavy workpieces | ≤3 tons, for small sheet metal parts |
| Application Scenarios | Construction machinery, steel structures, vehicle frames | Small sheet metal, door & window frames, tiny racks |
| Repeated Clamping Force | High clamping force, resistant to welding deformation & vibration | Light clamping force for precise positioning of low-load workpieces |
| Tabletop Thickness | 25mm thickened plate | 12mm thin plate |
Core Industrial Advantages
- 3D omnidirectional flexibility: Allows for clamping on planes, elevations, and slopes, enabling one-time positioning and forming of frames, boxes, pipes, and machine racks
- High-precision and stable welding: Micron-level hole positioning ensures strong dimensional consistency in batches of workpieces, reducing rework
- Time savings: Traditional marking, alignment, and welding processes are all eliminated, increasing changeover efficiency by 60%
- Automation compatibility: The 3D welding table can be paired with welding robots and positioners to form an automated welding workstation
Repeated Use Benefits
- All fixtures are standardized, universal parts, allowing for disassembly and recycling after production, and unlimited reassembly
- Multi-variety, small-batch production eliminates the need for new molds or welding jigs for each workpiece
- Similar structural workpieces in the same industry can share a set of accessories, reducing tooling costs by over 70% in the long term
- Nitrided/cast iron tables are wear-resistant and slag-resistant, with a service life of over 10 years, and no precision degradation even after long-term reuse
Export Packaging Solutions
- Welding Table Body: Solid wood fumigated crate (IPPC logo), internal foam insulation, and wooden bottom support for easy forklift loading and unloading
- Complete Set of Accessories: Individually packaged in tin boxes/cartons, clearly labeled with accessory model
- Shipping Protection: Reinforced with steel straps, wrapped with a moisture-proof and waterproof membrane for ocean shipping to prevent rust from salt spray
- Package Identification: The exterior of the crate is printed with the model number, dimensions, weight, and shipping marks, suitable for full container load (FCL) shipments
FAQ
Can multiple D28 welding tables be connected together for oversized workpieces?
Yes. We supply special connecting pins and joint plates. Several tables can be seamlessly spliced to form an extra-large working surface for long frames or super-sized steel components.
Are all your D28 accessories universal and reusable?
All positioning stops, support blocks, quick locking pins, toe clamps and angle fixtures adopt unified D28 standard holes, fully interchangeable. You can disassemble, rearrange and store them after finishing one product, then reuse for other workpieces repeatedly.
What support legs do you offer for the table?
Three optional types: fixed leveling legs, height-adjustable extendable legs, brake-equipped heavy-duty caster legs for whole-table easy moving.
Can you provide workpiece fixture layout drawing before shipment?
Yes. If you offer your workpiece drawings, our technical team will design free 3D fixture layout solutions for your reference, helping you finish assembly and production quickly after receiving goods.
Do you provide CE certification for export?
All D28 welding tables and full sets of accessories pass CE industrial safety certification. We can offer certification documents, material test reports and hardness inspection certificates for customs clearance.
Invest in our D28 Modular 3D Flexible Welding Table for Easy Repositioning and Repeated Use to achieve fast repositioning and cyclic reuse of fixtures for all your heavy welding jobs.
Contact us now to get detailed specs, package lists and the best factory price. We are ready to solve all your metal fabrication fixturing needs.
