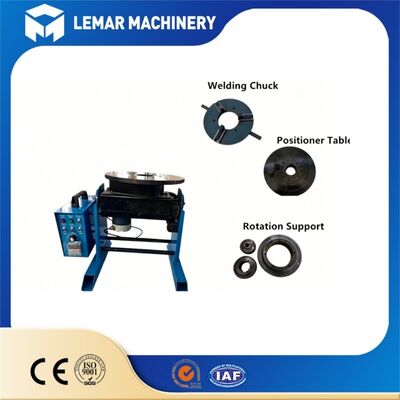

200kg Automatic Welding Positioner Pipe Flange Rotary Turntable
| MOQ: | 1 |
| Price: | 500-1000USD |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/A,D/P,L/C,T/T,Western Union |
| Supply Capacity: | 500 units/month |
200kg welding positioner rotary turntable
,automatic welding positioner pipe flange
,rotary welding positioner with turntable
BWJ-200 heavy-duty welding positioner is upgraded for medium-sized pipe, flange, stainless tank and small pressure vessel circumferential welding. Stable worm gear self-locking tilting structure avoids shaking during long-time welding; foot pedal hands-free operation greatly improves production efficiency.
Perfect matched with our 500mm longitudinal seam welder to complete full cylinder straight & circular welding production line, widely used for kitchen storage tank, pipe fitting, boiler end cap manufacturing.
| Item | Specification |
|---|---|
| Model | BWJ-200 |
| Rated Load Capacity | 200kg |
| Turntable Diameter | Φ400mm (Optional Φ500mm) |
| Rotation Speed | 0.1-1rpm Stepless Adjustable |
| Tilting Angle | 0-90° / Custom 0-120° |
| Control Mode | Digital Controller + Foot Pedal |
| Optional Parts | 3-Jaw Chuck / Torch Holder / Support Stand |
| Applicable Welding | TIG / MIG / MAG |
| Input Voltage | 220V Single Phase (Custom 415V for Middle East) |
| Certification | CE, ISO |
| Core Parts Warranty | 1 Year |
| MOQ | 1 Set |
| FOB Port | Wuxi / Shanghai |
- Heavy Load Stable Operation: Integrated cast steel base + RV precision reducer, low vibration during rotation, uniform weld bead without uneven patchy seams.
- Hands-Free Foot Pedal Control: Independent foot switch for start/stop rotation, operators focus fully on welding torch, cut labor fatigue by 40%.
- Full Customized Configuration: Upgrade 3-jaw self-centering chuck, vertical torch lifting frame; adjust tilting range, special 415V voltage for Qatar, Indonesia, UAE market.
- Complete Welding Line Matching: Combined with 500mm longitudinal seam welder + welding turning roller, realize one-stop automatic cylinder welding solution.
- Fix pipe, flange or cylinder workpiece on turntable/3-jaw chuck
- Adjust tilting angle to horizontal / 45° / vertical welding position
- Set steady rotation speed on digital control box
- Step foot pedal, turntable rotates evenly to finish full circumferential weld
- Medium stainless steel cylinder & pipe fitting factory
- Flange, elbow, boiler end cap processing workshop
- Commercial kitchen storage tank, palm oil small tank manufacturer
- Overseas engineering import traders supporting full welding line
- Packing: Fumigated solid wooden case, moisture-proof & shock-resistant for sea shipment
- Lead Time: 7-12 working days after deposit
- Pre-shipment: Full running test video sent for customer confirmation
A: It bears max 200kg workpieces, suitable for medium pipe, flange, stainless tank, boiler end cap and kitchen storage barrel circular seam welding.
A: Equipped with precision worm gear reducer and thick cast base, vibration is extremely low; stable rotation avoids patchy, uneven weld surface.
A: Yes, foot pedal is standard accessory, realize hands-free control during continuous welding work.
A: Perfect matching. The two machines form a complete set to finish cylinder straight seam and circumferential welding automatically.
A: Support 415V custom voltage, with complete CE certificate to pass import customs clearance in Qatar, UAE, Indonesia.
A: Motor, reducer and control box enjoy 1-year free warranty, lifelong online technical guidance.
