D28 Precision Welding Fixture Table with Interchangeable Clamps and Fixtures
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/P,L/C,D/A,T/T,Western Union |
| Supply Capacity: | 500 units/month |
D28 precision welding fixture table
,welding fixture table with clamps
,interchangeable welding fixtures table

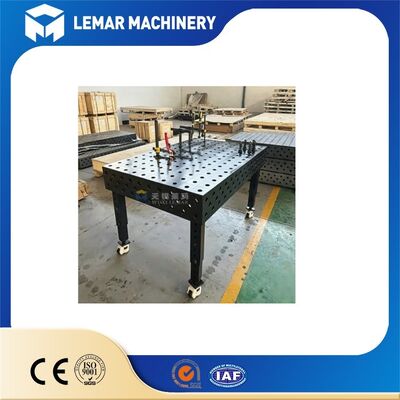

The D28 Precision Welding Fixture Table with Interchangeable Clamps and Fixtures is a heavy-duty 5-sided 3D modular welding workbench engineered for high-precision batch welding and custom metal fabrication. Utilizing the industry standard Φ28mm hole grid system with fully compatible positioning fixtures and clamping accessories, this welding table eliminates the need for custom fixed jigs, enabling rapid reconfiguration for different workpieces.
Equipped with a nitrided high-rigidity tabletop, stable load-bearing support frame, and complete series of universal modular clamps, it delivers consistent positioning accuracy, outstanding deformation resistance, and ultra-long service life. Widely matched for manual welding workshops and automated robot welding stations across heavy machinery, vehicle manufacturing, steel structure, and metal processing industries.
| Item | Specification Details |
|---|---|
| Full Product Name | D28 Precision Welding Fixture Table with Interchangeable Clamps and Fixtures |
| Standard Hole System | Φ28mm D10 precision holes, center distance 100mm±0.05mm, 5-sided hole layout (top + 4 vertical sides) |
| Tabletop Material Option 1 | HT300 Cast Iron, thickness 25mm, integrated reinforcing ribs, full stress relief annealing |
| Tabletop Material Option 2 | Q355 Alloy Steel Plate, thickness 25mm, secondary stress relief welding structure |
| Surface Treatment | Full plasma nitriding, nitride layer 0.25-0.35mm, hardness HV450-760, anti-spatter & anti-rust |
| Flatness Tolerance | ≤0.3mm per 1000mm; High-precision cast iron version ≤0.1mm per 1000mm |
| Verticality Tolerance of Side Faces | ≤0.1mm / 200mm |
| Repeat Positioning Accuracy | ±0.02~±0.05mm |
| Standard Available Table Sizes (mm) | 800×800, 1000×1000, 1200×1000, 1500×1000, 2000×1000, 2400×1200, 3000×1500, 4000×2000 |
| Supporting Frame Types | 1. Standard fixed legs with leveling pads (standard) 2. Height adjustable lifting columns (optional) 3. Brake caster mobile base (optional) 4. Robot special elevated stand (optional) |
All clamps and fixtures are universal for all D28 welding tables. No custom jigs required, enabling fast workpiece changeover.
5-sided CNC machined with repeat positioning accuracy ±0.02~0.05mm, ensuring stable batch production and low reject rates.
Full plasma nitriding treatment provides anti-spatter properties, high temperature resistance, rust-proofing, and long service life.
Holes on top and four sides enable multi-angle clamping for complex frames, pipes and chassis without blind spots.
Cast iron for heavy load applications (8-15 tons/㎡) with minimal thermal deformation, or alloy steel for lightweight, cost-effective sheet metal work.
Multiple base options available. Tables can be spliced together for extra-large workpieces and customized configurations.
The top surface of the countertop and the four sides of the facade are all formed by CNC gantry milling in one continuous operation, maintaining a unified benchmark. Laser engraving creates grid scale lines with millimeter rulers on all four sides, eliminating the need for additional tape measures during measurement and positioning.
Hole processing features Φ28mm precision hinge holes with D10 tolerance (+0.065~+0.149mm), matched with M16 standard locking parts. The center distance of holes is strictly controlled at 100mm ± 0.05mm, with diagonal error between any two holes ≤ 0.02mm. The flatness of the top surface ranges from 0.05~0.3mm/1000mm, and verticality between the facade and tabletop is ≤ 0.1mm/200mm.
Laser engraved millimeter scale lines on the top and four vertical sides, aligned with the 100mm hole grid, enable fast measurement without extra tape measures. Surrounding integrated slag guide grooves collect welding spatter and wastewater for easy cleaning. Built-in lifting lugs on large-size tabletops ensure safe hoisting and transportation.
Optional insulating sleeves prevent electric arc damage to stainless steel and aluminum workpieces, while plastic dust plugs stop iron filings and welding slag from blocking positioning holes.
Our D28 Precision Welding Fixture Table with Interchangeable Clamps and Fixtures delivers high precision, long service life, and flexible modular clamping to significantly reduce your production costs.
