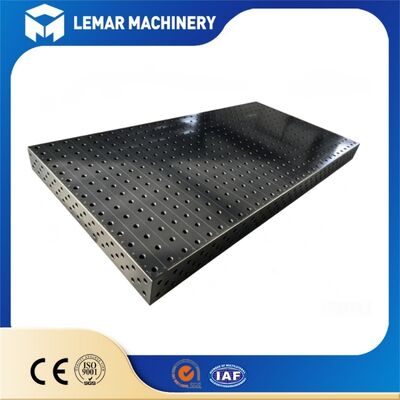

Durable D28 Large Nitrided Heavy Metal 3D Welding Fixture Table
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25work days |
| Payment Method: | L/C,D/P,D/A,T/T,Western Union |
| Supply Capacity: | 500 units/month |
D28 nitrided welding table
,heavy metal 3D welding fixture
,large welding table with fixture
Built for precision and built to last — our D28 Large Nitrided 3D Welding Fixture Table delivers a flat, modular, and wear-resistant work surface for professional welders, fabricators, and manufacturing workshops. Nitrided surface treatment ensures superior corrosion resistance and extended service life, while the D28 hole system provides unlimited clamping flexibility for every welding, assembly, and jigging project.
In professional welding and fabrication, accuracy and efficiency directly determine your profitability. A cheap welding table may save you money upfront, but it will cost you far more in rework, scrapped parts, and wasted setup time.
Our D28 Nitrided 3D Welding Fixture Table is engineered to solve these problems at their source.
Precision that stays precision. The nitrided surface doesn't just resist rust — it resists wear. Year after year, the hole positions remain accurate, and the table surface stays flat. This means your jigs produce consistent results today, next month, and five years from now.
Setup speed that transforms your workflow. The D28 modular system is the industry standard for a reason. Clamping bolts, stop blocks, angle brackets, V-blocks, and clamping pliers — all drop into place instantly. Switching from one project to the next no longer means tearing down and rebuilding your entire setup.
3D fixturing for real-world fabrication. Welding isn't just about flat panels. You're building frames, chassis, supports, and structures that exist in three dimensions. Our 3D welding table lets you fixture workpieces vertically, at angles, and at custom heights — all on the same table surface.
Built for the realities of the workshop floor. Welding spatter, grinding dust, moisture, and heavy impacts — your table takes a beating every single day. The nitrided surface shrugs off welding spatter, resists rust even in humid environments, and handles heavy dropped parts without denting.
| Parameter | Specification |
|---|---|
| Model | D28 Large 3D Welding Fixture Table |
| Table Top Material | Q355 Structural Steel |
| Surface Treatment | Nitrided (Hardness ≥ 60 HRC) |
| Hole Diameter | 28 mm (D28 System) |
| Hole Grid Spacing | 100 mm × 100 mm |
| Flatness Tolerance | ±0.1 mm / m |
| Load Capacity | Up to 5,000 kg (depending on size) |
| Table Thickness | 25 mm |
| Available Sizes | 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 mm (custom sizes available) |
| Compatible Accessories | D28 clamping bolts, angle brackets, stop blocks, V-blocks, clamping pliers, riser blocks |
| Application | Welding, assembly, positioning, jigging, inspection |
Through professional nitriding heat treatment, the table surface achieves exceptional hardness (up to 60 HRC), outstanding wear resistance, and reliable anti-rust performance. No more frequent replacements — one table serves you for years under harsh welding environments.
The 28mm diameter hole grid (100mm spacing) is fully compatible with standard D28 clamping accessories. Position, clamp, and secure workpieces of any shape and size in seconds. From simple brackets to complex structural frames — setups that used to take hours now take minutes.
Designed as a true 3D welding platform, this table supports horizontal, vertical, and multi-angle fixturing. Weld square tubes, angle irons, pipes, and custom profiles with consistent accuracy — every joint aligns perfectly on the first try.
Generous table size provides ample space for large fabrications, batch production, and multi-operator work. The thick solid steel plate maintains perfect flatness (±0.1mm/m) even under heavy load, ensuring dimensional accuracy across every project.
- Structural Steel Fabrication — Frame welding, beam assembly, bracket fabrication
- Pipe and Tube Welding — Square tube, round pipe, angle iron positioning
- Automotive and Chassis Work — Frame jigging, suspension brackets, roll cages
- Machine Manufacturing — Equipment frames, base structures, enclosures
- Agricultural Equipment — Implement frames, brackets, structural components
- General Job Shop — High-mix low-volume production, prototype development
- Training and Education — Welding training centers, vocational schools
- 🏭 Direct Factory Pricing — No middlemen, no markup. You get industrial-grade quality at factory-direct prices.
- 🎯 20+ Years of Expertise — We specialize in welding and fixturing solutions. Our team understands what fabricators actually need on the shop floor.
- 📦 Global Shipping — We export to 50+ countries. Whether you need one table or a full workshop setup, we handle the logistics.
- 🔧 Custom Solutions — Standard sizes in stock, custom sizes on demand. We build tables to fit your specific production requirements.
- 💬 Responsive Support — Questions about sizing, accessories, or custom configurations? Get a reply within 24 hours from our technical sales team.
Ready to upgrade your workshop with a welding table that delivers accuracy, speed, and years of reliable service? Contact us today for a free quote — tell us your size and accessory requirements, and we'll put together a package that fits your budget and your production needs.
