100kg Welding Turntable Rotary Positioner Small Cylinder Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,T/T,Western Union,D/P |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-10
Document
Model NO.:
BWJ-10
Max Eccentricity Distance:
150mm
Voltage:
110V/220V
Function:
Pipe Flange Welding Turning Table
Horizontal Loading Weight:
100kg
Rotation Speed:
0.5-5rpm
Worktable Diameter:
400mm
Speed Mode:
AC Frequency
Exported To:
USA, UK, Canada, Greece, Poland, Brazil
Highlight:
100kg welding turntable rotary positioner
,small cylinder welding positioner
,rotary welding positioner with warranty
Product Description

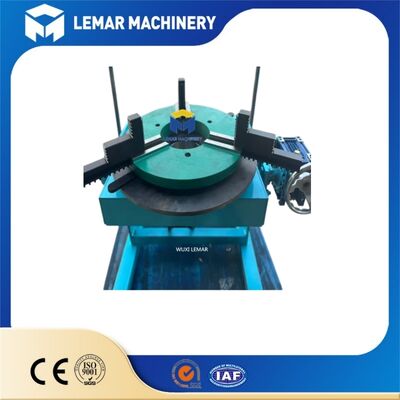

100kg Welding Turntable Rotary Positioner Small Cylinder Welding
BWJ-100 welding positioner is a mini rotary turntable designed for small pipe, flange and thin cylinder circumferential welding. It supports 0-90° tilting and stepless rotation, with foot pedal hands-free control that greatly improves welding efficiency. Compact footprint makes it easy to match with 500mm longitudinal seam welder for complete cylinder welding line.
Widely used for stainless pipe fittings, small pressure vessels, water tank end cap and hardware circular weld applications.
Technical Specifications
| Item | Specification |
|---|---|
| Model | BWJ-100 |
| Rated Load Capacity | 100kg |
| Turntable Diameter | 360mm / 400mm Optional |
| Rotation Speed | 0.1-1 rpm Stepless Adjustable |
| Tilting Angle | 0-90° / 0-120° Optional |
| Control System | Digital Controller + Foot Pedal |
| Optional Accessory | 3-jaw Chuck / Torch Holder / Lifting Stand |
| Welding Process | TIG / MIG / MAG |
| Input Voltage | 220V Single Phase (Custom 110V/415V) |
| Certification | CE, ISO |
| Core Parts Warranty | 1 Year |
| MOQ | 1 Set |
| FOB Port | Wuxi / Shanghai |
Core Advantages
- Compact & Stable Low Vibration: Integrated cast steel frame with stress relief processing ensures no shake during continuous circular welding for uniform weld bead.
- Hands-Free Foot Pedal Control: Separate foot switch to start/stop rotation allows operators to focus on welding torch, cutting labor fatigue by 40%.
- Full Customizable Configuration: Match with 3-jaw self-centering chuck, vertical torch stand, pneumatic torch holder; adjustable voltage for various international markets.
- Perfect Matching Welding Line: Cooperate with our 500mm longitudinal seam welding machine to finish cylinder straight & circular weld in one workshop.
Working Principle
- Fix pipe/flange/cylinder workpiece on turntable or three-jaw chuck
- Adjust tilting angle to horizontal/45°/vertical welding position
- Set rotation speed on digital control box
- Step foot pedal, turntable rotates evenly to complete full circumferential weld
Application Fields
- Small stainless steel cylinder & pipe processing factory
- Flange, elbow, pipe fitting manufacturers
- Mini pressure vessel, water tank, heater barrel workshop
- Engineering import traders supporting palm oil tank production line
Custom Service
- Upgrade 3-jaw chuck, vertical torch lifting frame
- Change tilting range to 0-120°
- Custom special voltage for different countries
- Complete set with 500mm longitudinal seam welder as full welding solution
Packing & Delivery
Packing: Fumigated solid wooden case, moisture-proof & shock-resistant
Lead Time: 5-10 working days after deposit
Pre-shipment: Full running test video sent for customer confirmation
Frequently Asked Questions
Q1: What workpieces fit this 100kg welding positioner?
A: It is suitable for pipe, flange, small stainless cylinder, tank end cap within 100kg load weight, widely used for circular seam welding of thin-wall metal parts.
Q2: Does it support foot pedal control?
A: Standard equipped with foot pedal, realize hands-free rotation control during welding, convenient for long time continuous operation.
Q3: Can I add 3-jaw chuck and torch holder?
A: All accessories are optional, we can assemble chuck, vertical torch stand and pneumatic torch holder according to your welding demands.
Q4: Can this positioner match your 500mm straight seam welder?
A: Perfect matching. Combined two machines to complete cylinder straight seam and circumferential seam automatic welding, one-stop production solution.
Q5: Is CE certification available?
A: Yes, all our welding positioners pass CE standard, meet customs inspection of most overseas countries.
Q6: How long is the warranty?
A: Motor, controller and gearbox core parts enjoy 1-year free warranty, lifelong online technical support.
