500mm Longitudinal Straight Seam Welding Machine for Oil Storage Tank
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 100.00cm * 80.00cm * 120.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,T/T,Western Union,D/P |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
ZF500
Document
Model NO.:
ZF-500
Product Name:
500mm Longitudinal Straight Seam Welding Machine
Welding Type:
Automatic Longitudinal Seam Welding
Plate Thickness Range:
0.3-5mm
Workpiece Diameter Range:
75-850mm
Control System:
PLC + 10-Inch Touch Screen
Input Voltage:
380V/50Hz 3 Phase (Custom 220V/415V)
Applicable Material:
Stainless Steel, Carbon Steel, Aluminum
Frequency Range:
High Frequency
Highlight:
500mm longitudinal straight seam welder
,oil storage tank welding machine
,straight seam welder with warranty
Product Description

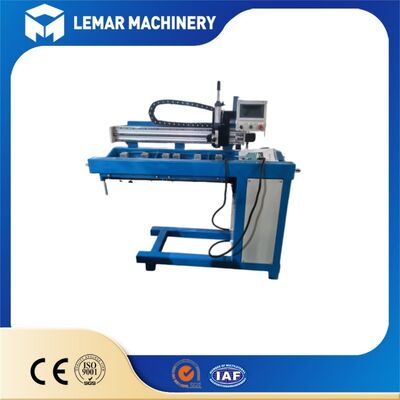

500mm Longitudinal Straight Seam Welding Machine for Oil Storage Tank
ZF-500 automatic longitudinal seam welding machine is specially designed for straight seam welding of cylindrical tanks, pressure vessels, water tanks, palm oil storage barrels and conical tubes with weld length within 500mm.
Adopts cantilever annealing frame + full pneumatic key pressing mechanism, evenly compresses workpiece along weld line to reduce welding deformation. Equipped with water-cooled copper mandrel for back gas protection, realizing single-sided welding & double-sided forming without secondary polishing.
All motion axes driven by servo motor, stable travel speed 0.2-2.2m/min, PLC English touch screen stores 99 groups of welding parameters, one-key recall for mass production. Widely matched stainless steel, carbon steel, aluminum alloy, perfectly fit small & medium tank manufacturers, palm oil factories, water heater production lines from Southeast Asia, Middle East, Latin America.
Technical Specifications
| Item | Specification |
|---|---|
| Model | ZF-500 |
| Effective Welding Length | 500mm |
| Min Workpiece Inner Diameter | Φ65mm |
| Max Workpiece Diameter | Φ900mm |
| Welding Thickness | 0.3-6mm |
| Driving System | Servo Motor + Linear Guide Rail |
| Control System | PLC Touch Screen English Version |
| Clamping Type | Pneumatic Key Press Clamp |
| Welding Process | TIG / MIG / MAG / Plasma Optional |
| Voltage | 380V 50Hz / Custom 220V/415V |
| Certification | CE, ISO |
| Warranty | 1 Year for Core Parts |
| MOQ | 1 Set |
| FOB Port | Shanghai / Qingdao / Wuxi |
Core Advantages
-
Ultra Stable Welding Precision, Low Defect RateFull linear guide rail + servo closed-loop control, straightness tolerance ≤0.01mm/m; adjustable copper key pressing fingers, uniform pressure avoid burn-through, incomplete fusion, meet pressure vessel leakage-free standard.
-
One-Side Weld Double-Side Forming, Save Post Process CostBuilt-in water cooling mandrel with argon back protection; weld surface smooth, no grinding required, cut 40% post-processing labor cost for tank factories.
-
Full Automatic PLC English Control, Low Operation ThresholdEnglish touch panel, auto arc start / arc stop / speed adjustment; save mass production parameters, new workers operate skillfully within 1 hour, reduce technical worker reliance.
-
Wide Compatibility & Flexible CustomizationSupport TIG/MIG/MAG/Plasma welding power source; optional hydraulic clamp, automatic weld tracking, heightening block for larger diameter cylinders; voltage customized for India, Mexico, UAE, Indonesia market.
-
Durable Heavy-Duty Structure, Low MaintenanceMachine frame whole annealing stress relief, no long-term deformation; international brand electrical components, 1-year free spare parts supply, local after-sales technical guidance online.
Working Principle
- Place the formed cylinder workpiece on the machine mandrel, align weld joint in the center of key pressing area.
- Start pneumatic system, key press clamps tightly fix the whole weld length to prevent thermal deformation during welding.
- Set welding current, travel speed, arc delay time on PLC touch screen, store parameter group.
- Servo carriage drives welding torch moving evenly along 500mm linear rail, back mandrel fills shielding gas for protection.
Target Applications
- Pressure vessel & boiler cylinder factory
- Stainless steel water tank / palm oil storage tank manufacturer
- Lamp post, air duct, small metal barrel fabrication plant
- Engineering import traders for Southeast Asia, Middle East, Latin America
Custom Service
- Adjust welding length, workpiece diameter range
- Upgrade hydraulic clamping, automatic laser tracking system
- Match welding power source of TIG/MIG/Plasma brands
- Custom voltage 220V/415V for different countries
- Matching welding roller frame as complete welding production line
Frequently Asked Questions
Q1: What workpieces can this ZF-500 welder process?
A: It is suitable for stainless steel, carbon steel and aluminum cylinders within 500mm welding length, including water tanks, palm oil storage tanks, small pressure vessels, lamp posts and boiler barrels. The workpiece inner diameter ranges from 65mm to 900mm, welding thickness 0.3-6mm.
Q2: Does the machine realize single-sided welding double-sided forming?
A: Yes. It comes with water-cooled copper mandrel and argon back protection. The weld surface is smooth without secondary grinding, greatly cutting post-processing costs.
Q3: Is the control panel available in English?
A: Standard English PLC touch screen. It can save 99 groups of welding parameters for one-click calling during mass production. We also support other language customization on request.
Q4: Can I customize parts or functions of the machine?
A: Full customization supported. We can adjust welding length, workpiece diameter range, upgrade hydraulic clamping, add laser seam tracking, and match TIG/MIG/Plasma welding power sources. Voltage can be modified to 220V/415V for different countries.
Q5: What supporting equipment can be matched with this straight seam welder?
A: It can form a complete production line with our welding turning rollers, welding positioners and circumferential seam welding machines. We provide whole-line solution design.
Q6: How long is the warranty period?
A: Core electrical and transmission parts enjoy 1-year warranty. We supply free spare parts within warranty and offer lifelong online technical guidance.
