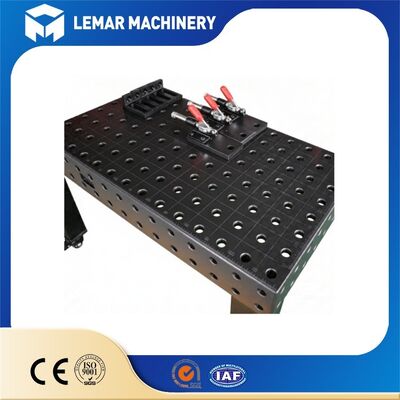

D16 Modular 3D Assembly Table with Quick Locking Pin System
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
D16 modular welding fixture table
,3D assembly table with locking pins
,quick-lock welding fixture table
The D16 Modular 3D Assembly Table with Quick Locking Pin System is your all-in-one modular 3D welding fixture table for precision assembly and metal fabrication. Featuring a complete D16 Φ16 hole grid and five-sided machining design, paired with labor-saving quick lock pins for tool-free fast clamping, this flexible 3D assembly platform allows infinite free combination of positioning blocks, risers and clamps to fit diverse workpieces. Reduce fixture changeover time by over 80% while maintaining consistent micron-level positioning precision; ideal for small workshops, R&D prototyping labs and compact robotic welding workstations requiring lightweight, space-saving modular fixturing solutions.
| Tabletop Size (Length × Width × Thickness) | Grid Pitch | Locating Hole Diameter | Flatness Accuracy | Repeat Positioning Accuracy |
|---|---|---|---|---|
| 1000mm × 1000mm × 100mm | 50mm × 50mm (±0.05mm) | Φ16mm (Tolerance d10) | ≤0.1mm/m | ±0.03~0.05mm |
| 1200mm × 1000mm × 100mm | 50mm × 50mm (±0.05mm) | Φ16mm (Tolerance d10) | ≤0.1mm/m | ±0.03~0.05mm |
| 1500mm × 1000mm × 100mm | 50mm × 50mm (±0.05mm) | Φ16mm (Tolerance d10) | ≤0.1mm/m | ±0.03~0.05mm |
| 2000mm × 1000mm × 100mm | 50mm × 50mm (±0.05mm) | Φ16mm (Tolerance d10) | ≤0.1mm/m | ±0.03~0.05mm |
| 2400mm × 1200mm × 100mm | 50mm × 50mm (±0.05mm) | Φ16mm (Tolerance d10) | ≤0.1mm/m | ±0.03~0.05mm |
| Customizable (Max 4000mm × 2000mm) | 50mm × 50mm (Fixed) | Φ16mm (Fixed) | ≤0.1mm/m | ±0.03~0.05mm |
- 5-sided 3D machined design for multi-angle workpiece clamping
- One-hand quick locking pin system, no extra tools required
- Universal D16 modular fixtures, reusable for all product batches
- Gas nitrided anti-spatter, anti-wear tabletop for long service life
- Steel / cast iron two material choices for light / heavy production
- Splicable standard sizes + full OEM customized dimensions
- Fully adaptable to automatic robotic welding cells
- Complete supporting legs and safety accessory packages optional
HT300 Cast Iron Table: Service life of over 10 years under normal conditions; the nitrided layer offers high wear resistance, with localized damage occurring only from extreme impacts.
Q355 Steel Plate Table: Service life of 5-8 years; suitable for light-duty sheet metal work, though slight deformation may occur with prolonged high-temperature use.
Quick-Lock Pin Wear Parts: Steel balls typically require replacement after 2-3 years of normal use at very low cost; the entire fixture module set is reusable, eliminating the need for single-use consumables.
Comparison with Traditional Tooling: Dedicated welding fixtures are often scrapped after just 1-2 years, whereas flexible modular systems can be reconfigured and reused indefinitely, reducing consumable costs by over 70%.
- Tabletop packaged with an independent wooden frame, vacuum-sealed for rust prevention, featuring foam protection for the nitrided surface and reinforced wooden corner guards.
- Fixtures and quick-locking pins sorted and packed in waterproof cartons; includes a complete assembly manual and precision inspection report.
- Standard export configuration for sea freight includes moisture-absorbing desiccant and anti-rust film to prevent corrosion from marine salt spray.
- Split shipments available: the tabletop can be shipped first, with accessories sent in subsequent batches to reduce individual logistics costs.
Want to get detailed specifications and the best factory price of the D16 Modular 3D Assembly Table with Quick Locking Pin System? Submit your inquiry now, and our sales engineer will send you full catalog, dimension table and matching fixture solution within 24 hours. Custom size and OEM service are available upon your request.
