10kg Small Welding Positioner for Mini Workpiece Circular Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
10kg welding positioner for mini workpieces
,small rotary welding positioner with circular welding
,mini workpiece welding positioner with 10kg capacity

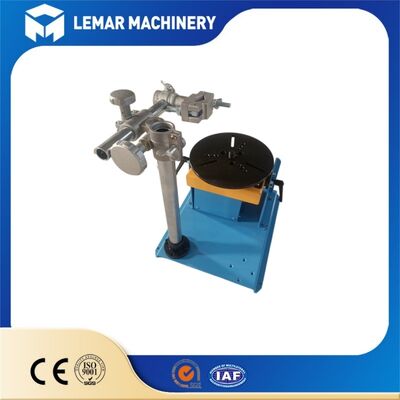

LEMAR 10kg welding positioner is mini rotary welding auxiliary equipment specially designed for tiny cylindrical and disc workpieces within 10kg load limit.
Equipped with variable frequency speed regulation and tiltable worktable, it keeps welding seams horizontal to realize smooth MIG/TIG automatic circular welding.
Ultra-compact body saves workshop space, optimizes welding consistency and eliminates hidden dangers caused by manual workpiece flipping.
| Item | Specification |
|---|---|
| Model | ZHB-10 Welding Positioner |
| Max Rated Load | 10kg |
| Rotation Speed Range | 0.1-4rpm, VFD stepless adjustable |
| Table Tilting Angle | 0°-90° |
| Standard Table Diameter | Φ200mm (customizable) |
| Rotation Motor Power | 0.25kW |
| Tilting Mode | Manual screw tilt, electric tilt optional |
| Control Mode | Independent cabinet + handheld remote pendant |
| Electrical Protection Level | IP54 |
| Certifications | CE, ISO9001 |
| Factory Test Standard | 10-hour full-load running aging test |
Flexibly adjust processing angle to adapt micro flanges, small elbows, miniature tank heads and tiny pipe connectors.
0.1-4rpm adjustable rotation speed with digital display, steady operation without jitter to meet precision micro welding requirements.
Integral cast iron frame with vibration reduction design, occupies minimal space for small batch processing workshops.
- Matched with separate control box and handheld remote for rotation & tilt operation
- Built-in overload, overcurrent and emergency stop protection
- Self-locking tilt structure locks table angle firmly during welding
- IP54 dustproof electrical cabinet adapts complex workshop environment
Custom table diameter, three-jaw chuck, foot switch and wireless remote control. All units pass 10-hour full-load aging test before shipment.
- Micro pipe fitting girth welding: small elbows, miniature tees, tiny flanges
- Welding for mini pressure vessel heads and thin-wall stainless small barrels
- Circular seam processing of micro valve bodies and precision hardware accessories
- Polishing, grinding and surfacing welding of disc miniature parts
- Machining small hydraulic cylinder heads and miniature auto spare parts
- Horizontal welding position greatly improves welding surface quality and reduces polishing workload
- Miniature structure saves valuable workshop floor area
- Easy to operate, a single welder can independently complete full-circle welding
- Cast iron base ensures stable rotation without shaking during processing
- Low running noise, long service life and simple daily maintenance
A: Ultra-light small metal parts below 10kg, including micro flanges, tiny pipe fittings, miniature valve bodies and mini cylinder heads.
A: Yes, customized supporting chuck fixtures can be provided according to your workpiece size.
A: Synchronous linkage control function can be customized to build micro automatic welding production lines.
A: The standard version is manual tilting; electric tilting structure can be customized separately.
