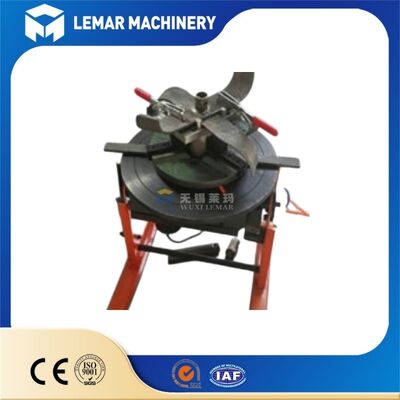

50kg Welding Positioner for Small Workpiece Circular Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 55.00cm * 55.00cm * 60.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,T/T,Western Union,D/P |
| Supply Capacity: | 500 units/month |
50kg welding positioner for small workpieces
,rotary welding positioner for circular welding
,small workpiece welding positioner with 50kg capacity
Our 50kg welding positioner is compact rotary auxiliary welding equipment for small cylindrical and disc workpieces. It rotates workpieces steadily to finish circumferential welding, assembly and grinding.
Equipped with VFD stepless speed regulation and tilting table, it keeps welding seams horizontal for stable MIG, TIG and SAW welding. Compact layout saves workshop space, improves welding uniformity and eliminates safety hazards caused by manual workpiece flipping.
| Item | Specification |
|---|---|
| Model | ZHB-50 Welding Positioner |
| Rated Loading Capacity | 50kg |
| Rotation Speed | 0.1-3rpm, VFD stepless adjustable |
| Table Tilting Range | 0°-90° |
| Standard Table Size | Φ300mm (customizable) |
| Rotation Motor Power | 0.37kW |
| Tilting Mode | Manual screw tilt, electric tilt optional |
| Control Configuration | Control box + handheld remote pendant |
| Electrical Protection Class | IP54 |
| Certifications | CE, ISO9001 |
| Factory Test Standard | 12-hour full-load aging test |
- Horizontal welding surface effectively improves overall weld quality
- Small-size structure occupies less workshop space
- Simple operation, single welder can complete full-circle welding independently
- Cast iron base ensures stable rotation without shaking
- Low operation noise, long service life and low maintenance cost
The 50kg welding positioner uses variable frequency motor and worm reducer to drive the worktable to rotate. The tiltable platform adjusts the workpiece angle to keep welding lines at horizontal position. Constant steady rotation realizes continuous automatic circular welding of light metal parts.
- Circumferential welding of pipe fittings: elbows, tees and flanges
- Welding of small pressure vessel heads and mini stainless steel tanks
- Circular seam processing for valve bodies and mechanical hardware parts
- Surface polishing, grinding and overlay welding of disc-shaped workpieces
- Machining of auto spare parts and small hydraulic cylinder barrels
- Independent control cabinet plus handheld remote for forward, reverse, stop and speed adjustment
- Overload, overcurrent and emergency stop safety protection
- Self-locking tilting mechanism to fix table angle firmly
- IP54 dustproof and waterproof electrical cabinet
A: Light workpieces within 50kg, including flanges, pipe fittings, valve bodies, mini tank heads and small cylinders.
A: Yes, customized matching chuck fixtures can be provided as your demand.
A: Synchronous linkage control can be customized to build automatic welding production lines.
A: Standard model is manual tilting; electric tilting structure can be customized separately.
