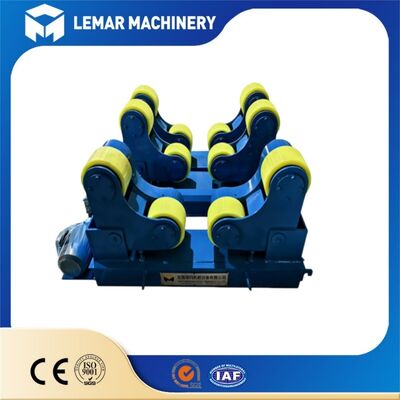

10 Ton Self-Aligning Tank Turning Rolls for Vessel Girth Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 220.00cm * 130.00cm * 130.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
10 ton welding rotator for vessel girth welding
,self-aligning tank turning rolls
,welding rotator with self-aligning function
Our 10 Ton Tank Turning Rolls, also known as welding rotators, are designed to rotate cylindrical vessels for girth welding, assembly, and polishing operations. Each set includes one drive unit and one idler unit, providing even 10-ton load bearing capacity.
Featuring a self-aligning structure, these turning rolls automatically adapt to various tank diameters without manual roller adjustment. Equipped with VFD speed control and wear-resistant PU rollers, they deliver stable, slip-free rotation suitable for SAW, MIG, and TIG welding applications.
As standard auxiliary equipment for tank manufacturing facilities, these turning rolls significantly improve girth weld quality, reduce labor costs, and eliminate safety risks associated with manual tank handling.
| Item | Specification |
|---|---|
| Model | ZTG-10 Self-aligning Tank Turning Rolls |
| Rated Load | 10 Ton |
| Suitable Tank Diameter | 400mm-3200mm |
| Roller Material | High-density PU, steel roller optional |
| Roller Size | Φ280×120mm |
| Rotation Speed | 0.1-1rpm, VFD stepless speed regulation |
| Driving Mode | Dual motor synchronous drive |
| Motor Power | 0.55kW × 2 |
| Control System | Independent cabinet + handheld remote |
| Electrical Protection Grade | IP54 |
| Structure | Self-aligning automatic centering |
| Application | Storage tank, pressure vessel, boiler girth welding & polishing |
| Certificates | CE, ISO9001 |
| Factory Test | 24-hour full-load running test before shipment |
Automatically adjusts roller angles to accommodate tanks from 400-3200mm diameter range, eliminating manual calibration and reducing workshop setup time by 60% for mass production applications.
Constructed with thickened annealed carbon steel base, providing anti-deformation performance under full 10-ton load capacity. Uniform bearing distribution prevents tank shell denting and distortion.
Standard high-density PU rollers minimize vibration and noise while protecting carbon and stainless steel tank surfaces. Steel rollers available as optional for high-temperature welding applications.
0.1-1rpm adjustable speed range with digital display enables smooth speed transitions for precision welding and polishing operations. Compatible with welding column boom manipulators for automated welding stations.
- Separate control cabinet with handheld remote for forward/reverse/stop/speed adjustment
- Comprehensive overload, overcurrent and emergency stop protection systems
- Dual synchronous drive motors prevent tank slipping during operation
- IP54 dustproof and waterproof electrical cabinet suitable for demanding workshop environments
- Storage Tank Fabrication: Ideal for circumferential welding, polishing and anti-corrosion lining of carbon steel and stainless steel water tanks, oil tanks and chemical storage tanks.
- Pressure Vessel & Boiler Manufacturing: Perfect for girth welding of boiler barrels, heat exchanger shells, gas separators and various industrial pressure vessels.
- Pipe & Cylinder Processing: Suitable for assembly and welding of large-diameter cylindrical pipes and tubular workpieces.
- Surface Treatment & Polishing: Supports uniform rotation for tank internal and external polishing, painting and anti-rust treatment applications.
- Mechanical Equipment Shell Welding: Widely used for cylindrical mixer drums, tower barrels and other industrial cylinder welding projects.
- Utilizes integral thickened steel plate welding with stress relief annealing process to ensure structural stability
- All electrical components sourced from international reputable brands for durable and safe operation
- Strict 24-hour full-load continuous running test conducted before delivery
- Comprehensive inspection of rotation speed, load capacity, brake system and safety protection functions
- CE & ISO certified, fully compliant with international industrial welding standards
