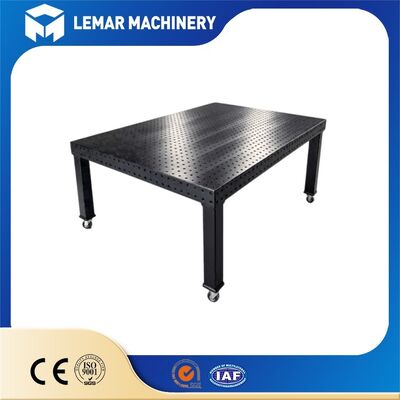

Heavy Load D16 3D Welding and Assembly Platform Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole Standard:
D16, Hole Diameter Φ16mm, Grid Spacing 50×50mm
Structure Type:
5-sided 3D Clamping Design (top + Four Vertical Sides With Holes)
Workpiece Height:
Standard 630mm, Adjustable ±30mm Via Leveling Feet
Flatness Tolerance:
≤0.1mm Per Square Meter
Hole Position Tolerance:
±0.03mm
Itriding Layer Thickness:
0.25–0.35mm
Hardness:
HV600+
Material Options:
HT300 High Strength/Q355 Low Alloy Steel
Length × Width:
1000×1000mm ~ 4000×2000mm
Highlight:
Heavy Load D16 welding table
,3D welding assembly platform
,welding fixture table with stand
Product Description
Product Introduction
Our Heavy Load D16 3D Welding and Assembly Platform Table is a core flexible tooling system for metal processing, designed to replace traditional fixed welding jigs. It integrates welding, assembly, inspection, and robot workstation positioning functions, perfectly adapting to small-batch and multi-variety production needs in industrial manufacturing.
The "D16" represents the core standard hole system (Φ16mm aperture, 50×50mm grid pitch), which is fully compatible with DIN and ISO universal fixture standards, realizing global fixture interchangeability. The "Heavy Load" design adopts thickened panel, double-layer dense ribs and fully enclosed load-bearing base, ensuring no deformation under long-term high-temperature welding and heavy load.
Size Specifications
| Overall Size L×W×H (mm) | Evenly Distributed Load | Single Point Max Load | Available Material |
|---|---|---|---|
| 1000 × 1000 | 2 Ton | 1 Ton | Q355 Steel / HT300 Cast Iron |
| 1200 × 1000 | 2.5 Ton | 1.2 Ton | Q355 Steel / HT300 Cast Iron |
| 1500 × 1000 | 3 Ton | 1.5 Ton | Q355 Steel / HT300 Cast Iron |
| 1500 × 1200 | 3.5 Ton | 1.8 Ton | Q355 Steel / HT300 Cast Iron |
| 2000 × 1000 | 4 Ton | 2 Ton | Q355 Steel / HT300 Cast Iron |
| 2000 × 1200 | 5 Ton | 2.5 Ton | Q355 Steel / HT300 Cast Iron |
| 2000 × 1500 | 6 Ton | 3 Ton | Q355 Steel / HT300 Cast Iron |
| 2000 × 2000 | 8 Ton | 3.5 Ton | Q355 Steel / HT300 Cast Iron |
| 2500 × 1200 | 6.5 Ton | 3 Ton | Q355 Steel / HT300 Cast Iron |
| 2500 × 1500 | 7.5 Ton | 3.2 Ton | Q355 Steel / HT300 Cast Iron |
| 3000 × 1200 | 7 Ton | 3.2 Ton | Q355 Steel / HT300 Cast Iron |
| 3000 × 1500 | 8.5 Ton | 3.8 Ton | Q355 Steel / HT300 Cast Iron |
| 3000 × 2000 | 9.5 Ton | 4 Ton | Q355 Steel / HT300 Cast Iron |
| 4000 × 1500 | 9 Ton | 4 Ton | Q355 Steel / HT300 Cast Iron |
| 4000 × 2000 | 10 Ton | 4.5 Ton | Q355 Steel / HT300 Cast Iron |
Core Performance Advantages
- Exceptional Load-Bearing Capacity: Standard static load capacity: 2 tons; heavy-duty integrated units support up to 5 tons; large platforms handle up to 8-10 tons. Thickened top plate with dense rib structure prevents sagging during heavy-duty welding tasks.
- 3D Five-Sided Clamping: Standard D16 holes on top surface and all four vertical sides allow vertical, tilted, or inverted clamping of irregular components without additional risers.
- Modular and Versatile: Compatible with full range of D16 standard accessories for rapid tooling changes in under 10 minutes, ideal for high-mix, low-volume production.
- High-Temperature Resistance: Cast iron or nitrided steel construction ensures dimensional stability under prolonged high-heat exposure with 5-10 year service life.
- Scalable Design: Multiple tables can be seamlessly joined to create expansive assembly surfaces for large-scale components.
Core Product Value
- Cost Reduction: Eliminates need for dedicated welding jigs; single platform accommodates multiple product types
- Efficiency Gains: Rapid tooling setup reduces changeover time by 70% and eliminates manual marking
- Quality Improvement: Standardized reference hole patterns ensure high workpiece repeatability
- Durability: Heavy-duty construction ensures long-term stability in harsh workshop environments
- Versatility: Multi-purpose system suitable for welding, assembly, alignment, inspection, and robotic positioning
Export Qualifications & Certifications
- International Safety Certification: CE certification (EU-wide compliance with machinery safety standards)
- System Certification: ISO 9001 Quality Management System
- Standards Compliance: National Standard GB/T22095 and European DIN standards for tooling hole systems
- Factory Documentation: Material test reports, hardness test reports, precision inspection records, and certificates of conformity
- Global Export Compatibility: Complete HS codes; supports FOB, CIF, and DDP trade terms for worldwide markets
