D28 Modular Welding Jig Table with 28mm Diameter Holes for Securing Components
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Working Surface:
5 Sided 3D Structure
Main Material Option:
HT300 Cast Iron /Q355 Structural Steel
Standard Table Thickness:
200 Mm
Surface Treatment:
Integral Nitriding
Load Type:
Even Load And Concentrated Load
Expand Method:
Splice With Dedicated Connecting Pins
Matching Accessories:
Full Set D28 Modular Fixture Kits
Grid Spacing:
100 Mm × 100 Mm
Locating Hole Size:
28 Mm
Highlight:
modular welding jig table 28mm holes
,welding fixture table for securing components
,D28 welding table with modular design
Product Description

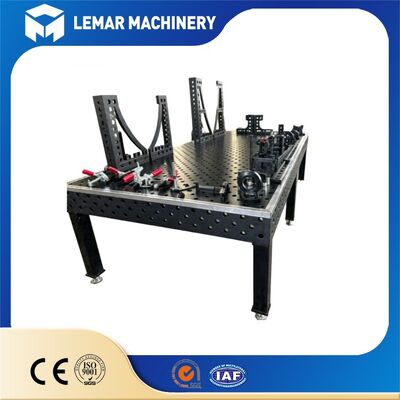

D28 Modular Welding Jig Table with 28mm Diameter Holes for Securing Components
Meet our D28 Modular Welding Jig Table with 28mm Diameter Holes for Securing Components — the all-in-one 3D clamping platform for heavy metal welding.
- Full 5-sided working surface with standard 28mm locating holes to secure every component from horizontal & vertical directions
- Modular universal design: all D28 fixtures fit seamlessly, no custom jigs required
- Stress-relieved cast iron / Q355 steel body with hard nitriding finish, anti-rust, anti-spatter & high load-bearing
- Precise 100×100mm grid ensures repeatable accuracy, cuts fixture setup time drastically
- Spliceable sizing + multiple leg options, compatible with manual & robotic welding lines
Built for heavy fabrication, chassis, structural steel and new energy part production, this D28 welding jig table brings lasting precision and huge cost savings to your workshop. Contact us to get full dimension lists and matching fixture packages today.
D28 Modular Welding Jig Table Size Specification Chart
| Table Dimension (L×W mm) | Cast Iron Net Weight | Steel Structure Net Weight | Standard Table Thickness |
|---|---|---|---|
| 1000×1000 | 480kg | 270kg | 200mm |
| 1200×1000 | 560kg | 320kg | 200mm |
| 1500×1000 | 720kg | 420kg | 200mm |
| 2000×1000 | 960kg | 550kg | 200mm |
| 2400×1200 | 1380kg | 790kg | 200mm |
| 3000×1500 | 2120kg | 1210kg | 200mm |
Product Advantages
- 3D modular design: Five side working surface with 28mm standard holes. All matching parts can be combined freely. Cut cost of custom jigs.
- High rigidity and stable precision: Double stress relief treatment. Cast iron or Q355 steel optional. No deformation under heavy loads. Fit manual and robotic welding.
- Full nitriding surface: Anti rust anti high temperature and anti welding spatter. Good conductivity for stable welding arc. No harmful smoke during welding.
- Fast fixture assembly: Standard modulus structure without repeated measuring. Save over 60 percent clamping time for mixed batch production.
- Flexible expansion and multiple supports: 3D Welding Tables can be spliced for large workpieces. Fixed adjustable and caster legs are available. Custom sizes supported.
- Easy to maintain and long service life: Smooth holes prevent slag blockage. Simple daily cleaning. Damaged holes can be repaired. Service life up to 15 years.
- Certified for global sales: Complete CE ISO9001 and SGS reports. English manual and professional technical support provided.
Workshop Environment Adaptability
High-Temperature Workshops: In steel mills and heat treatment workshops where summer temperatures exceed 45°C, cast iron—with its low thermal deformation coefficient—offers twice the dimensional stability of steel-structured tabletops, ensuring flatness remains unaffected by rising temperatures.
Humid Coastal Areas / Electroplating Workshops: The integral nitrided layer is dense and resistant to water vapor as well as weak acids and alkalis, preventing rust during long-term use in environments with airborne moisture; unlike black-oxide cast iron models, these show no extensive rusting even after three years of service.
Dusty Heavy-Duty Workshops: The smooth inner walls of the positioning holes prevent welding spatter and iron filings from becoming lodged, simplifying daily cleaning; a "dead-zone-free" design allows wire brushes to reach the very bottom of the holes to clear debris, preventing pins from jamming or becoming difficult to install and remove.
Export Packaging
FAQ
Do you supply complete fixture sets together with the table?
Yes. We can match full D28 accessories including locking pins, angle blocks, support columns and quick clamps as one package.
Yes. We can match full D28 accessories including locking pins, angle blocks, support columns and quick clamps as one package.
Can flame cutting or plasma cutting be done directly on the tabletop?
Not recommended. Long time high temperature cutting will damage the nitriding layer and cause table deformation. Prepare separate cutting platform.
Not recommended. Long time high temperature cutting will damage the nitriding layer and cause table deformation. Prepare separate cutting platform.
Is there an English operation manual?
We provide full English user guide and operation video for all overseas clients. Online technical support is available after delivery.
We provide full English user guide and operation video for all overseas clients. Online technical support is available after delivery.
Is nitriding surface treatment standard for all 3D welding tables?
Yes. All finished tables get full nitriding treatment. It is anti rust, anti high temperature and easy to clear welding slag. No toxic smoke while welding.
Yes. All finished tables get full nitriding treatment. It is anti rust, anti high temperature and easy to clear welding slag. No toxic smoke while welding.
How do you pack the welding tables for sea shipment?
Products are wrapped with waterproof film first, then packed in fumigation free plywood cases with pallet base to avoid damage during long transport.
Products are wrapped with waterproof film first, then packed in fumigation free plywood cases with pallet base to avoid damage during long transport.
Looking for high precision modular welding bench? Choose the D28 Modular Welding Jig Table with 28mm Diameter Holes for Securing Components.
Flexible splicing design, heavy load capacity and long service life for all metal fabrication industries.
Leave your message through the inquiry button below, we will offer tailored solution and competitive price immediately.
