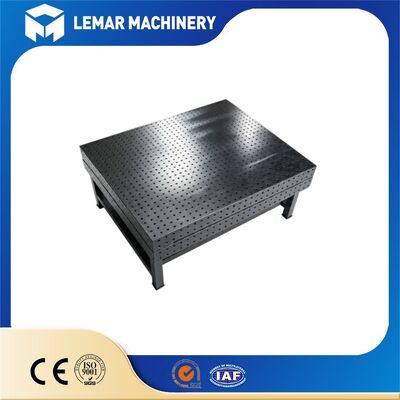

D16 Fixture Table with 50mm Hole Pitch for Flexible Setup
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
D16 fixture table with 50mm hole pitch
,welding fixture table for flexible setup
,D16 welding table with precise hole spacing
Welcome to our product page! Introducing our D16 Fixture Table with 50mm Hole Pitch — a lightweight, high-precision modular tooling solution engineered specifically for small-batch, multi-variety production scenarios.
Designed to replace traditional custom-made jigs that are costly and time-consuming to produce, this D16 fixture table enables quick setup in just 15-30 minutes, cutting fixture manufacturing costs by over 70%. With its precise 50mm hole grid and flexible clamping design, it is the ideal choice for precision sheet metal processing, medical equipment parts production, 3C device assembly, and small robotic welding workstations, helping you achieve higher efficiency and better workpiece consistency in your production line.
| Parameter | Standard Value | Optional Customization |
|---|---|---|
| Hole System | Φ16mm standard holes, 50mm hole pitch (±0.05mm) | -- |
| Material | Q355B high-strength welded steel | HT300 cast iron (for high-precision robot stations) |
| Surface Treatment | Low-temperature gas nitriding | Hard chrome plating (for precision assembly/inspection) |
| Flatness | 0.10mm/1000mm (industrial grade) | 0.05mm/1000mm (robot grade) |
| Load Capacity | 2 tons single point, 5 tons overall | Heavy-duty version (custom load) |
| Standard Sizes (L×W) | 800×1000mm, 1000×1000mm, 1200×2400mm | Custom sizes up to 4000×2000mm, octagonal seven-sided type |
| Accessories Compatibility | All D16 standard modular accessories | Custom non-standard accessories available |
The table adopts Q355B low-alloy structural steel with a closed reinforced rib frame, integrated welded and then subjected to 8-12 hours of vibration aging treatment to completely release internal welding stress, avoiding warpage and deformation during long-term use. For high-precision scenarios, HT300 gray cast iron one-piece casting is optional, with better shock absorption performance and no welding stress.
Processed by 5-axis CNC gantry milling and precision CNC drilling, the 50mm hole pitch is strictly controlled within ±0.05mm, and the holes are equipped with protective countersinks to prevent wear of positioning pins. The nitrided surface forms a dense hard layer, which is resistant to high temperature, welding spatter and corrosion, and will not peel off like ordinary paint surfaces, ensuring long-term precision stability.
Unlike single-sided hole tables, our D16 welding table has dense 50mm grid holes on the top and four sides, supporting vertical, horizontal, and oblique clamping. It can extend support for oversized workpieces, avoid interference with robotic welding paths, and is suitable for various complex-shaped small parts and thin sheet metal clamping without deformation.
Standard sizes (1000×2000mm) are available from stock with a 7-15 day lead time; custom non-standard sizes, octagonal/seven-sided tables, and thickened heavy-duty welded tables require 15-40 days. We support FOB (domestic ports), CIF (overseas ports), EXW, and DDP (door-to-door) trade terms.
Domestic D16 50mm grid models feature ±0.05mm tolerance, whereas comparable imported brands typically offer ±0.08mm.
Features a 0.25-0.35mm nitrided layer (compared to 0.15-0.2mm for most imports), resulting in double the wear resistance and service life.
Adheres to the global D16 standard; accessories are compatible with European and American pins and clamps, allowing customers to reuse existing equipment.
For welding tables of identical size and precision, the procurement cost is only 40%-60% that of European imported brands.
Factory direct supply of D16 Fixture Table with 50mm Hole Pitch
Flexible modular welding fixture table for sheet metal, robotic welding and precision assembly.
Custom sizes, nitrided surface, full D16 accessories available.
Contact us for bulk wholesale price.
