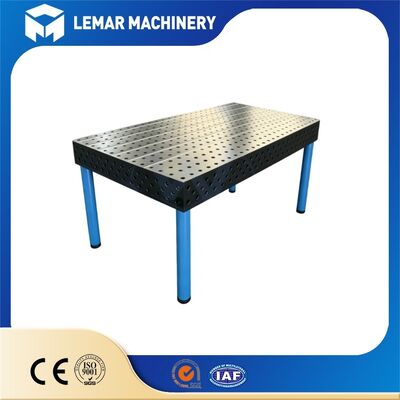

D28 Steel Cast Iron Modular Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/P,D/A,T/T,Western Union |
| Supply Capacity: | 500 units/month |
D28 steel welding table
,cast iron modular welding table
,welding fixture table with warranty
Our D28 Steel Cast Iron Modular Welding Table is an industrial-grade 3D flexible welding table built for precision metal fabrication, batch production and automated robotic welding stations. Available in HT300 cast iron and Q355 solid steel material options, this D28 modular welding table adopts standard Φ28mm hole system with 100×100mm grid spacing, fully compatible with all international D28 welding jigs, clamps and positioning accessories.
Equipped with 5-sided mounting holes and plasma nitrided anti-wear surface, our heavy duty modular welding table eliminates the cost of custom welding fixtures, cuts workpiece welding deformation, and drastically improves production efficiency for steel structure, automotive chassis, sheet metal and engineering machinery workshops.
Whether you need a single small welding bench or spliced large welding platform for mass manufacturing, our D28 cast iron/steel welding table delivers stable flatness, long service life and consistent positioning accuracy for all welding and assembly jobs.
| Specification Item | Detailed Parameters |
|---|---|
| Full Product Name | D28 Steel Cast Iron Modular Welding Table |
| Standard Hole System | Φ28mm precision counterbore hole, hole tolerance: +0.065 ~ +0.149mm |
| Grid Spacing | 100mm × 100mm uniform hole grid |
| Side Hole Layout | 3 rows of holes on four sides, support 5-sided 3D clamping & positioning |
| Two Optional Materials | 1. HT300 Integral Cast Iron 2. Thickened Q355B Low Alloy Steel |
| Tabletop Thickness | 24mm-27mm |
| Precision Grade Options | 1. Industrial Standard: Flatness ≤0.1mm/1000mm, hole distance ±0.05mm 2. Robot Precision Grade: Flatness ≤0.05mm/1000mm, hole distance ±0.03mm |
| Verticality Standard | ≤0.1mm / 200mm |
| Surface Treatment | Plasma Nitriding (0.2-0.3mm nitrided layer, HV450-1000 hardness) Optional economy black finish without nitriding |
| Stress Relief Process | High-temperature annealing + natural double aging treatment |
| Standard Overall Height | 800mm (custom hydraulic lifting leg support available: 600-1000mm) |
| Common Standard Sizes (mm) | 1000×1000 / 1200×800 / 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 Extra large spliced sizes fully customizable |
| Uniform Static Load | Cast Iron Version: 2-6 tons Steel Version: Up to 10 tons max uniform load |
| Supporting Accessories | Adjustable fixed legs / brake mobile casters / hydraulic lifting stands |
| Built-in Design | Reserved welding grounding bolt, pre-buried lifting rings, laser engraved X/Y coordinate scale |
| Compatible Fixtures | Global universal D28 standard clamps, lock pins, angle blocks, V-blocks, support posts |
| Export Certifications | ISO9001, CE mechanical safety certificate |
| Export Packing | IPPC fumigated solid wooden case with waterproof inner film & hole protective plugs |
| HS Code | 8515900090 |
- 3D Full-Space Clamping: Features a five-sided hole pattern and 3D framework design that eliminates clamping blind spots for complex, multi-angled workpieces; enables single-setup positioning and processing for frames, housings, and piping.
- Flexible Versatility & Rapid Changeover: Supports multi-variety, small-batch production without the need for new jigs; allows for tooling switches between different workpieces in under 30 minutes, significantly boosting workshop efficiency.
- Stable Precision & Minimized Rework: Utilizes a unified reference hole system to ensure minimal repeat positioning errors and high dimensional consistency in welded components.
- High-Temperature & Corrosion Resistance: Nitrided surfaces or cast iron construction withstand high-temperature weld spatter; resistant to scratching and rusting during long-term use.
- Expandable Compatibility: Multiple welding tables can be joined to extend length or width, accommodating the integral welding of large steel structures and integrating seamlessly with robotic automated welding stations.
Sample Orders: Standard 1000×1000mm in-stock samples, including a basic fixture starter kit; individually packed in wooden crates and accompanied by full material and precision inspection reports—ideal for overseas showroom displays or workshop testing.
Bulk Order Lead Times: Standard-size cast iron welding tables: 15-20 days; nitrided welding steel plate tables: 15-20 days; extra-large modular (segmented) tables: 25-30 days.
Split-shipment support: Table tops, legs, and fixtures can be shipped in separate containers to reduce individual container weight and save on ocean freight costs.
Customizable Base Dimensions: Standard sizes ranging from 1m×1m to 3m×1.5m available in stock; custom options include extra-long modular tables (4m, 6m, 8m) for welding large construction machinery and container frames.
Custom Structural Designs:
- Recessed D28 Welding Table: Suitable for large chassis and forklift frames
- Raised Integrated Side-Wall Table: Provides elevated five-sided positioning; ideal for tooling extra-long tubular components
- D28 + T-Slot Hybrid Table: Combines flexible positioning capabilities with heavy-duty clamping options
- Heavy-Duty Customization: Features thickened, anti-slip side edges and reinforced support ribs; designed for ultra-heavy loads
Custom Surface Finishes: Three options available—gas nitriding, blackening, or raw cast finish; laser engraving of customer logos and coordinate markings is also available.
Need reliable D28 modular welding tables with CE certification and fast lead time?
Tell us your ideal table size, material choice (cast iron or steel) and supporting accessories you need.
We will reply with professional solution and competitive factory price within 24 hours. Contact us for your free quote today!
