D16 3D Welding Table with High Flatness Tolerance for Quality Assembly Tasks
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200 |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,T/T,D/P,Western Union |
| Supply Capacity: | 500 units/month |
D16 3D welding table
,welding table with high flatness
,welding fixture table for assembly

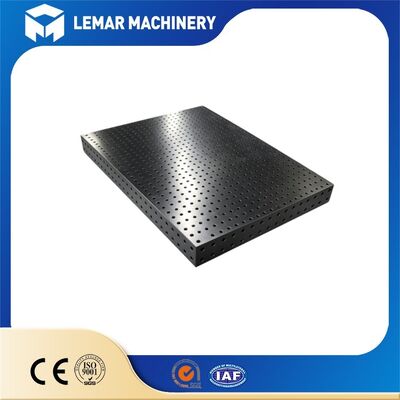

Our D16 3D Welding Table with High Flatness Tolerance is a modular flexible fixturing platform specially engineered for strict quality assembly tasks. Unlike ordinary welding benches with loose dimensional accuracy, this D16 series features ultra-tight flatness tolerance, dense Φ16 hole grid and full five-sided positioning holes, enabling rapid 3D clamping of complex small & thin metal parts. It unifies welding, assembly, inspection and calibration on one single datum surface, drastically cutting custom fixture costs and improving batch production consistency for precision workshops and automated robotic welding lines.
| Item | Specification |
|---|---|
| Hole Type | D16, Φ16 H7 precision reamed hole |
| Hole Spacing | 50mm × 50mm uniform grid |
| Side Wall Holes | 3 rows full D16 holes on four sides |
| Standard Table Sizes | 1000×500 / 1000×1000 / 1200×800 / 1500×1000 / 2000×1000mm (custom size available) |
| Standard Working Height | 800mm |
Ideal for precision sheet metal, small frameworks, and thin-walled component assembly; eliminates the need for manual marking and alignment, allows single-unit fixture setup in under 10 minutes, ensures highly consistent dimensions across batch assemblies, and reduces rework rates by over 40%.
- Features a high-flatness reference surface that ensures stability for robotic vision positioning and trajectory programming, preventing dimensional drift during long-term repetitive welding
- A five-sided hole pattern enables multi-angle clamping (from above and all sides) for complex-shaped workpieces, ensuring the robot operates without interference or blind spots
- Cast iron construction offers vibration damping and resistance to thermal deformation, preventing warping during prolonged continuous welding and ensuring consistent robotic processing
- Supports offline programming and fixture templates; a single D16 welding table can store dozens of workpiece fixture configurations, allowing for one-click production changeovers
Beyond welding, the system serves multiple functions, including precision assembly, dimensional inspection, calibration and prototyping, adhesive bonding, drilling and tapping, and acting as a reference platform for inspection jigs.
The unit complies with CE industrial safety standards and is suitable for export to factories in the EU, Southeast Asia, and North America; inspection reports regarding materials and precision can be provided with the shipment.
The tabletop is covered with anti-rust film and reinforced with a wooden base; fixtures are packed separately in wooden crates to ensure protection against moisture and rust during ocean transport.
- 2-year warranty on the main tabletop unit; 1-year warranty on tooling accessories
- Services include video installation guidance, tooling configuration plans, and robot workstation layout design
- Customization available: special dimensions, thickened tabletops, composite T-slots, and specialized positioning structures
Our technical sales team specializes in custom D16 3D welding table solutions for small thin metal parts, prototype workshops and robotic welding stations.
Share your workpiece dimensions, workshop layout and tolerance requirements with us, we will send tailored drawings, detailed quotation and fixture matching plan within 24 hours.
