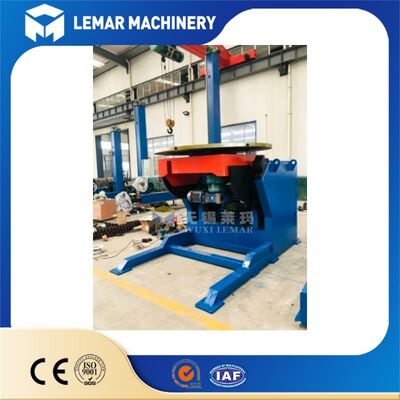

Heavy Load 50T Welding Positioner for Large Boiler & Tank Fabrication
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 600.00cm * 400.00cm * 200.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-50T
Model NO.:
BWJ-50T
Rotaion Speed:
0.2-2rpm
Tilting Angle:
0-135°
Max Loading Weight:
50 Ton Welding Positioner
Overturning Speed:
0.1rpm
Overturning Motor Power:
2*7.5kw
CNC:
Customized
Work With:
Welding Manipulator
Worktable T Slot Quantity:
6 T
Highlight:
50T welding positioner for boilers
,heavy load rotary welding positioner
,welding positioner for tank fabrication
Product Description
Heavy Load 50T Welding Positioner for Large Boiler & Tank Fabrication
Product Overview
The 50 Ton Heavy Welding Positioner is ultra-heavy load welding auxiliary equipment designed for oversized pressure vessels, large industrial boilers, wind tower segments and heavy steel structural parts. It features hydraulic automatic tilting and 360° variable speed rotary table, flipping heavy workpieces to flat welding position to improve weld quality and cut labor intensity. Widely adopted in petrochemical, boiler manufacturing, shipbuilding and heavy machinery factories worldwide.
Technical Parameters
| Item | Specification |
|---|---|
| Model | BWJ-50 Heavy Welding Positioner |
| Rated Bearing Load | 50 Ton (50000kg heavy dynamic load) |
| Max Tilt Angle | 0°-120° hydraulic automatic tilt |
| Rotary Speed | 0.05-1 r/min infinitely variable frequency speed |
| Turntable Diameter | Customizable 2500-4000mm machined T-slot table |
| Drive Mode | Main rotation: gear reducer; tilting: hydraulic cylinder drive |
| Control Mode | Wired cabinet + handheld remote, PLC linkage optional |
| Custom Voltage | 380V/415V/460V, 50/60Hz global standard |
| Certification | CE safety certificate, ISO9001 quality system |
Core Features
- Ultra-heavy load reinforced Q355 steel frame, anti-deformation for long-term 50-ton continuous working
- Hydraulic automatic tilting, adjustable tilt range 0-120°, stable and smooth flipping without workpiece shaking
- Precision stepless variable frequency rotation 0.05-1 r/min, constant torque for thick wall heavy parts
- Large machined T-slot turntable, flexible fixture mounting for different shaped heavy workpieces
- Dual control system: wired control cabinet + handheld remote, optional PLC automatic linkage
- Complete safety protection: overload cut-off, electromagnetic brake, emergency stop, CE & ISO9001 certified, customizable global industrial voltage
Matching Supporting Welding Equipment
We supply complete matched welding equipment to build integrated production lines for heavy workpieces:
- CNC plasma cutting machine for raw steel plate blanking
- Multi-spec welding rotators for long cylinder circular seam welding
- Welding manipulator matched with positioner for automatic welding
- Submerged arc welding machine for thick wall deep penetration welding
- Dust removal and welding fume purification auxiliary machines
Factory Production & Quality Control
- All main frame plates adopt Q355 low alloy high strength steel, overall annealing to eliminate welding stress
- Key transmission gears undergo carburizing quenching treatment for long service life
- Every finished machine runs 72-hour full load aging test before delivery
- Strict three-level inspection: blanking inspection, assembly inspection, finished product delivery inspection
- All electrical components adopt international famous brands to reduce failure rate
Common Client Technical Consultation
Q: What's the stable maximum bearing load of this positioner?
A: Rated dynamic load reaches 50 tons, suitable for all ultra-heavy cylindrical and structural workpieces.
Q: Can I lock any tilt angle during welding work?
A: Hydraulic stepless 0-120° adjustment, arbitrary angle stable locking for flat position welding.
Q: Is rotary speed compatible with thick boiler submerged arc welding?
A: Adjustable ultra-low speed 0.05-1r/min fits thick plate automatic welding perfectly.
Q: Can the equipment voltage be adjusted to match local factory power supply?
A: Custom 380V/415V/460V three-phase voltage supported with complete CE certificates.
Q: Can it link with other welding machines to form automatic production lines?
A: Optional PLC control system realizes synchronous linkage with welding manipulators.
Shopping Guide Tip
Please send us your maximum workpiece weight, outer diameter and local industrial voltage, we will design exclusive turntable size and send accurate quotation promptly.
