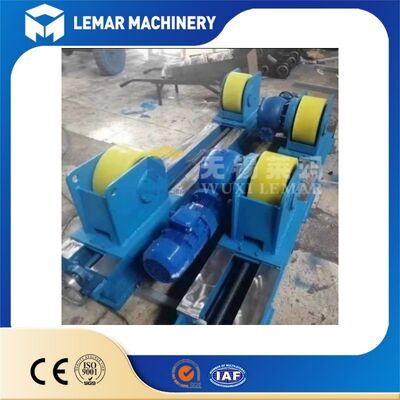

5 Ton Adjustable Boiler Cylinder Welding Rotator | Light Duty Tank Turning Rolls
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 220.00cm * 120.00cm * 130.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
KTG-05
Document
Model NO.:
KTG-05
Rotaion Speed:
0.1-1rpm
Voltage:
380V
Welding Turning Rolls:
Type Adjustable
Rated Load Capacity:
5000kg (5 Ton)
Roller Center Distance:
Manually Adjustable
Driving Form:
Dual Motor Dual Drive
Single Drive Motor Power:
1.5kw
Applicable Workpiece Outer Diameter:
φ300-φ2800mm
Highlight:
5 ton boiler welding rotator
,adjustable tank turning rolls
,light duty cylinder rotator
Product Description
5 Ton Adjustable Boiler Cylinder Welding Rotator | Light Duty Tank Turning Rolls
Product Overview
The 5 Ton Adjustable Boiler Cylinder Welding Rotator is a compact and cost-effective welding auxiliary machine, specially designed for small boiler shells, thin-wall pipes, material hoppers and mini storage tanks. Featuring manual screw adjustable span and low-vibration synchronous rotation, it ensures stable and uniform girth welding, greatly improving welding efficiency and reducing rework rate for small and medium metal fabrication workshops.
Technical Parameters
| Model | HGK-5 Adjustable Welding Rotator |
|---|---|
| Rated Load | 5 Ton (5000kg) |
| Applicable Diameter | 250mm - 2800mm |
| Rotation Speed | 0.3-3 r/min stepless speed |
| Standard Roller | Wear-resistant PU composite roller |
| Adjustment Method | Manual screw adjustable span |
| Control Mode | Wired + wireless dual control |
| Custom Voltage | 380V/415V/460V 50/60Hz |
| Certification | CE, ISO9001 |
Core Features
- Adjustable Roller Span – Manual screw adjustment flexibly fits cylinder diameters from 250mm to 2800mm, supporting mixed-size batch production.
- Anti-scratch PU Roller – Standard high-elastic PU rollers protect stainless steel, painted and polished workpiece surfaces without indentation or scratches.
- Stable Synchronous Rotation – Dual-motor synchronous drive ensures low-vibration steady operation for smooth and consistent girth welds.
- Stepless Frequency Speed Control – 0.3-3r/min adjustable speed perfectly matches thin-wall and medium-wall cylinder welding requirements.
- Dual Control System – Equipped with wired control box and wireless remote controller for flexible and convenient on-site operation.
- Global Safety Standard – Built-in overload and emergency stop protection, CE & ISO certified with customizable global industrial voltage.
Standard & Optional Accessories
Standard Accessories
- PU driving & driven roller set
- Frequency conversion control box & wireless remote
- Manual screw adjustment mechanism
- Overload & emergency stop safety device
- Complete installation bolts and cables
- English manual and factory test report
Optional Upgraded Accessories
- Solid steel / alloy steel rollers
- Hands-free foot switch
- Anti-drift limiting baffle
- High temperature resistant rollers
- Extended base frame for long cylinders
- Welding grounding conductive device
Application Scope
- Small hot water boiler cylinder girth welding
- Thin-wall pipe and heat exchanger tube processing
- Mini pressure vessel and stainless steel tank fabrication
- Cylindrical workpiece polishing and flaw detection
Frequently Asked Questions
Q: What cylinder sizes does the 5 ton rotator support?
A: It adapts cylinder diameters from 250mm to 2800mm, suitable for small boilers and tanks.
Q: Will PU rollers damage stainless steel surfaces?
A: No, high-elastic PU rollers protect polished and painted workpieces without scratches.
Q: Is the rotation speed adjustable?
A: Yes, 0.3-3r/min stepless speed regulation for different welding processes.
Q: Can you customize local industrial voltage?
A: Global voltage customization (380V/415V/460V) is fully supported.
Q: Does it support wireless operation?
A: Equipped with wireless remote control for flexible field operation.
Tip: Share your workpiece diameter, weight and local voltage, we will provide the most matching rotator configuration and exact quotation immediately.
