28mm Standard Hole D28 Modular Welding Table Quick Fixture Positioning
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,T/T,D/P,Western Union |
| Supply Capacity: | 500 units/month |
28mm modular welding table
,D28 welding fixture table
,quick fixture positioning table

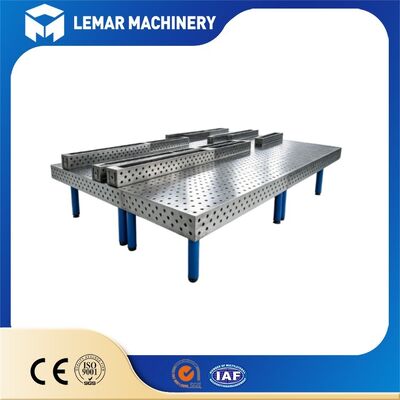

Traditional welding workshops waste massive time and cost on custom fixed jigs, long lead times, inaccurate positioning and repeated rework. Our D28 28mm Standard Hole Modular Welding Table Quick Fixture Positioning System completely solves these pain points.
Adopting global universal D28 industrial standard (Φ28mm holes, 100mm×100mm grid), full 5-sided 3D machining, high-precision hole positioning and full modular interchangeable fixtures. All clamps, positioning pins, angle blocks and supports can be freely combined and quickly locked, realizing one platform for all workpieces.
Suitable for heavy steel structure, chassis, frame, cabinet, pipe, aluminum profile and robotic welding workstation. Greatly improve welding accuracy, consistency and production efficiency.
| No. | Name | Material | Specification | Product Weight (kg) | Treatment Method |
|---|---|---|---|---|---|
| 1 | Steel 3D welding table/Cast Iron welding table | steel | 1000x1000x200 | 322.00 | Nitriding treatment/CNC machining/CNC engraved ruler |
| 2 | steel | 1200x1200x200 | 427.00 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 3 | steel | 1500x1000x200 | 483.00 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 4 | steel | 1500x1500x200 | 676.00 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 5 | steel | 2000x1000x200 | 598.00 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 6 | steel | 2000x1500x200 | 897.00 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 7 | steel | 2400x1200x200 | 816.00 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 8 | steel | 3000x1500x200 | 1285.00 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 9 | steel | 2000x2000x200 | 1169.00 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 10 | steel | 2000x3000x200 | 1760.00 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 11 | steel | 4000x2000x200 | 2150.00 | Nitriding treatment/CNC machining/CNC engraved ruler |
- 100% Global D28 Standard Compatibility - Fully compliant with European D28 industrial standard (28mm hole / 100mm grid). All fixtures are universally interchangeable with international mainstream brands. No compatibility risks, easy replacement and future expansion.
- 70% Faster Fixture Setup & Zero Custom Jigs - No more cutting, drilling or custom welded jigs. Modular quick-lock positioning allows full jig assembly in 5-10 minutes. Perfect for multi-style, small-batch and frequent-change production.
- Five-Sided 3D Full Stereo Positioning - Top surface + four vertical sides all feature standard 28mm holes. Support X/Y/Z three-dimensional multi-angle clamping, covering flat welding, vertical welding, inclined assembly and multi-layer frame production.
- Ultra-High Repeat Welding Precision - CNC milled full grid with hole tolerance ±0.03mm and table flatness ≤0.1mm/1000mm. Repeat positioning accuracy reaches ±0.02mm, ensuring identical workpiece dimensions for mass production and minimizing rework.
- Heavy-Duty Load Anti-Deformation Structure - Integrated box-type rib structure with secondary stress relief treatment. Load capacity up to 2-5 tons per square meter. Effectively resist welding thermal deformation, no warping after years of high-temperature continuous work.
- Nitrided Anti-Slag & Rust-Proof Surface - Whole welding table ion nitrided with surface hardness HV450-700. Strong resistance to welding spatter, high-temperature corrosion and daily abrasion. No paint peeling, no rust, long service life for harsh workshop environments.
- Full Modular & Infinite Expandability - All fixtures are freely combinable, detachable and reusable. Tables can be spliced infinitely for oversized workpieces. One platform adapts frames, cabinets, pipes, aluminum profiles and robotic welding lines.
- Significant Factory Cost Reduction - Save 80% of custom jig manufacturing costs and warehouse space. Reduce fixture worker labor time and welding rework rate. One-time investment brings long-term high return for welding factories.
Stainless steel tabletop: Material suitable for sanitary welding of food-grade and pharmaceutical equipment;
Mobile caster base and hydraulic lifting stand;
Customized specialized fixtures: Positioning blocks designed for irregular bent tubes and aluminum alloy profiles;
Safety mesh guard, weld spatter collection tray, and explosion-proof grounding device.
Do not stack heavy workpieces beyond the rated load capacity to prevent deformation of the table surface due to prolonged pressure;
Ensure locking pins are fully engaged before welding to prevent the workpiece from ejecting during the process;
Avoid prolonged exposure of the same spot to high-temperature welding spatter; apply heat-resistant protective film if extended welding is required;
Wear protective gloves when handling fixtures with sharp edges; do not place hands in the clamping zone during heavy-duty clamping operations;
Lock the connecting pins securely when joining welding tables; do not lift or transport the assembly unless it is fully secured.
