Standard Welding Table D28 Hole System 2D Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Table Material:
S355JR Steel Plate / HT300 Gray Cast Iron
Surface Treatment:
Nitriding
Grid Spacing:
100×100mm Standard Grid
Flatness Grade:
≤0.1mm/1000mm
Custom Size:
Available
Trade Term Support:
EXW, FOB, CIF, CFR, DDP
Positioning Tolerance:
±0.05mm
Structure Type:
2D (Only Top Surface With Positioning Holes, Four Sides Smooth)
Surface Roughness:
Ra3.2, Smooth For Jig Sliding
Highlight:
Standard Welding Table D28 Hole System
,2D Welding Table with D28 holes
,Welding Fixture Table D28 Hole System
Product Description

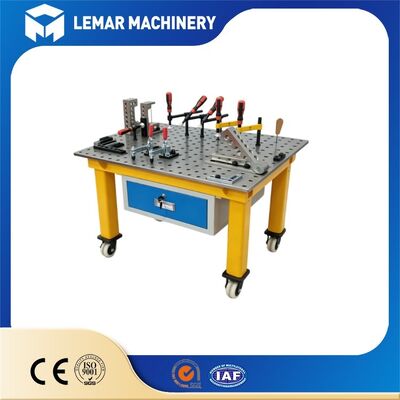

Standard Welding Table D28 Hole System 2D Welding Table
The D28 2D Welding Table is a cost-effective, high-precision modular welding platform designed for flat welding, sheet metal fabrication, frame production and general workshop welding jobs. Adopting the international standard System 28 hole system (Φ28mm holes, 100×100mm grid), this 2D welding worktable provides accurate repeat positioning, excellent flatness and strong load capacity.Different from 3D welding tables, the 2D version only features hole grids on the top working surface, delivering the same high precision with lower cost, lighter weight and easier maintenance. It is the best entry-level standard welding platform for small and medium factories, repair shops and batch flat welding production lines.
2D vs 3D D28 Welding Table Comparison
| Item | 2D D28 Welding Table | 3D D28 Welding Table |
|---|---|---|
| Hole Distribution | Only top surface holed | 5-sided full holes (top + 4 sides) |
| Working Dimension | X / Y plane flat welding | X / Y / Z 3D stereo clamping |
| Cost | Lowest, economic version | Higher, heavy industrial version |
| Weight | Light, easy transport | Heavy, super rigid |
| Best For | Sheet metal, flat frame, simple structure, workshop repair | Chassis, cabinet, frame, robotic welding, complex structures |
Product Advantages
- Flexible and modular - eliminates the need for dedicated tooling. Compatible with standard D28 fixture sets (including quick-locking pins, positioning stops, angle blocks, toggle clamps, and extension supports); a single workbench can accommodate dozens of different products, eliminating the need to fabricate individual welding jigs for each part and significantly reducing production costs.
- Stable dimensional accuracy - zero-rework welding. Features a high-precision grid reference system that minimizes workpiece repositioning errors, ensuring consistent dimensions across batch welding and reducing the need for post-weld correction or grinding.
- Durable and easy to maintain - Nitrided surface resists weld spatter, requiring only simple daily cleaning; reinforced base structure ensures the table remains undeformed despite years of exposure to high welding temperatures and heavy loads.
- Expandable via modular connection - Standard welding table sizes include 1000×1000, 1500×1000, 2000×1000, and 3000×1500 mm; multiple units can be joined using positioning pins to create large-scale platforms for welding oversized or extra-long components.
Accuracy Inspection Standards
- Hole Pattern Precision - Hole diameter: Φ28H7; grid spacing: 100mm ± 0.05mm; cumulative diagonal hole spacing error: ≤0.1mm/m
- Flatness Grades - Standard industrial grade: ≤0.3mm/1000mm (general steel structures, maintenance workshops); Precision robotic grade: ≤0.1mm/1000mm (automated production lines, precision frames)
- Reference Surface Perpendicularity - Perpendicularity error between the top surface and side edges: ≤0.1mm/200mm
- Surface Roughness - Ra 3.2; smooth movement of fixtures (no snagging or burrs)
- Load-Bearing Test - Uniformly distributed load test; rated for 2-3 tons sustained for 24 hours with no deformation or spring-back
Product Certification
- CE Machinery Safety Certification - Mandatory certification for the EU market; compliant with the EN ISO 12100 machinery safety standard; CE certificates available for both the complete machine and the fixtures.
- Material Inspection Report - Spectroscopic analysis report for S355/HT300 materials.
- Factory accuracy inspection report, packing list, commercial invoice, and Certificate of Origin.
- ISO 9001 factory system certification; supports third-party inspections (SGS/IAF).
FAQ
Q: Can I print brand logo on table?
A: Support laser engraving logo on working surface.
Q: How long is production lead time?
A: Small order 7-15 days, bulk order 20-25 days.
Q: What trade terms can you offer?
A: EXW, FOB, CFR, CIF, DDP door-to-door service.
Q: 2D or 3D welding table, which one to pick?
A: 2D for flat workpieces, cheaper; 3D for 3D stereo complex welding.
Q: How do you pack the tables for export?
A: Fumigated solid wooden case with shockproof padding.
