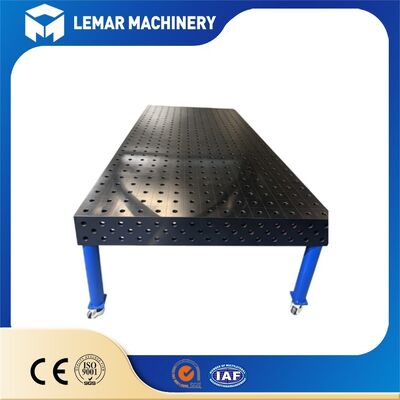

Flexible Splicing D28 3D Welding Table For Extra Large Metal Component Welding
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Flexible Splicing D28 welding table
,3D welding table for metal components
,Extra large welding fixture table
If you are searching for a reliable platform for oversized metal fabrication, our Flexible Splicing D28 3D Welding Table For Extra Large Metal Component Welding is your optimal choice.
This modular splicable D28 3D welding table supports free extension of working dimensions via panel splicing, comes with accurate D28 100mm hole pitch for full 3D multi-direction clamping, and offers strong load capacity and anti-spatter nitrided surface. It perfectly matches the welding demands of aluminum yacht frames, heavy truck frames and various extra large metal structural parts.
| Item | Specification |
|---|---|
| Standard Table Sizes (Single Panel) | 1000×1000mm / 1500×1000mm / 2000×1000mm / 3000×1500mm |
| Splicing Capability | Unlimited length & width extension, customizable 2m-20m ultra-large platform |
| Hole System Standard | D28 (Φ28mm standard hole) |
| Hole Spacing | 100mm × 100mm grid, tolerance ±0.05mm |
| Clamping Structure | 5-sided full perforation (top + four vertical sides), 3D omnidirectional clamping |
| Tabletop Thickness | 25mm standard / 30mm / 35mm reinforced optional |
| Material Option | HT300 Stress-relieved Cast Iron / Q355 High-strength Steel |
| Surface Treatment | Overall gas nitriding hardening, HV380-450 hardness, anti-spatter & anti-rust |
| Flatness Accuracy | ≤0.3mm / 1000mm |
| Verticality Tolerance | ≤0.1mm / 200mm |
| Single Panel Load Capacity | 10 tons uniform load |
| Support System | Fixed legs / Movable brake casters with ±20mm height adjustment |
| Compatible Fixtures | Full universal D28 standard fixture system |
| Application | Extra-large metal structures, aluminum boat frames, truck chassis, mechanical frames |
| Certification | CE compliant, full factory inspection report provided |
Standard welding tables have limited lengths, making it impossible to fully position workpieces spanning several meters—such as ship frames, trailer main beams, or large aluminum boat skeletons. By joining multiple D28 welding tables to form a seamless, extra-long reference surface, the entire workpiece can be clamped and welded in a single setup; this eliminates the need for segmented re-alignment and significantly reduces dimensional errors.
Tables can be detached for independent use when handling smaller workpieces and combined for larger ones. This eliminates the need for a fixed, custom-built monolithic platform, thereby reducing factory floor space requirements and equipment procurement costs.
All table plates feature standardized hole patterns, ensuring a continuous grid without misalignment when joined. Fixtures and positioning blocks can be used interchangeably across tables, eliminating the need for custom-made tooling.
- Aluminum Alloy Frames for Ships/Yachts: Assembly and welding of aluminum hulls, keels, and deck frameworks
- Rail Transit/Construction Machinery: Excavator arms, trailer frames, container skeletons, and tower crane steel structures
- Heavy Steel Structure Projects: Power transmission towers, large-scale stage trusses, and equipment bases
- Specialized Vehicles: RV chassis, dump truck main beams, and large agricultural machinery frames
We provide long-term after-sales support, including installation guidance, technical training, and lifetime accessory matching. All products enjoy stable quality assurance, helping customers achieve high-efficiency and low-cost long-term production.
Submit your information to get in touch with us.
Please note when sending inquiry:
I need a table size: ______ mm × ______ mm,
mainly used for welding ________ (workpiece type).
Enhance your welding efficiency by using our D28 Welding Table!
Contact Amy directly for more details.
