100kg CNC Welding Positioner Rotary Turning Table for Pipe Vessel Circular Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-1
Document
Model NO.:
BWJ-1
Max Eccentricity Distance:
150mm
Voltage:
110V/220V
Function:
Pipe Flange Welding Turning Table
Horizontal Loading Weight:
100kg
Rotation Speed:
0.5-5rpm
Worktable Diameter:
400mm
Speed Mode:
AC Frequency
Exported To:
AC Frequency Colour Customized Exported To USA, UK, Canada, Greece, Poland, Brazil
Highlight:
100kg CNC welding positioner
,rotary turning table for pipe welding
,welding positioner for circular welding
Product Description

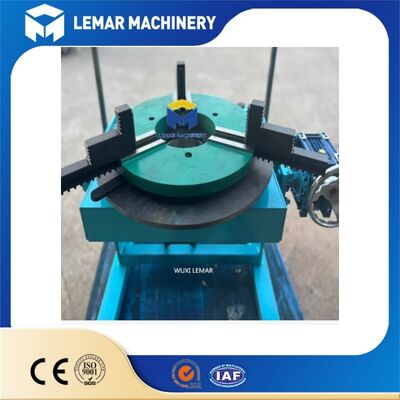

100kg CNC Welding Positioner Rotary Turning Table for Pipe Vessel Circular Welding
Product Overview
This 100kg welding positioner is compact benchtop rotary equipment specially designed for small & medium metal fabrication workshops. It rotates and tilts workpieces to flat down-hand welding position automatically, replacing manual workpiece flipping. It delivers consistent circular welds, cuts labor cost and reduces weld repair work, widely used for pipe flanges, small pressure vessels, valve bodies and tubular structural parts.
Technical Parameters
| Item | Specification |
|---|---|
| Model | BWJ-100 |
| Max Horizontal Load | 100kg |
| Max Vertical Load | 50kg |
| Worktable Diameter | 400mm |
| Central Through-hole Diameter | 65mm |
| Tilting Angle Range | 0°-90° |
| Rotation Speed | 0.1-1 r/min stepless adjustable |
| Drive Motor | 120W DC stepper motor |
| Input Voltage | AC 110V/220V, 50/60Hz |
| Control Method | Digital control box + foot pedal switch |
| Overall Weight | 70kg |
| Warranty | 12 months |
Core Advantages
- Stable Weld Quality: Worm gear self-locking tilt structure + stepless constant rotation speed, keep uniform welding bead for all circumferential seams, lower inspection rework rate. Anti-electromagnetic interference circuit ensures clean TIG welding without arc jumping.
- Labor & Space Saving: Compact floor layout, single operator completes workpiece rotation without overhead crane assistance; foot pedal control frees hands for welding operation.
- Wide Compatibility: 400mm large worktable with multiple mounting slots, optional 3-jaw chuck, torch holder and pneumatic tailstock. Central through-hole allows long pipes pass through for full-length pipe welding.
- Flexible Control System: Two control modes: standard digital display controller & upgraded CNC touch screen. Support angle memory, timing rotation and linkage function with welding machine.
- Global Voltage Customization: Dual voltage 110V/220V 50/60Hz optional, fit US, Europe, Southeast Asia and Latin America workshop power standards.
Optional Accessories
- 3-jaw self-centering welding chuck (WP200)
- Adjustable pneumatic torch holder bracket
- Pneumatic tailstock for long pipe clamping
- CNC touch screen programmable controller
- Welding ground slip ring for high current welding
Transportation and Packaging
Frequently Asked Questions
Q1: Can this positioner work with TIG welding machine?
A1: Yes, built-in anti-high frequency interference circuit, perfectly compatible with MIG, MMA and TIG welding.
Q2: Is foot pedal included in standard package?
A2: Foot pedal switch is standard equipped for free.
Q3: Can I get CNC touch screen version?
A3: CNC programmable controller is available as optional upgrade.
Q4: What's the delivery port?
A4: Shanghai or Ningbo port, door-to-door inland truck service available upon request.
