500mm Longitudinal Seam Welder for Stainless Steel Tank & Tube
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 100.00cm * 80.00cm * 120.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
Zfh500
Document
ZFH500 Frequency Range High Frequency View More Shipping Shipping Cost: Contact The Supplier About:
Zfh500
Frequency Range:
High Frequency
Welding Stroke:
500mm
Control Mode:
PLC Touch Screen Automatic Control
Clamping Mode:
Pneumatic Driving
Travel Drive:
Servo Motor + Linear Guide Rail
Mandrel Cooling:
Circulating Water Cooling Mandrel
Workpiece Material:
Carbon Steel, Stainless Steel
Cooling Way:
Air Cooling
Highlight:
500mm stainless steel seam welder
,longitudinal tube welding machine
,stainless steel tank welder
Product Description

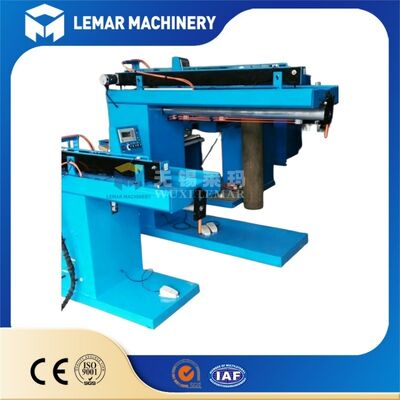

500mm Longitudinal Seam Welder for Stainless Steel Tank & Tube
ZF500 plasma longitudinal seam welder is specially designed for automatic straight seam welding of metal cylinders, stainless steel tanks, thin-wall pipes and metal shells with maximum 500mm welding length. Compatible with plasma, TIG and MIG welding power sources, equipped with full PLC English control system and piano-key clamping fixture to ensure zero gap during welding, smooth and uniform weld bead without deformation. As direct factory, we provide fast delivery, global voltage customization and one-stop after-sales support for metal fabrication workshops worldwide. Main Technical Parameters
| Item | Specification |
|---|---|
| Model | ZF500 Plasma Straight Seam Welder |
| Max Welding Length | 500mm |
| Applicable Workpiece Diameter | Φ70-800mm |
| Welding Thickness Range | 0.5-3.0mm thin metal plate |
| Welding Mode | Plasma / TIG / MIG optional |
| Control System | PLC Touch Screen, English interface |
| Travel Drive | Servo motor, speed adjustable 0.1-3m/min |
| Clamping Type | Piano-key copper alloy fixture |
| Control Power | Single phase 220V 50/60Hz |
| Welding Power Input | 3 Phase 380V (custom 460V for North America) |
| Protection Class | IP23 |
| Certificate | CE, ISO9001 |
| Packing Way | Export plywood wooden case |
Our Factory Advantages
- One-stop welding automation supplier: We produce full series welding equipment including seam welders, rotators, positioners, CNC plasma cutters and H-beam production line, supporting complete workshop matching solutions.
- Fast stable delivery cycle: Standard ZF500 model with semi-finished stock, lead time only 10-15 days, accepting single unit trial orders without strict MOQ.
- Global market customized configuration: All machines support 460V/60Hz US standard voltage pre-installed, complete CE certification, reserved remote debugging function for overseas after-sales.
- Integrated linkage design & low maintenance cost: Precision machining frame, imported servo & electrical components, long service life with few wearing spare parts.
- 24/7 cross-time zone technical support: Sales & engineer team online via WhatsApp & email to serve clients from America, Europe, Middle East and Southeast Asia, fast spare parts global shipment.
Application Scope
- Stainless steel water tanks, pressure vessel small cylinder shells
- Metal tubular parts, heat exchanger thin barrels
- Fire extinguisher shell, sanitary stainless steel tube
- Kitchen metal containers, filter cylinder, air duct parts
- Hardware thin-wall cylindrical products for metal fabrication factory
After-sales Service
- 1 year whole machine warranty, lifetime technical consultation
- Free operation manual & factory running video in English
- Remote online debugging & parameter guidance 24/7
- Spare parts stocked for fast delivery within 7 working days
Frequently Asked Questions
Can I customize longer welding length than 500mm?
Yes, we can customize 300mm-2000mm longitudinal seam welder according to your workpiece size.
Does the machine support US 460V 60Hz power supply?
All machines can be pre-configured with 460V/60Hz industrial voltage before shipment, no extra modification cost.
What metal material can this plasma seam welder process?
Suitable for stainless steel, carbon steel, aluminum alloy thin wall cylinder & shell parts.
Is small trial order acceptable?
We welcome single unit sample order for your factory test, no minimum quantity limit.
Can you provide customized production layout drawing for my workshop?
Free workshop layout design and production efficiency calculation provided once you share your workshop dimension.
