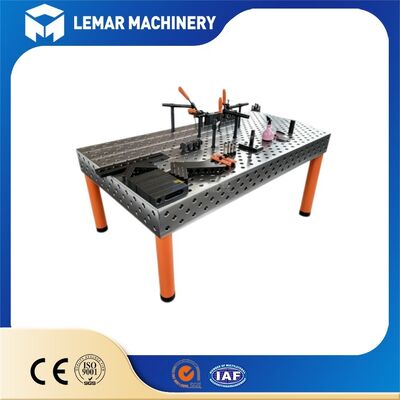

D28 3D Welding Table with Tooling Kits for Metal Welding Work
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,T/T,D/P,Western Union |
| Supply Capacity: | 500 units/month |
3D welding table with tooling kits
,welding fixture table for metal work
,D28 welding table with warranty
The D28 3D Welding Table is a professional modular welding workbench designed for modern metal fabrication, structural welding, and custom metal assembly. Unlike traditional 2D flat welding tables, this D28 3D table provides full 5-sided three-dimensional positioning, allowing clamping, fixing, and assembling workpieces from top, bottom, left, right, and vertical sides.
Equipped with a full set of standard D28 tooling kits, the workbench supports fast fixture combination, zero custom tooling cost, and ultra-precise repetitive positioning. It is widely used in automotive frames, mechanical engineering, steel structure fabrication, pipeline welding, and new energy equipment manufacturing.
Available in HT300 cast iron and Q355 steel welded versions to meet light-precision and super-heavy load working scenarios.
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
| Comparison Item | 2D Welding Table | 3D Welding Table |
|---|---|---|
| Degrees of Freedom | Only horizontal fixation | X/Y/Z three-axis adjustable, multi-angle welding |
| Suitable Workpieces | Flat or simple three-dimensional workpieces | Complex curved surfaces, irregular structures |
| Efficiency | Suitable for batch welding at single angles | Reduces repeated clamping time |
| Cost | Lower | Higher |
According to customers' diverse processing and production needs, we configure matched tooling kit solutions separately. Reach out to us for the complete fixture specification sheet to select a suitable kit matching your 3D Welding Table.
- D28 Precision Hole Grid - Standard 28mm holes with 100×100mm spacing allow universal compatibility with most modular fixturing accessories.
- Cast Iron Construction - Provides excellent vibration dampening, thermal stability, and resistance to weld spatter, ensuring flatness and long-term accuracy.
- Large Work Surface - Accommodates oversized assemblies while maintaining a flatness tolerance within ±0.5mm over the entire table.
- Complete Clamp Kit Included - Comes with locking clamps, positioning stops, and mounting bolts to start welding projects immediately.
- Modular & Expandable - Multiple tables can be joined side by side or at right angles for large jigs and production lines.
- Open Underside Design - Allows easy access for clamping from below and efficient removal of slag and debris.
- Eliminates costs for custom tooling - Traditional methods require fabricating unique fixtures for each workpiece, whereas D28 modular fixtures are reusable, paying for themselves after just three production runs.
- Reduces labor costs - Fixture setup time is cut by 70%; no specialized toolmakers are needed.
- Lowers scrap rates - Standardized positioning minimizes dimensional errors and welding-induced deformation, reducing rework by 60%.
- Saves storage space - Modular fixtures occupy only one-fifth of the space required for traditional fixed tooling.
- One-time investment with long-term reusability - Reduces total production costs by 30%-55% over five years.
Fully flexible. All D28-standard accessories including vertical clamps, horizontal clamps, angle brackets, V-blocks, adjustable supports and locking pins can be freely combined. You can customize different fixture layouts according to flat plates, round tubes, square tubes and special-shaped workpieces.
Very stable. Equipped with professional splicing connectors, multiple D28 tables can be seamlessly combined into one large working platform. The overall flatness is well controlled, and the hole system remains fully connected. It is the perfect solution for oversized workpieces such as large frames, trailers and steel structures.
No. The holes are precision-machined and deep-nitrided with high hardness and wear resistance. Standard locking pins fit tightly with the holes without gaps. Even after long-term repeated clamping and disassembly, the positioning accuracy remains stable without loosening or shaking.
All welding tables undergo strict flatness testing, hole position detection, stress relief inspection and surface hardness testing before shipment. We provide complete quality inspection reports, material certificates and CE documents to ensure industrial-grade quality for global customers.
Yes. Different welding projects require different fixture combinations. We provide one-stop customized tooling solutions based on your workpiece types, sizes and production needs. Contact us to get a tailored tooling kit list that perfectly matches your D28 welding table.
Please note when sending inquiry:
I need a platform size: ______ mm × ______ mm,
mainly used for welding ________ (workpiece type).
Enhance your welding efficiency by using our D28 3D Welding Table with Tooling Kits for Metal Welding Work!
Contact Amy directly for more details.
