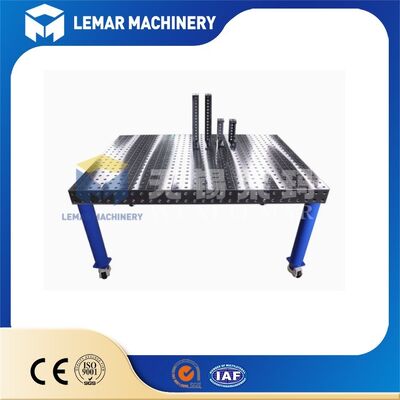

2500*1500mm D16 3D Cast Table for Welding Processing Welding Tables
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI ,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Material:
HT300 Integral Cast Iron
Overall Dimension:
2500mm × 1500mm
Side Height:
100/150mm
Grid Spacing:
50×50mm
Surface Treatment:
Full Ion Nitriding
Hardness:
HV450-HV700
Flatness Tolerance:
≤0.1mm/1000mm
Static Load:
2 Tons Per Square Meter
Feature:
Vibration Absorption, Anti-deformation, Anti-spatter, 3D Omni-directional Clamping
Highlight:
2500x1500mm welding table
,D16 3D cast welding table
,welding fixture table with cast surface
Product Description
2500*1500mm D16 3D Cast Table for Welding Processing Welding Tables
Our 2500*1500mm D16 3D cast welding table is a heavy-duty flexible processing workbench specially designed for precision welding, sheet metal assembly, framing and robotic welding stations. Made of one-piece cast HT300 gray cast iron without any splicing welds, this 3D welding table features holes on the top and four vertical sides to realize full three-dimensional positioning.
The 2500×1500 large working surface matches D16 50mm dense grid system, which can clamp small thin-wall parts, aluminum frames and special-shaped components without positioning blind spots. Multiple tables can be seamlessly spliced to build long welding production lines, widely used in small-batch multi-variable production workshops.
Product Technical Specifications
| Item | Parameter |
|---|---|
| Overall Size | 2500mm (L) × 1500mm (W) |
| Standard Hole Type | D16, Hole Diameter Φ16mm |
| Grid Pitch | 50mm × 50mm Standard Mesh |
| Side Height | 100mm/150mm (3D full side drilling) |
| Raw Material | Integral Cast HT300 Gray Cast Iron |
| Table Thickness | 16mm, Reinforced Ribs at Bottom |
| Surface Treatment | Whole Ion Nitriding |
Size Compatibility Advantage
- Features an extra-large continuous working surface (2.5m × 1.5m), ideal for medium-sized frames, racks, sheet metal enclosures, and robotic welding stations
- Multiple tables of the same specification can be seamlessly joined to create extended welding assembly lines of 4m or 6m
- Utilizes a D16 grid pattern with 50mm hole spacing, allowing for convenient clamping of small, irregularly shaped, and precision thin-walled components with no positioning blind spots
- Compared to heavy-duty D28 welding tables, this system is lighter and uses lower-cost fixtures, making it well-suited for precision light-to-medium-duty welding applications
Core Features
- Comprehensive 3D Clamping: The top surface and all four vertical sides feature a grid of standard holes. When used with locating pins, quick-action clamps, right-angle supports, and height blocks, they allow for the secure clamping of workpieces at horizontal, vertical, or angled positions (30°, 45°, or 90°) without the need for custom-made fixtures.
- Flexible and Modular: A Substitute for Dedicated Fixtures - A single welding table combined with universal standard accessories enables the processing of dozens of different workpiece specifications, significantly saving time and costs associated with fixture fabrication for high-mix, low-volume production.
- Deformation Prevention and Dimensional Consistency in Welding: The reference surface offers stable precision, ensuring highly consistent dimensional accuracy across batch-produced workpieces and reducing the need for rework or corrective adjustments.
- Multifunctional Workstation: Beyond welding, the system supports sheet metal fit-up, drilling, assembly, inspection, and marking, offering versatile, multi-purpose functionality.
FAQ
Do you support OEM branding and custom specifications?
Yes. We offer laser logo engraving, customized table height, special base structure and non-standard size production to fit your brand and workshop requirements.
Do you provide full export documents for customs clearance?
Yes. We supply complete export certification packages including CE, ISO9001, material test reports and factory inspection documents to support global customs clearance.
What shipping terms do you support?
We support EXW, FOB, CIF and DDP. We provide seaworthy fumigated wooden packaging for safe long-distance ocean and railway transportation.
Why is cast iron table better for overseas industrial users?
Cast iron tables maintain stable precision for many years with low maintenance cost. Compared with steel tables, they avoid frequent deformation, rework and replacement, bringing lower overall operating cost for factories.
What is your warranty and after-sales policy?
We provide 2 years structural warranty and lifelong technical support. Precision grinding and repair services are available to extend the table's service life for decades.
If you are looking for a reliable 2500*1500mm D16 3D Cast Table for Welding Processing to upgrade your welding workshop and cut fixture costs, feel free to send your workpiece info and workshop demands via inquiry. Our technical team will offer a tailored solution and competitive factory quotation within 24 hours.
