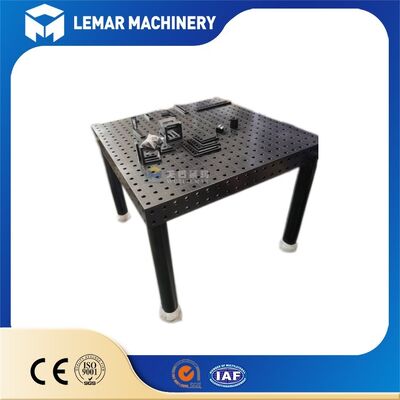

High Precision Nitrided Cast Iron D16 Metal Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
High Precision Nitrided Cast Iron Welding Table
,D16 Metal Welding Fixture Table
,Nitrided Cast Iron Welding Table with Warranty
Our high precision nitrided cast iron D16 welding table adopts stress-relieved HT300 cast iron with full gas nitriding treatment. Equipped with universal 50×50mm D16 five-sided hole system, it delivers stable flatness, excellent wear and spatter resistance. Perfect for precision metal fabrication and robotic welding with full modular fixture compatibility.
Stress-relieved cast iron D16 welding table with gas nitrided surface, 0.1mm/m high flatness, 50×50mm grid 3D positioning, ideal for precision workshop and automatic robotic welding lines.
| Dimensions (L×W mm) | Hole Standard | Hole Inner Diameter | Raw Material |
|---|---|---|---|
| 1000×800 | D16, 50×50mm Grid | Φ16.065~16.149mm | HT300 Stress-relieved Cast Iron |
| 1000×1000 | D16, 50×50mm Grid | Φ16.065~16.149mm | HT300 Stress-relieved Cast Iron |
| 1000×1200 | D16, 50×50mm Grid | Φ16.065~16.149mm | HT300 Stress-relieved Cast Iron |
| 1000×1500 | D16, 50×50mm Grid | Φ16.065~16.149mm | HT300 Stress-relieved Cast Iron |
| 1000×2000 | D16, 50×50mm Grid | Φ16.065~16.149mm | HT300 Stress-relieved Cast Iron |
| 1200×2000 | D16, 50×50mm Grid | Φ16.065~16.149mm | HT300 Stress-relieved Cast Iron |
| 1200×2400 | D16, 50×50mm Grid | Φ16.065~16.149mm | HT300 Stress-relieved Cast Iron |
| 3000×1500 | D16, 50×50mm Grid | Φ16.065~16.149mm | HT300 Stress-relieved Cast Iron |
| 4000×2000 | D16, 50×50mm Grid | Φ16.065~16.149mm | HT300 Stress-relieved Cast Iron |
We offer custom manufacturing services; contact us and send your drawings to have your own bespoke 3D welding table made.
Different from cheap painting, black oxide and chrome plating surface treatment, we adopt secondary gas nitriding process for the whole tabletop and side walls:
- Pre-cleaning: Ultrasonic degreasing and high-temperature drying to remove all surface impurities to avoid soft spots on nitrided layer
- Nitriding penetration: Keep 510℃ strong nitriding + 550℃ diffusion heat preservation for 18-24 hours
- Uniform hardened layer: Total effective nitrided depth 0.25-0.4mm, surface hardness HV450-630
Key advantages of nitrided layer:
- Metallurgical combination layer, never peel or fall off under arc splash up to 1200℃
- Smooth compact surface greatly reduces spatter adhesion; cooled spatter can be knocked off lightly without grinding
- Weak magnetism avoids arc deflection, making weld seam molding neat for aluminum and stainless steel workpieces
- 48-hour salt spray resistance, no rust in humid coastal workshops without daily oil maintenance
Every single welding table undergoes full inspection before shipment, with complete test documents provided for customers:
- Flatness test by marble standard ruler & dial indicator
- Verticality detection of side walls
- Hole position accuracy sampling test via CMM three-coordinate measuring instrument
- Hardness & nitrided layer depth metallographic inspection
- 24-hour uniform load compression test to verify no permanent deformation
- Full appearance inspection for sand holes, burrs and nitriding color difference
Attached documents: Material certificate, heat treatment report, precision inspection sheet, CE certification, ISO9001 quality file.
Looking for stable precision welding platforms for your robotic production line or prototype workshop? Send us your demand below:
- Required table dimension
- Load demand & supporting base type
- Matching fixture quantity needs
- Destination port & trade term (FOB / CIF/ EXW / DDP)
Our professional engineer team will reply you with detailed quotation, parameter sheet and fixture matching plan within 24 hours.
