2000mm Longitudinal Seam Welding Machine for Pressure Vessel & Large Tank
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 100.00cm * 80.00cm * 120.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
2000mm longitudinal seam welder
,pressure vessel welding machine
,large tank seam welder

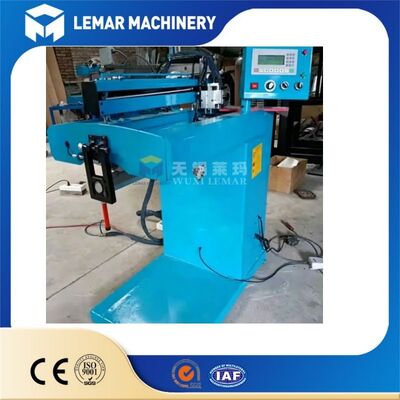

ZF2000 longitudinal straight seam welding machine is our heavy-duty model with 2000mm full effective welding length, specially developed for large, thick-wall cylindrical workpieces like pressure vessels and chemical storage tanks.
Built with reinforced thick steel beam for stable long-stroke operation, matched with full 2000mm water cooling copper fixture to eliminate thick plate thermal deformation.
Equipped with PLC automatic control and independent back argon protection, compatible with multi-type welding power sources to deliver high-quality welds for heavy industrial production.
- Reinforced thick cast steel welding beam
- 2000mm full-length water cooling piano-key clamping system
- High precision linear guide + high torque variable speed driving motor
- 7-inch industrial touch PLC control cabinet
- Three-dimensional manual fine-tuning welding torch bracket
- Separated argon pipeline for weld back protection
- Foot switch, emergency stop button, length limit positioning baffles
| Parameter Item | ZF2000 Heavy Duty Straight Seam Welder |
|---|---|
| Max Effective Welding Length | 2000mm |
| Applicable Plate Thickness | 1mm - 6mm thick metal sheet |
| Workpiece Diameter Range | Φ180mm - 800mm |
| Water Cooling Copper Pad Length | 2000mm full-length integrated cooling |
| Control System | PLC touch screen full automatic control |
| Welding Speed | Stepless adjustable |
| Custom Power Supply | 220V/380V, 50Hz/60Hz optional |
Long industrial cylinders, chemical holding tanks, boiler barrel segments, high-pressure vessels, oversized stainless steel barrels, waste water treatment tanks, wind energy component housings, heavy-duty air ducts, thick metal plate butt-joint components.
304 & 316 stainless steel, medium-thickness carbon steel, low-alloy structural steel, heavy gauge aluminum alloy sheets.
ZF2000 2000mm heavy duty longitudinal seam welder is professional equipment for large pressure vessel and thick tank production lines.
Send inquiry to get full datasheets, real welding test videos and FOB factory price. OEM & special customized configurations are available, we reply within 24 hours.
