Uniform 16mm GridHole D16 3D Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
16mm gridhole welding table
,D16 3D welding fixture
,welding table with gridhole

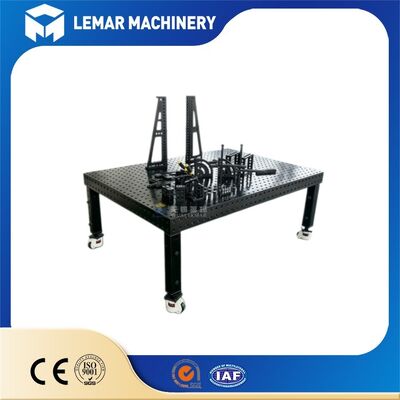

The Uniform 16mm Grid Hole D16 3D Welding Table is a professional modular welding & fixturing system engineered for high-precision light and medium metal fabrication. Featuring a standard 50×50mm uniform grid and φ16mm precision holes across the entire top and four vertical sides, this 5-sided 3D table allows multi-angle clamping, positioning, and assembly without custom jigs.
Built with stress-relieved HT300 cast iron/Q355 steel and optional nitrided hardening, the D16 welding table delivers excellent flatness, extreme wear resistance, and zero thermal deformation during long-term welding production. All D16 accessories are fully interchangeable, enabling ultra-fast jig setup, infinite workpiece positioning, and consistent batch product accuracy.
| Table Size (L×W mm) | Table Thickness (mm) | Grid Spacing |
|---|---|---|
| 1000 × 800 | 100/150 | 50×50mm ±0.05mm |
| 1000 × 1000 | 100/150 | 50×50mm ±0.05mm |
| 1000 × 1200 | 100/150 | 50×50mm ±0.05mm |
| 1000 × 1500 | 100/150 | 50×50mm ±0.05mm |
| 1000 × 2000 | 100/150 | 50×50mm ±0.05mm |
| 1200 × 2000 | 100/150 | 50×50mm ±0.05mm |
| 1200 × 2400 | 100/150 | 50×50mm ±0.05mm |
| 2000 × 2400 | 100/150 | 50×50mm ±0.05mm |
| 3000 × 1500 | 100/150 | 50×50mm ±0.05mm |
| 4000 × 2000 | 100/150 | 50×50mm ±0.05mm |
Most buyers confuse D16 and D28 systems. Here is the clear industrial selection standard:
- D16 50mm Grid - Best for thin sheet metal, aluminum frames, small tubular structures, precision cabinets, light metal furniture. Higher positioning density, no dead angles, lighter fixtures, faster manual operation, lower investment & shipping cost.
- D28 100mm Grid - Designed for thick plate, heavy machinery frames, trailer chassis, heavy structural welding. Larger load capacity but lower positioning density and higher cost.
Every D16 3D welding table undergoes triple stress relief treatment to completely eliminate processing and casting stress. One-time gantry CNC 5-sided integral machining ensures uniform grid accuracy and perfect perpendicularity. Each table is strictly inspected by laser interferometer and 3D coordinate detector, equipped with official factory inspection report and CE certification for global export.
- Enlargement of locating holes: Caused by frequent assembly/disassembly or wear on locking pins → Replace with thicker locating pins; for severe wear, return to the factory to have steel bushings inserted.
- Dents on the work surface: Caused by heavy object impact → Grind and polish minor dents; for deep dents, perform localized weld repair followed by re-scraping to restore the reference surface.
- Precision drift: Caused by insufficient aging or prolonged localized overloading → Add support points and re-perform the aging process.
Our Uniform 16mm GridHole D16 3D Welding Table offers precise flexible clamping for light fabrication jobs. Custom sizes, nitrided finish and full D16 fixture kits are available at factory prices.
